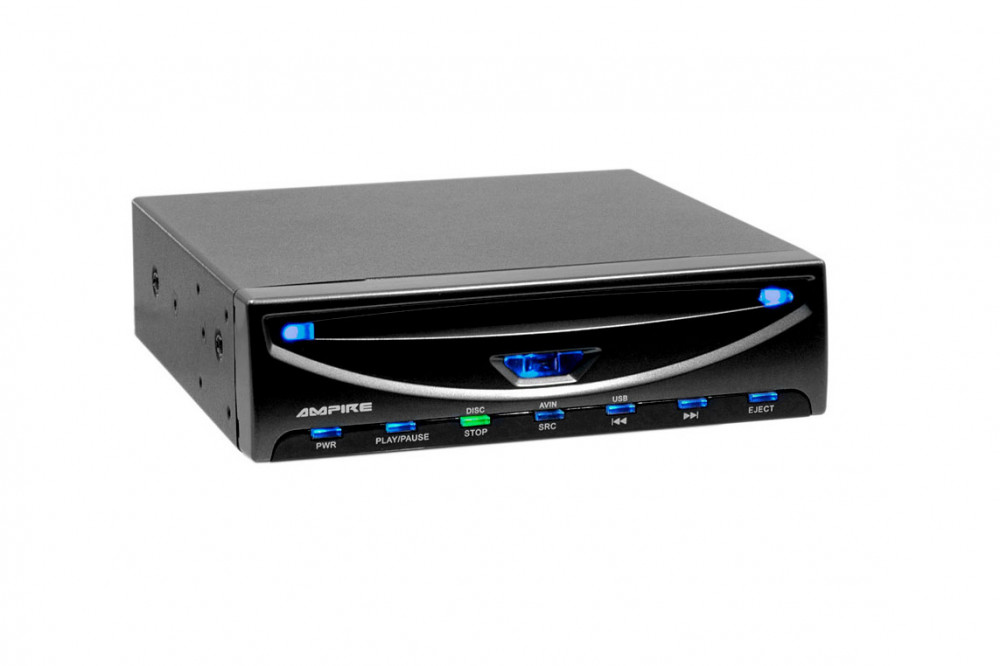

The AMPIRE DVD player with USB input (3/4 DIN) supports the formats DVD, USB, SVCD, MVCD, MSVCD, VCD1.0 and 2.0, MPEG4, WMA, CD-DA, mp3, JPEG
Domestic equipments:
- Dolby Digital Audio Format
- subtitle
- Last Position Memory in Disc mode (not MPEG4)
- Video signal 1Vp-p
- Audio Signal 6Vss (2.1V RMS)

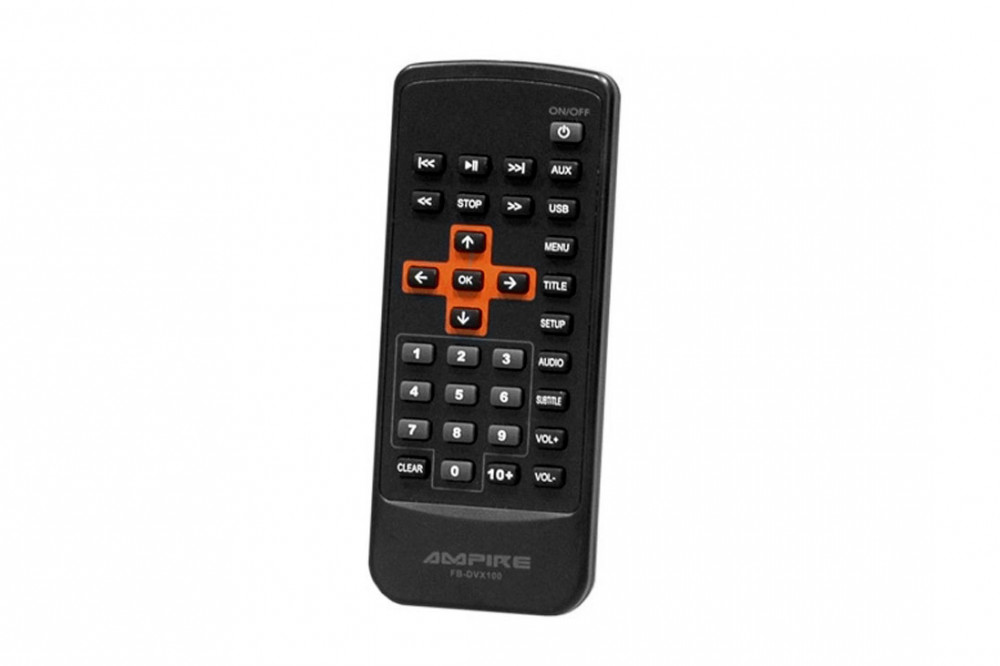

- Infrared remote
- external infrared receiver
- Mounting bracket included
- vertical and horizontal mounting position possible
- 1 AV output
- 1 USB port for USB sticks up to 8 GB and 2.5 '' hard disks up to approx. 80 GB (FAT32 formatted) (If the hard disk is not recognized, the hard disk must additionally be operated with an external power supply)
- digital DSP sound processor
- headphone jack
- blue night design
- German on-screen operating menu
- German operating / assembly instructions
- RoHS
- E-approval E8 10R-03 1242
- DVD / MPEG licensed and licensed
Technical specifications:
- Dimensions 159 x 43 mm (W x H)
- Installation depth 164 mm
- Weight 1.6 kg
- Operating voltage 12 volts DC
- Power consumption max. 15 watts
- Power consumption with ignition switched off 0 Watt (0.0 Ampère)
Additional notices:
- The assembly instructions can be downloaded from the following link: HIER
