OE number: SEI-MOT06
Weight: 0,1kg
Minitools

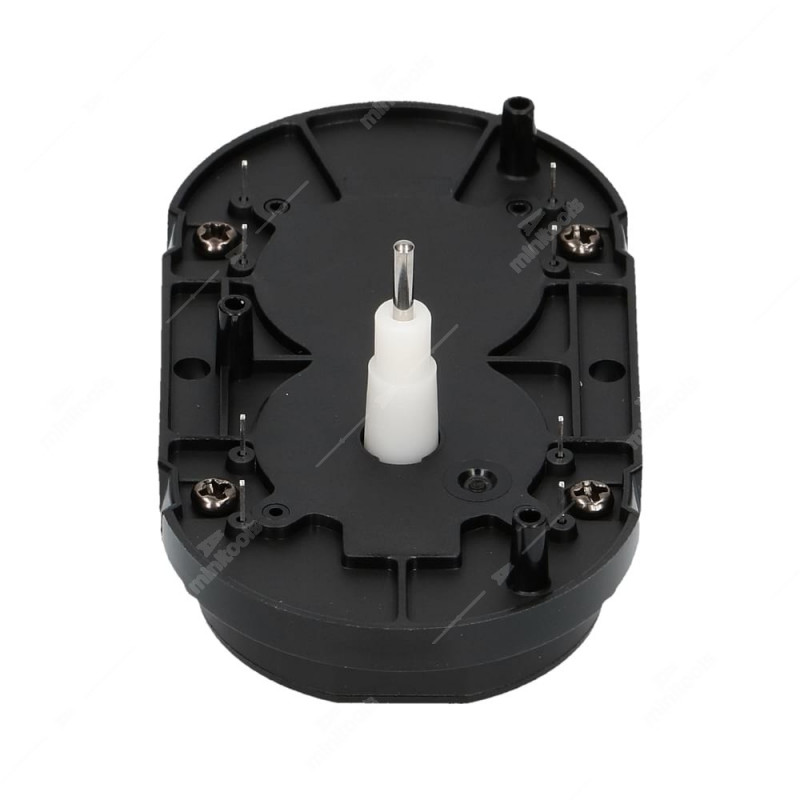

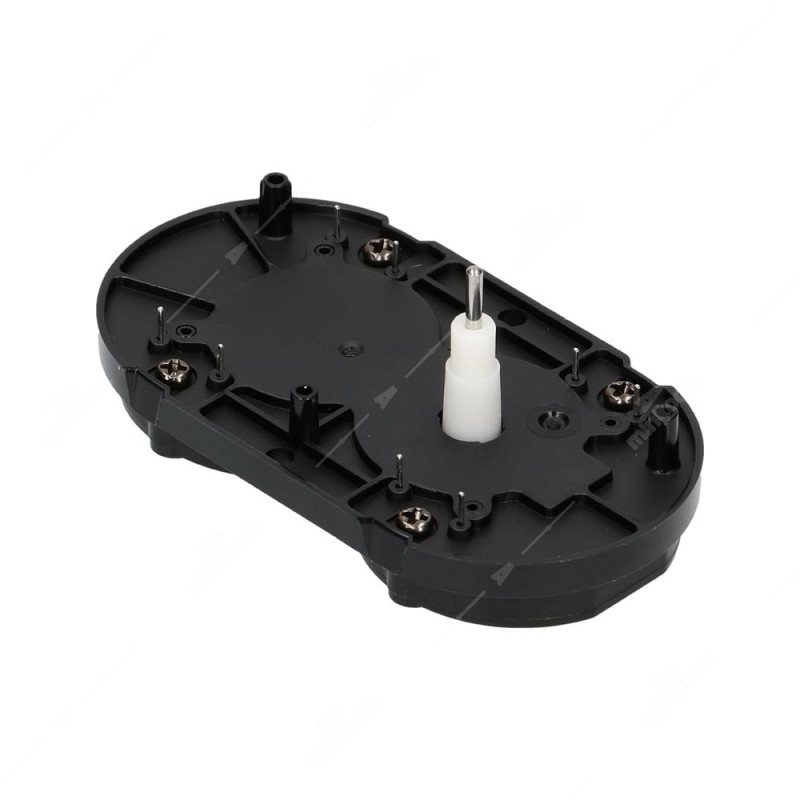

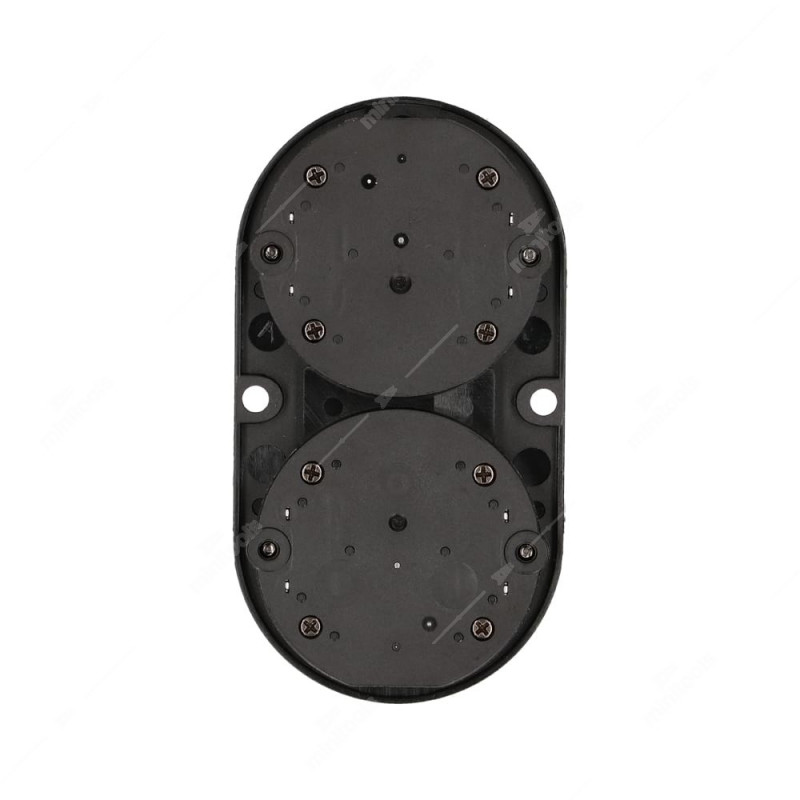

Stepper motor adaptable to the instrument clusters speed and RPM needles of:
Height | 9,2 mm |
---|---|
Producer code | VID28-05 |
Long lifetime | In 200Hz, constant working up to 5000Hrs |
Width | 35 mm |
Shaft length | 17,4 mm |
Wide working temperature | 40~105℃ |
Wide working voltage | 3.5~10V |
High speed rotation | 400°/sec of out shaft and 600°/sec of inner shaft |
