SEPDISP28P LCD Display Johnson Controls and Magneti Marelli computer boards Citroën C8, Fiat Ulysse, Lancia Phedra and Peugeot 307/407/807

Kit composed to LCD display 240x64 pixel + PCB adaptable to BORG, JOHNSON CONTROLS and MAGNETI MARELLI computer boards (multifunction display) for:

• CITROËN C8 (models from 2002 to 2014)

• FIAT ULYSSE (models from 2002 to 2010)

• LANCIA PHEDRA (models from 2002 to 2010)

• PEUGEOT 307 (models from 2003 to 2008)

• PEUGEOT 407 (models from 2004 to 2012)

• PEUGEOT 807 (models from 2002 to 2014).

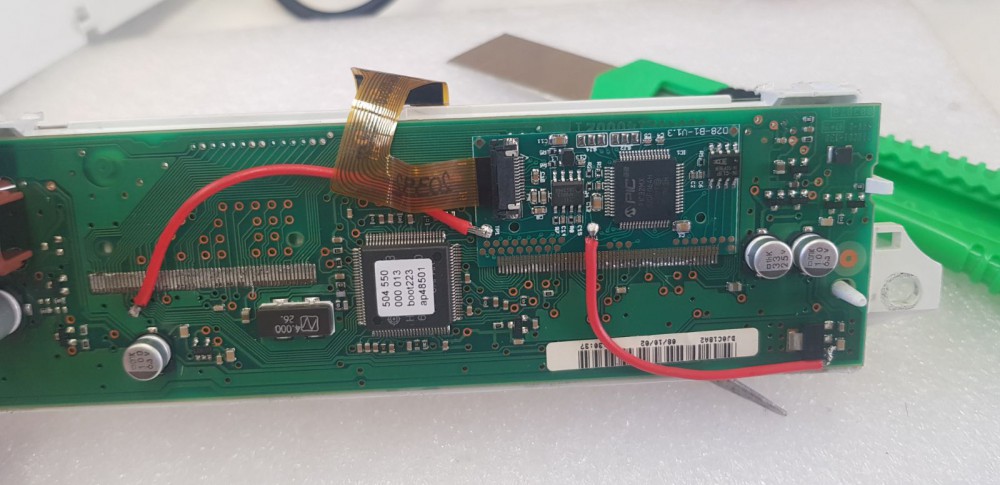

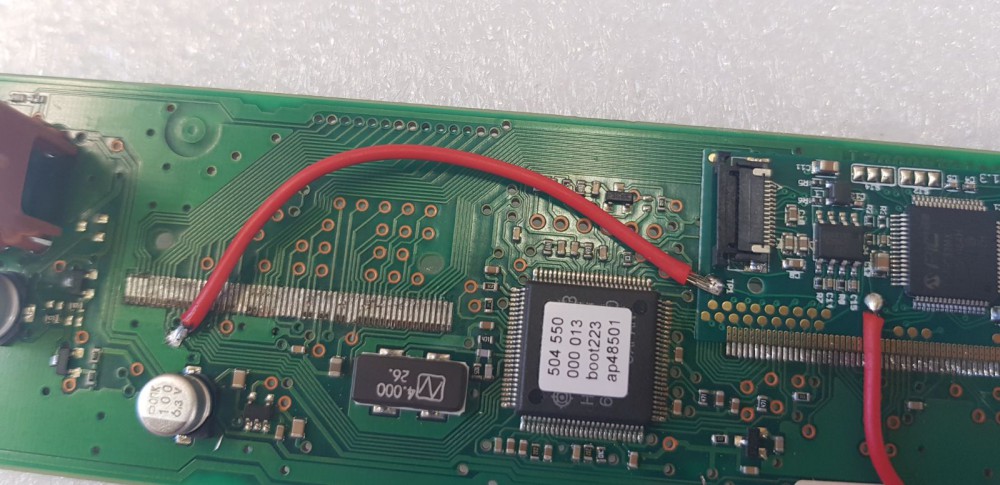

The kit is composed by a board (to be soldered on the main board of the cluster) and by a LCD display, with flat (to insert in the related PCB plug).

Size: 131x46mm.

NOTES:

It's very important to verifiy the correct model of display, just compering it to the several available codes: SEPDISP28N, SEPDISP28P, SEPDISP29N, SEPDISP29P e SEI-DISP117.
