Code: 2 21 928 2VT

2 21 928 2VT CCD Parking Camera KIA Optima II. / Sportage IV.

Availability: in stock
Stock: more than 5 pcs
Manufacturer: G-Park
Price without VAT: 71.90 €
Price: 87.00 €
Weight: 500 g

CCD Parking Camera KIA Optima II. / Sportage IV.


OE number: 2 21 928 2VT

Weight: 0.5 kg

Manufacturer: G-Park

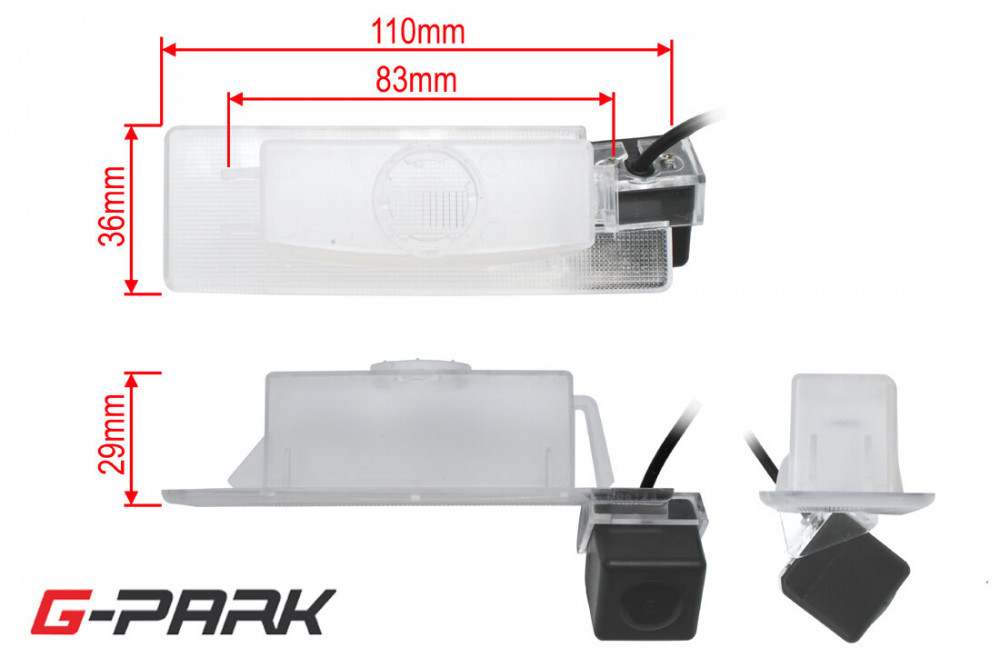

CCD parking camera for installation in the rear license plate lamp. The camera includes a place to place the socket with the bulb from the original license plate light.

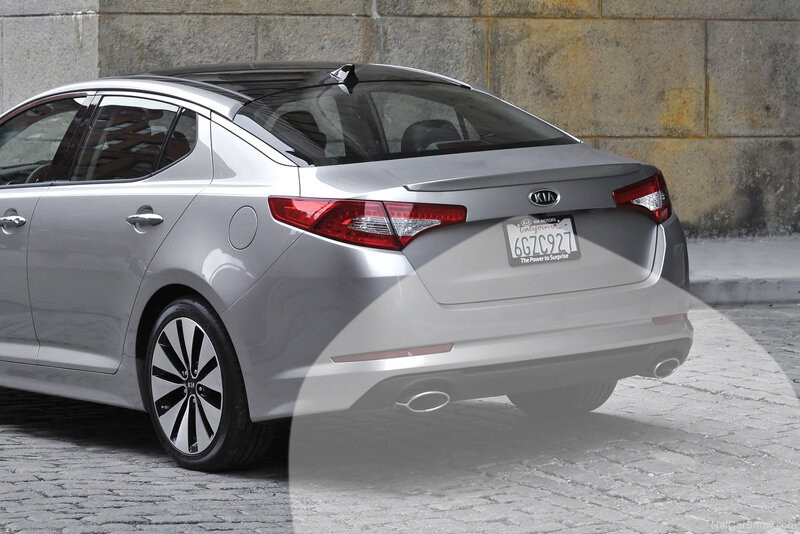

Suitable for cars:
KIA Optima II. (2011->)
KIA Sportage IV. (2016->)


The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.


Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W


NTSC TV standard
CCD sensor
RZ lighting with an original bulb
Adjustable guide lines (trajectories)
