OEM SGE2685-1G High Voltage Transformer Instrument Cluster illumination Audi A6, Q7...

Part number: SGE2685-1G

Fit:

Audi A6, Q7 and many others - since MY 2004

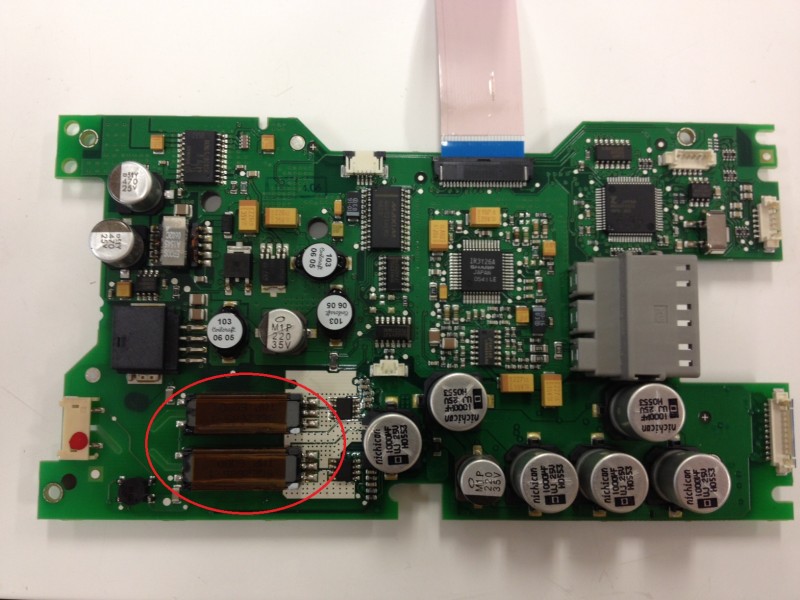

Mercedes C with navigation flip display Command.

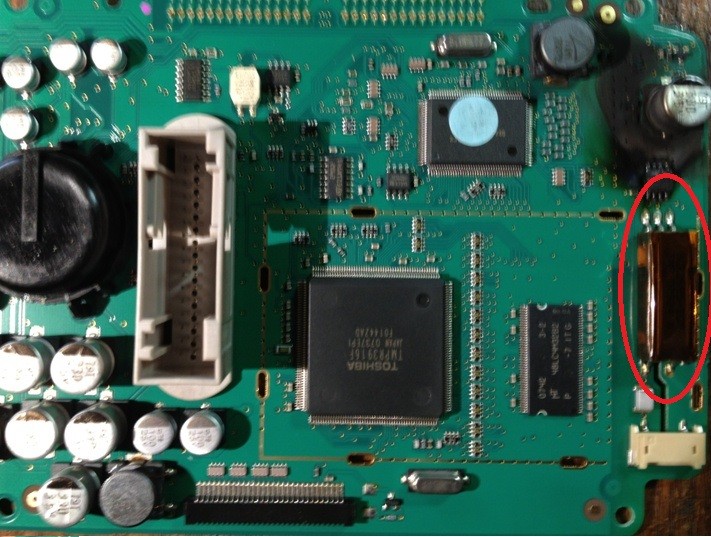

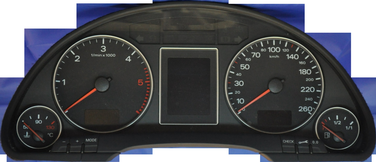

It's used in several Audi speedometers for background light, And also in other makes.

Problem areas: If this transformer is defective, instrument cluster nor work at all. For repair you must exchange SGE2685-1G, also burned SO8 IC Si9945A and possibly others damaged parts.

Max Output Voltage: 1600Vrms

Max Output Power: 7W

Datasheet you will find attached this offer.
