Emblem Rear View Camera Retrofit for VW Passat 3C Sedan Version: Emblem Kamera vorhanden (RNS 510) - Mit Hilfslinien

• Specific retrofit kit for adding the original emblem rear view camera VW Passat 3C Sedan
• Visual representation of the rear of the vehicle in the navigation system by way of the integrated camera
• Auto switch by using the rear gear*
• No installation of original control unit or additional screens necessary!

Suitable for vehicles equipped with head unit:

• VW MFD 2, RNS 2 (With or wothout guided lines display)
• VW RNS 510 (With or wothout guided lines display)
• Please note the options (emblem camera, multimedia adapter or Complete)

Selectable options:

• Emblem camera available (MFD 2/RNS 2) - without guidelines
• Emblem camera available (RNS 510) - without guidelines
• Complete (MFD 2/RNS 2) - without guidelines
• Complete (RNS 510) - without guidelines
• Multimedia Adapter available (RNS 510) - without guidelines
• Multimedia Adapter available (MFD 2/RNS 2) - without guidelines
• Complete (MFD 2/RNS 2) - with guidelines
• Complete (RNS 510) - with guidelines
• Emblem camera available (MFD 2/RNS 2) - with guidelines
• Emblem camera available (RNS 510) - with guidelines
• Multimedia Adapter available (RNS 510) - with guidelines
• Multimedia Adapter available (MFD 2/RNS 2) - with guidelines

Scope of delivery:

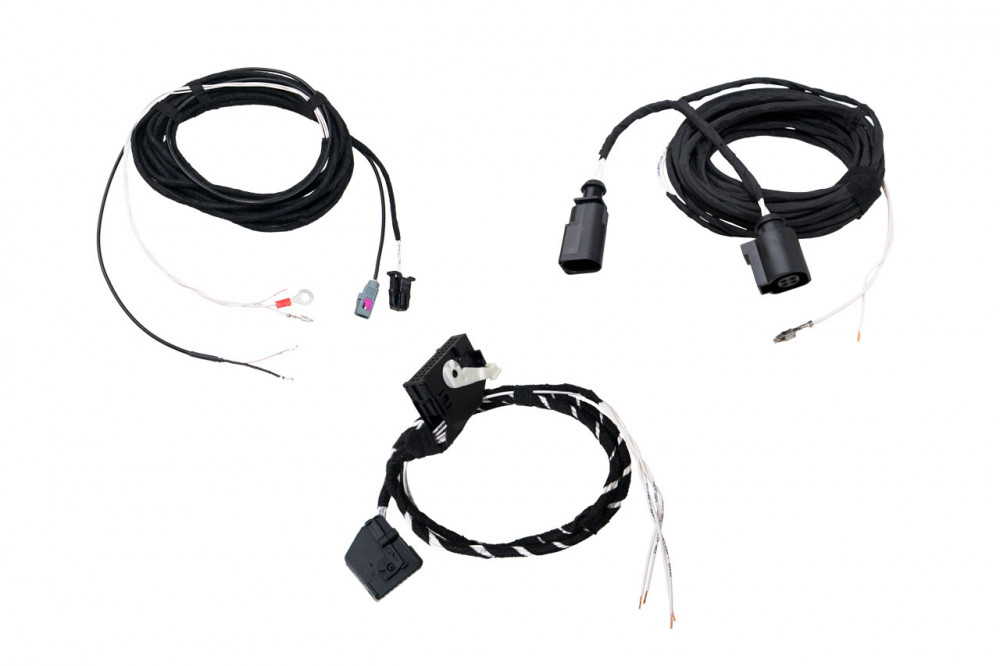

• Wiring set
• VW Emblem with integrated camera (not on item 36919-5, 36919-6, 36919-11 & 36919-12)

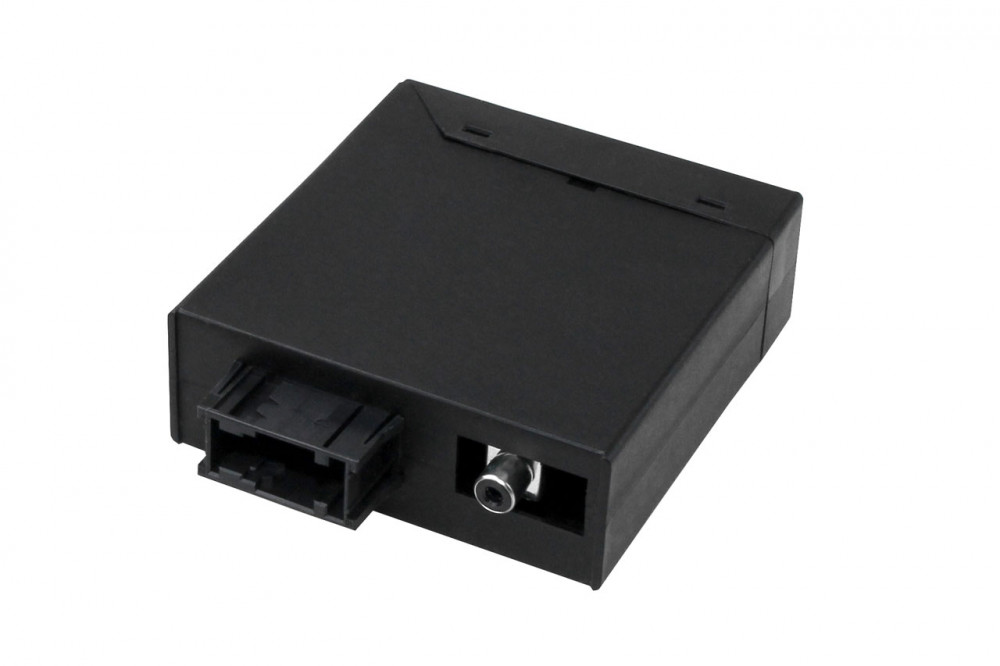

• Interface (KUFATEC) (not on item 36919-3, 36919-4, 36919-9 & 36919-10)

Notes:

• * Depending on the selected set is either a guide line presentation available or not
• item number 36919-5, 36919-6, 36919-11 & 36919-12: The VW Emblem incl. Camera need to be exist already. Original part number: 5K0 827 469 AP ULM is required.
• item number 36919-1, 36919-2, 36919-4, 36919-7, 36919-8 & 36919-10: Retrofit on car which TV-Tuner ex Works on request
• item number 36919-3, 36919-4, 36919-9 & 36919-10:Requirement is that the car already has installed a KUFATEC Multimedia Adapter ( Basic Plus)
  • The Multimedia Adapter need to have at least the following specifications:
  • Hardware 3.0
  • Software Index 2.80
• item number 36919-3, 36919-4, 36919-9 & 36919-10: Retrofit is not possible by using a Muldimedia Adapter Version Basic
