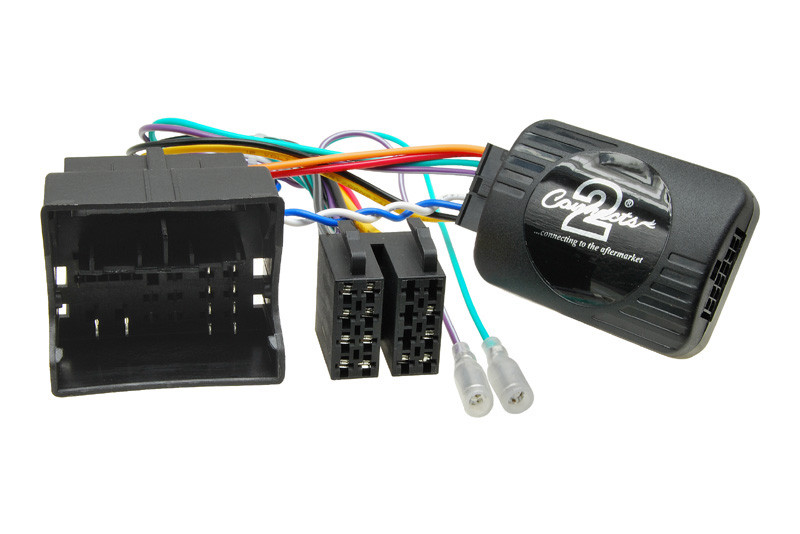

Adapter for steering wheel and connect car radios with ISO connector
Suitable for cars:
VW (2014->) MIB PQ multimedia interface
VW Beetle II. [5C1] (2015->)
VW Caddy V (2015->)
VW Sharan II. [7N_] (2015->)
VW Tiguan (2015->)
VW Transporter T6 (2015->)
- The original car radios or navigation with MIB-PQ multimedia interface with FAKRA connector and CAN-Bus steering wheel
- Adapter supports the Control Hands-free kit installed in an aftermarket car stereo using the buttons on the steering wheel
- Does not contain the original connector radio + 12V after turning the ignition key (sv.15), this signal must be in the car to find and attach the yellow wire with fuse (wire length cca.1,5m)
- For aftermarket car stereo Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zeneca Becker, Nakamichi, Philips ISO connector *
* - Must be ordered together with the adapter for the type of car stereo!
Part of adapter cables with analog signals:
- + 12V after turning the ignition key (sv.15) - encased in an ISO connector
- + 12V after switching on the vehicle lighting - encased in an ISO connector
- + 12V after reverse gear - free wire
- Skeleton (- pole) in the handbrake - free wire
this information can be used for the installation of aftermarket car stereos, navigation or surveillance systems.
