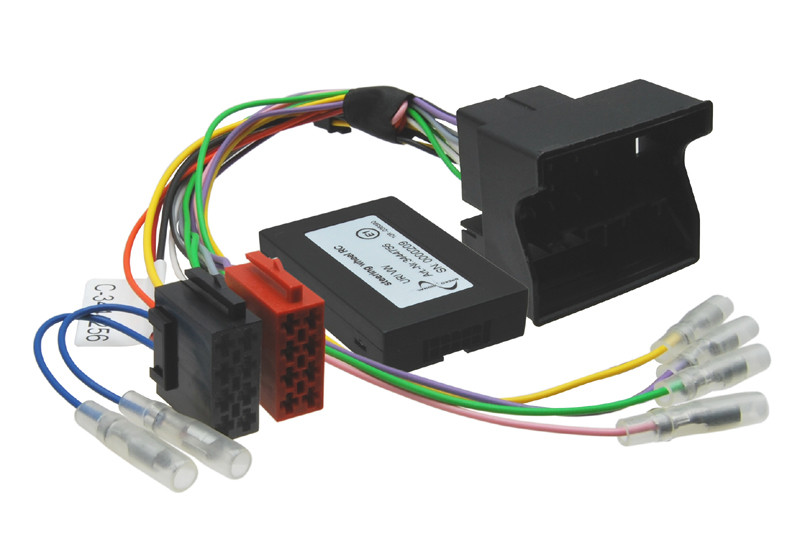

Adapter for steering wheel and connect car radios with ISO connector
Suitable for cars:
VW Golf VI. [1K] (2010->)
VW Eos [1F] (2010->)
VW Sharan II. [7N] (2010->)
VW Passat (2010->)
VW CC [3C] (2010->)
VW Scirocco [13] (2010->)
VW T5 [7H] (2010->)
VW Caddy [2K] (2010->)
VW Tiguan [5N] (2010->)
VW Touran (2010->)
SEAT Alhambra II. [7N] (2010->)
SEAT Leon II. [1P] (2010->)
SEAT Altea [5P] (2010->)
ŠKODA Superb II. [3T] (2008->)
ŠKODA Yeti (2009->)
ŠKODA Octavia II. [1Z] Facelift (9 / 2008->)
ŠKODA Fabia II. [5J] (2010->)
ŠKODA Roomster [5J] (2010->)
- The original car radios or navigation
- Can only be used in cars with the information display MFA Plus / Premium MFA
- Supports the display of information about setting air conditioning, parking sensors, etc. OEM. Information on car display (MaxiDOT)
- Supports the function buttons on the steering wheel to control Hands free kits built-in navigation system (if supported by the installed car radio or navigation)
- Designed for aftermarket car stereo or navigation: Pioneer, Kenwood, Alpine, Sony, Phonocar, Clarion, JVC, Macrom, Zenec

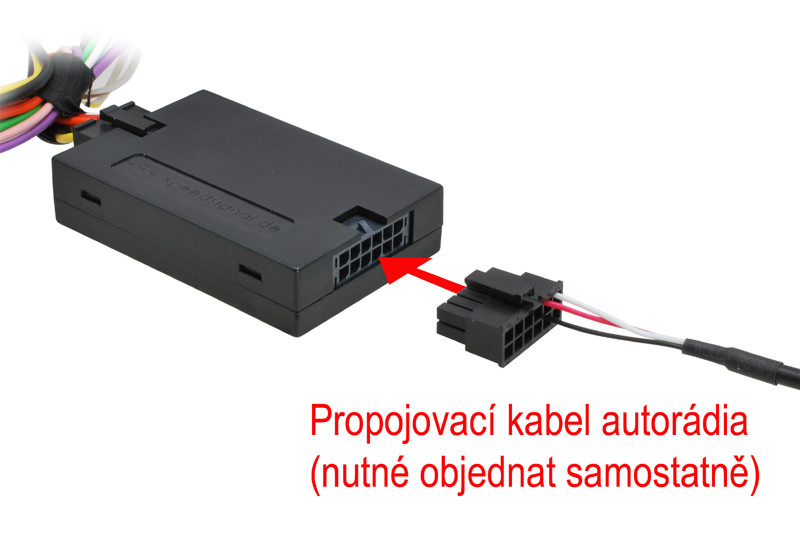

Must be ordered together with the adapter for the type of car stereo!
Part of adapter cables with analog signals:
- + 12V after turning the ignition key (sv.15) - encased in an ISO connector
- + 12V after switching on the vehicle lighting - encased in an ISO connector
- Speed impulses - pink loose wire
- + 12V after reverse gear - purple loose wire
- Skeleton (- pole) in the handbrake - free green wire
- MUTE - yellow / black wire
this information can be used for the installation of aftermarket car stereos, navigation or surveillance systems.
