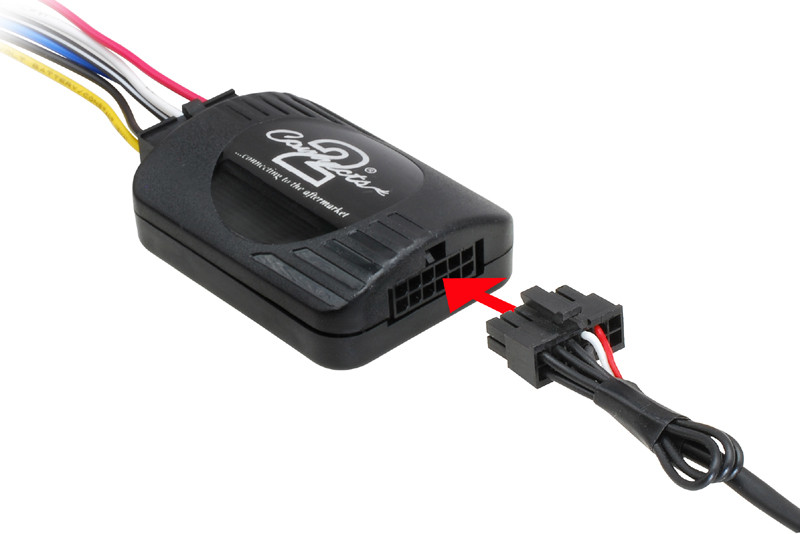

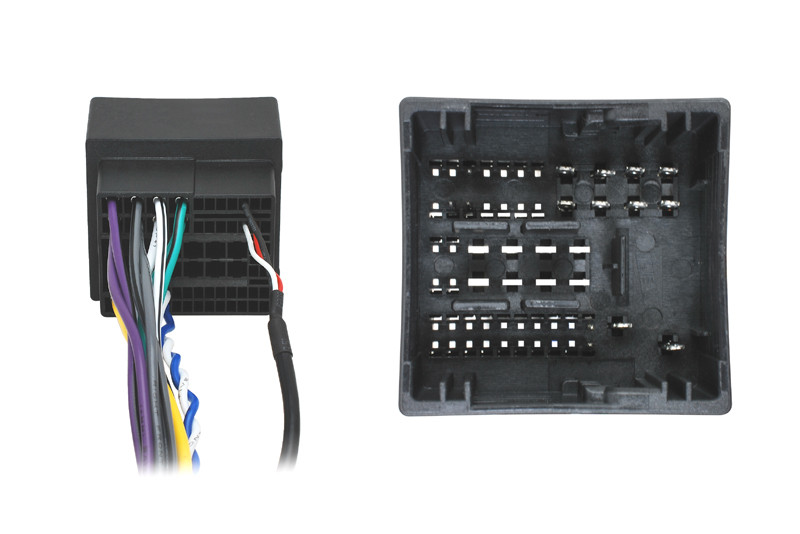

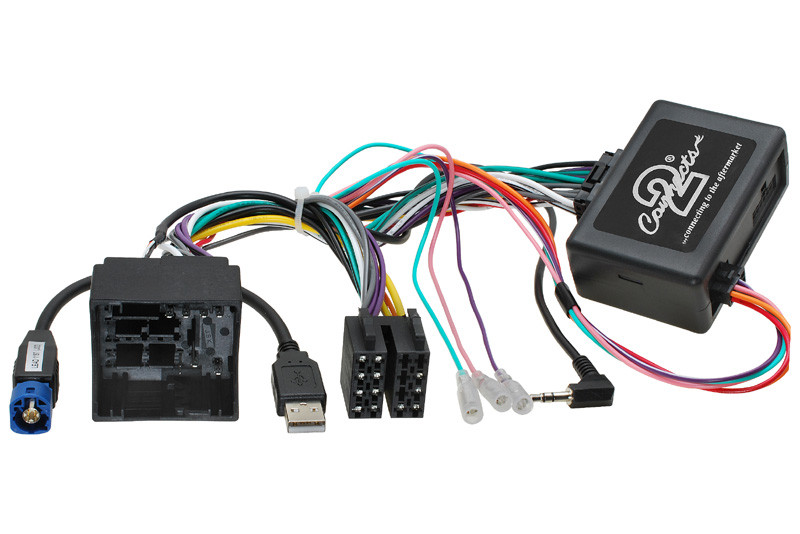

Adapter for control on steering wheel and connection of car radio with ISO connector
Suitable for cars:
CITROEN Dispatch (2016->)
CITROEN Jumpy (2016->)
PEUGEOT Expert [K0] (2016->)
PEUGEOT Traveler [K0] (2016->)

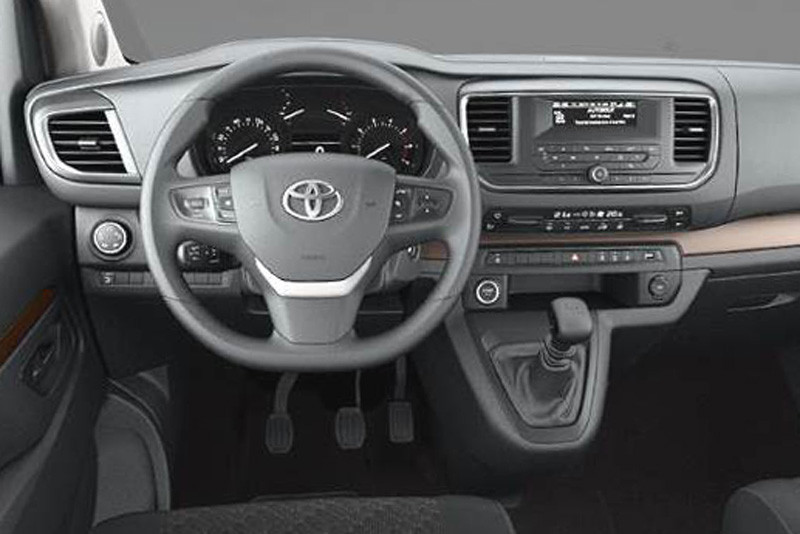

TOYOTA Proace (2016->)
TOYOTA Proace Verso (2016->)
- cars with OEM car radio and steering wheel buttons, and OEM parking sensors.
- part of the JACK 3.5mm adapter for connecting the OEM AUX input to the installed car radio (if installed in the car)
- for aftermarket car radio Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker, Nakamichi, Philips with ISO connector *
* - Must be ordered together with the adapter for the given type of car radio!
The adapter does not support functions: switching the START / STOP system and parking sensors on and off, controlling car functions such as: welcome light, driver alert, language, date and time settings, etc.
The adapter includes wires with analog signals:
- + 12V after switching on the key (sv.15) - connected in ISO connector
- speed pulses - free PINK / GREEN wire
- + 12V after switching on the vehicle lighting - connected in ISO connector
- + 12V after reverse gear - free violet / gray wire
- hand brake - free GREEN wire
this information can be used to assemble aftermarket car radios, navigation or monitoring systems.
Manufacturer part number:
Toyota: CTSTY011.2
Peugeot:
Citroen:
