OE number: 2 21 907 2VT
Weight: 0.5 kg
Manufacturer: G-park

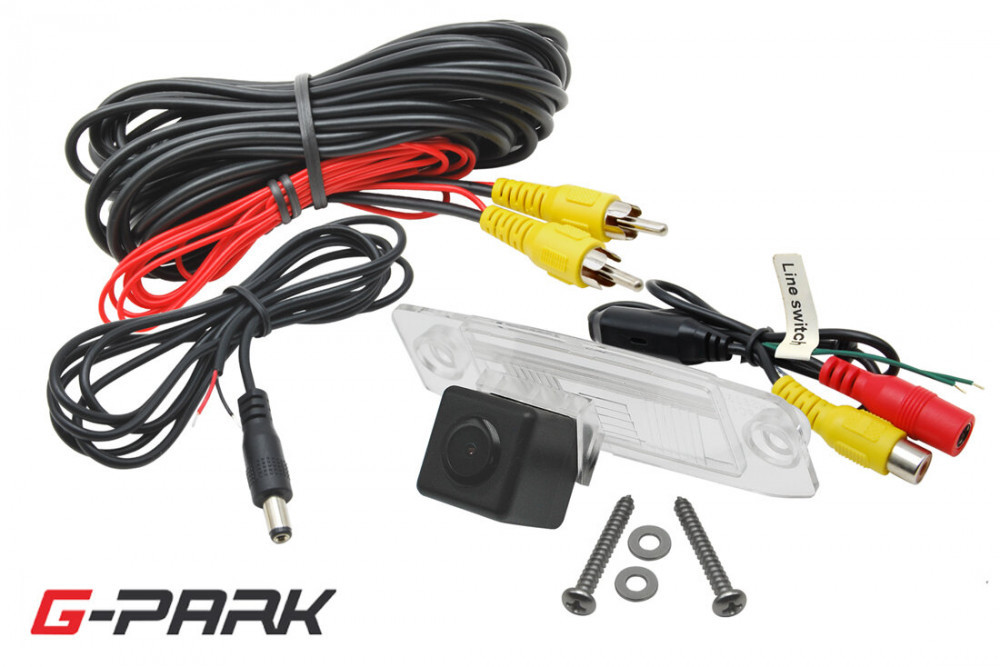

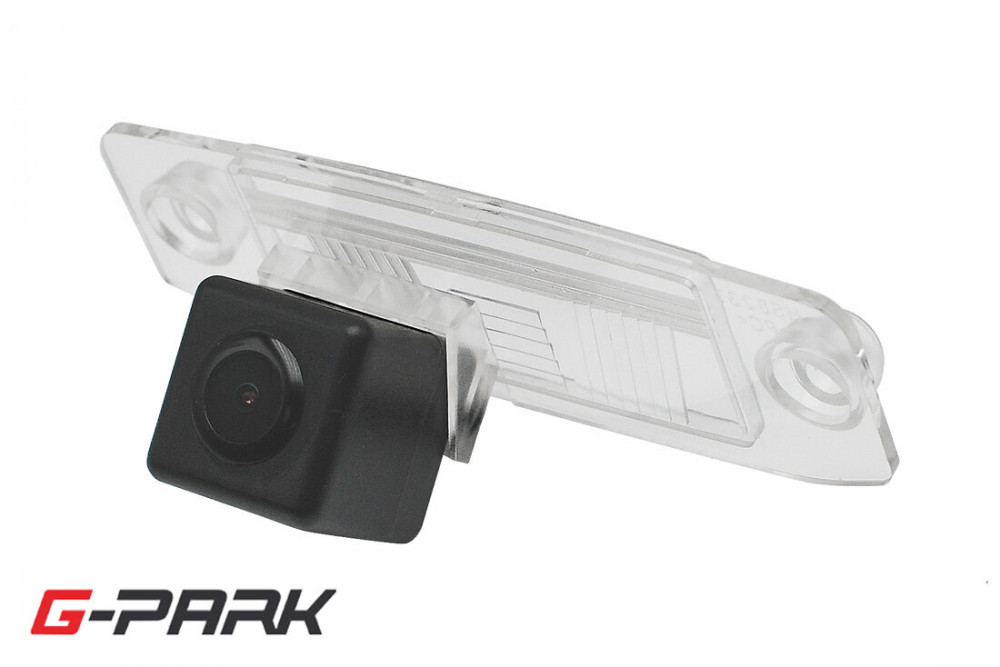

CCD parking camera for installation in the rear license plate lamp. The transparent cover of the camera allows the use of original license plate lighting.
Suitable for cars:
HYUNDAI Elantra III. (2006-2011)
HYUNDAI Sonata
HYUNDAI Accent
HYUNDAI Tucson I. [JM] (8/2004-3/2010)
HYUNDAI Terracan
HYUNDAI i40 CW (7/2011->) - Station wagon
HYUNDAI ix55 (11/2008->)
KIA Carens III. (2006-2012)
KIA Opirus
KIA Ceed I. (2007-2010)
KIA Ceed II. (9/2009-4/2012)
KIA Sportage III. [SL] (08/2010-2015)
KIA Sorento II. (11/2009-2015)
The camera allows trajectories (guidelines) to be displayed or hidden. The function is deactivated when the green wires are connected in the cable harness at the camera.
Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- display of trajectories (guide lines) on the monitor - optional function
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal and control cable length 7m terminated with a CINCH connector
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
RZ lighting with an original bulb
Adjustable guide lines (trajectories)
