OE number: 2 21 908 VT
Weight: 0.5 kg
Manufacturer: G-Park

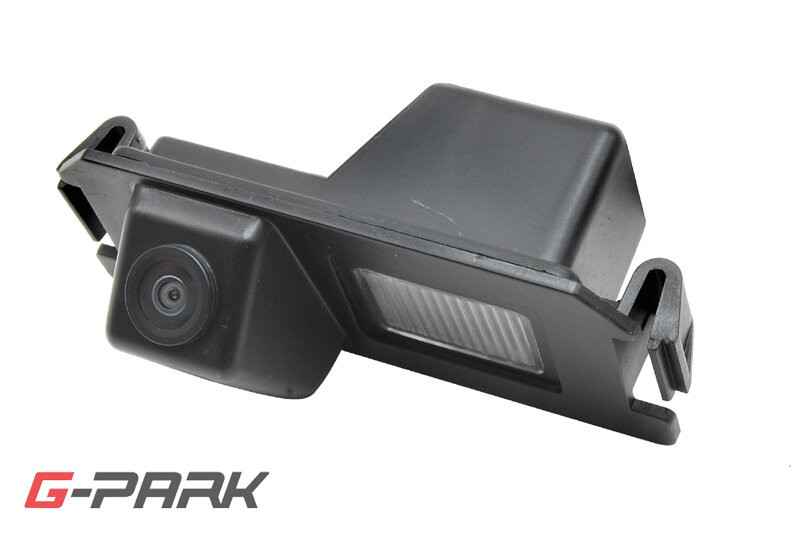

CCD parking camera for installation in the rear license plate lamp. The camera includes a place to place the socket with the bulb from the original license plate light.
Suitable for cars:
HYUNDAI i10 II. (2014->)
HYUNDAI i20 I. [PB] (8/2008-2015)
HYUNDAI i20 II. (2015-2018) *1)
HYUNDAI i30 I. (9/2007-2/2012)
HYUNDAI Veloster (2011->)
HYUNDAI Genesis Coupe
KIA Soul I. [AM] Facelift (11/2011->)
KIA Rio III. (9/2011-1/2017)
KIA Rio IV. (2/2017->)
KIA Picanto II. [TA] (5/2011-2017)
*1) cannot be used for cars after Facelift 2018
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical properties:
- CCD 1/4" sensor chip

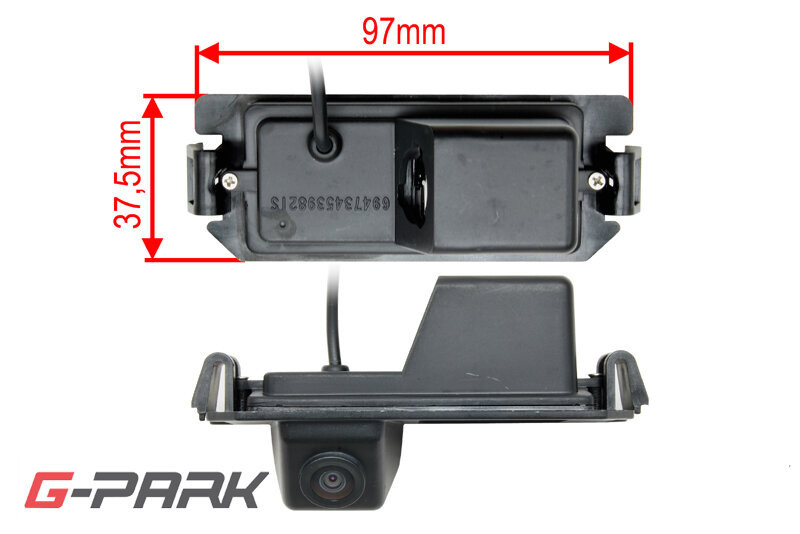

- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking (optional function)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C

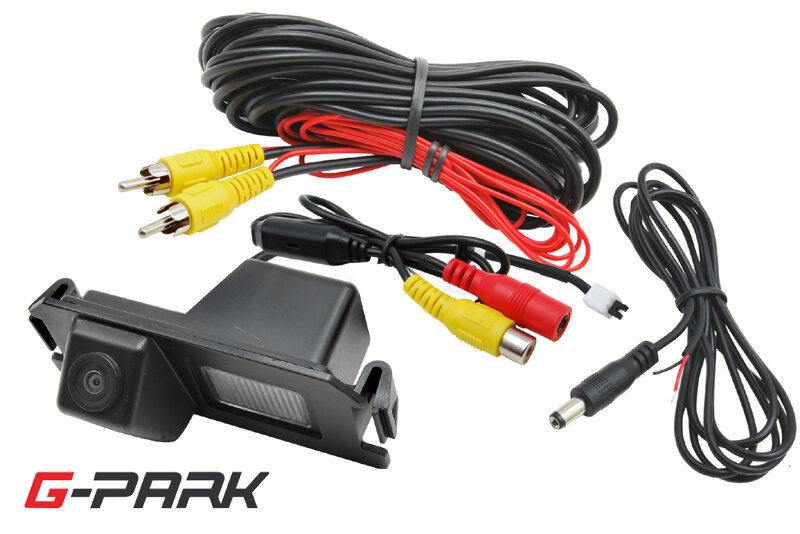

- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
RZ lighting with an original bulb
