2 21 925 3VT Rear Parking Camera HYUNDAI ix35 - bulb lighting

Rear Parking Camera HYUNDAI ix35 - bulb lighting

OE number: 2 21 925 3VT

Weight: 0.5 kg

Manufacturer: G-Park

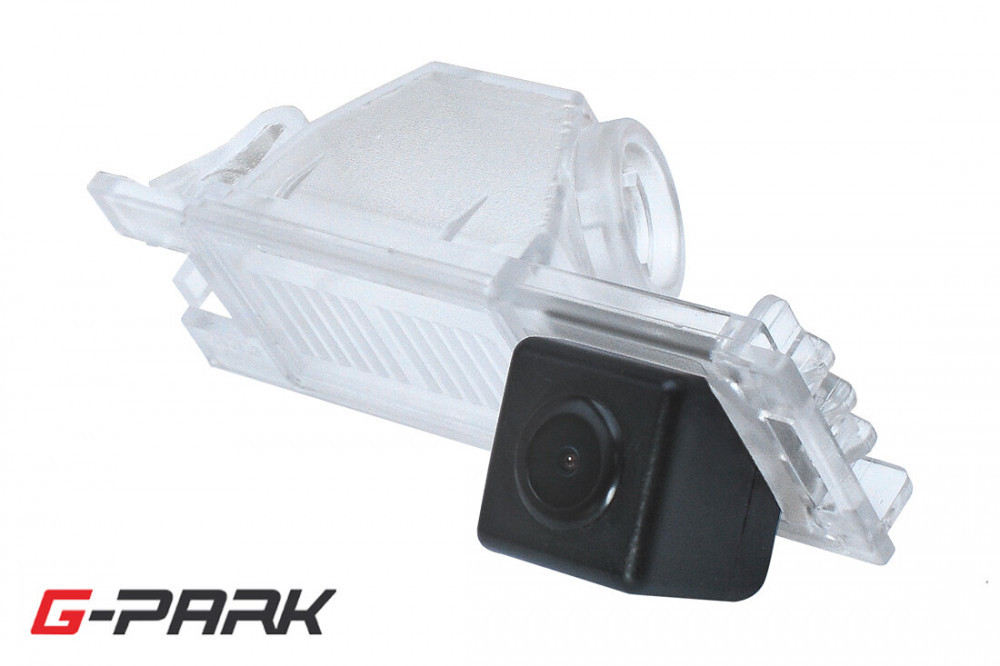

CCD parking camera for installation in the lamp for lighting the rear license plate. Part of the camera is a place to place the socket with the bulb from the original light for the license plate.

Suitable for cars:
HYUNDAI ix35 [LM] (2009-2015)

The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.

Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking (optional function)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W

Function
NTSC TV standard
CCD sensor
RZ lighting with an original bulb
Adjustable guide lines (trajectories)
