OE number: 2 21 927 2VT
Weight: 0.5 kg
Manufacturer: G-Park

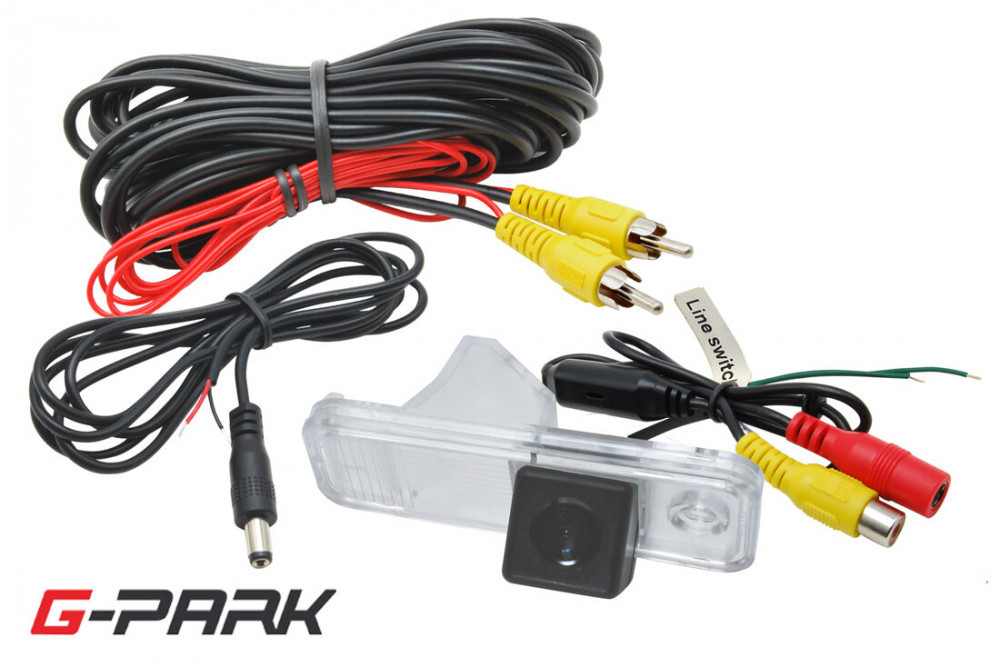

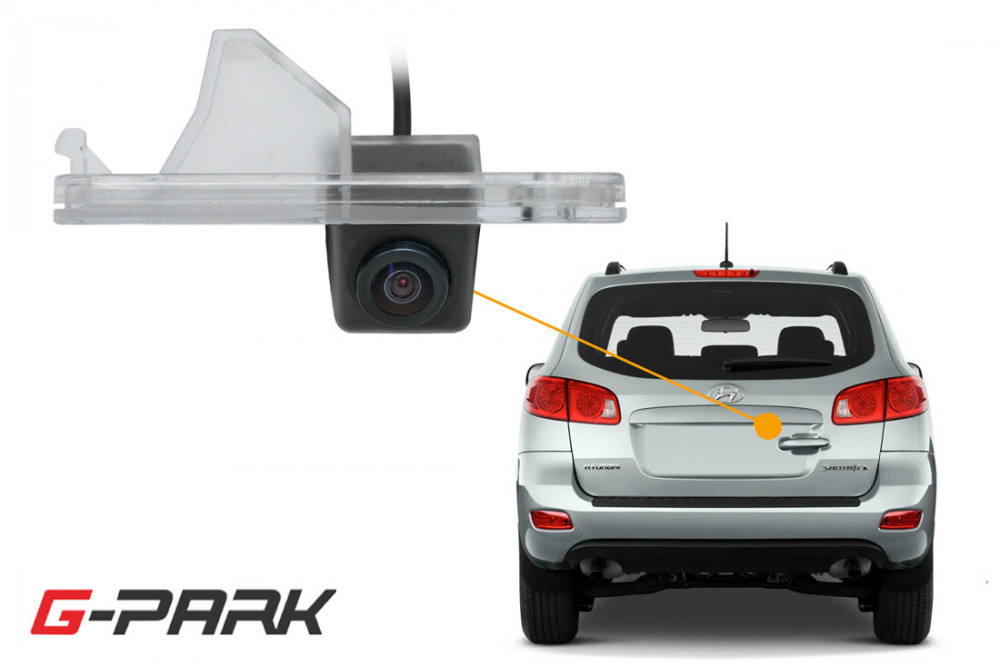

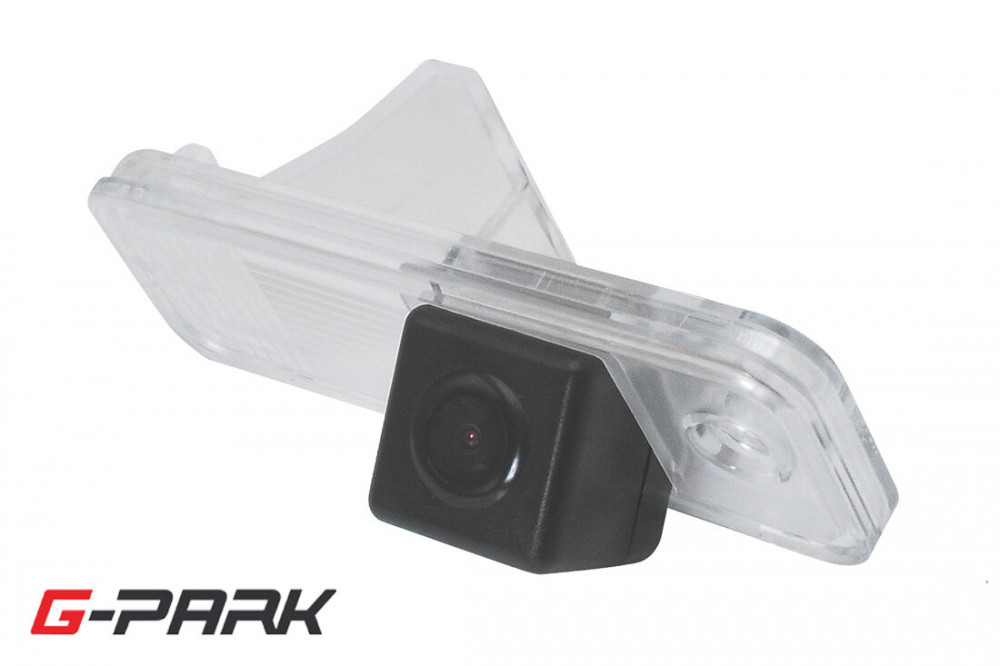

CCD parking camera for installation in the rear license plate lamp. The camera includes a place to place the socket with the bulb from the original license plate light.
Suitable for cars:
HYUNDAI Santa Fe II. [CM] (10/2005-8/2012)
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Function
NTSC TV standard
CCD sensor
RZ lighting with an original bulb
Technical parameters
- CCD 1/4" sensor chip

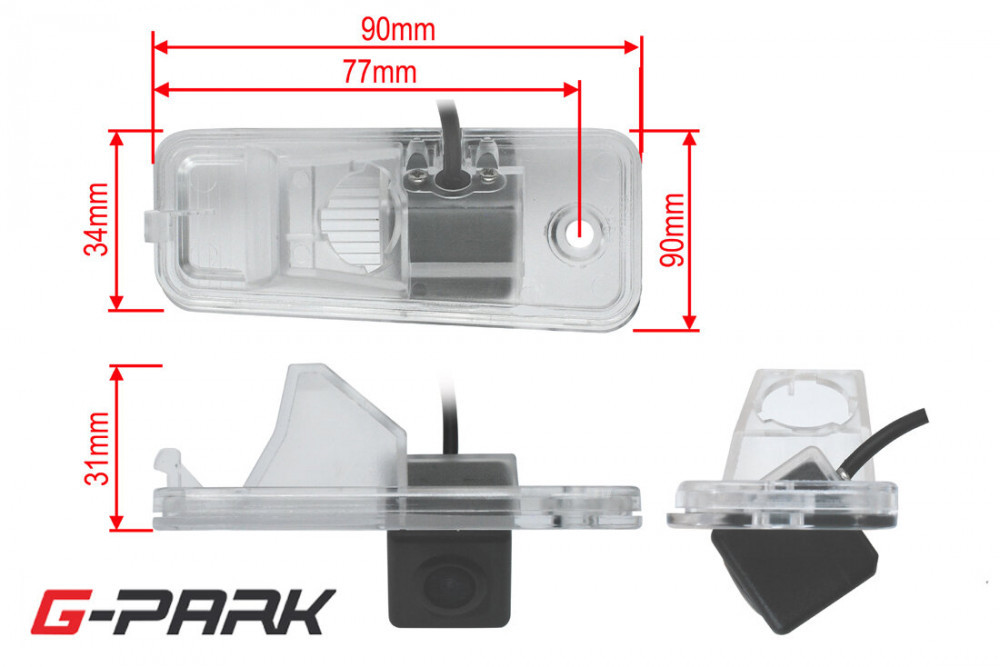

- lens diameter 19mm
- display of trajectories (guide lines) on the monitor (optional function)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal and control cable length 7m terminated with a CINCH connector
- power supply: 12V DC
- consumption: <1W
