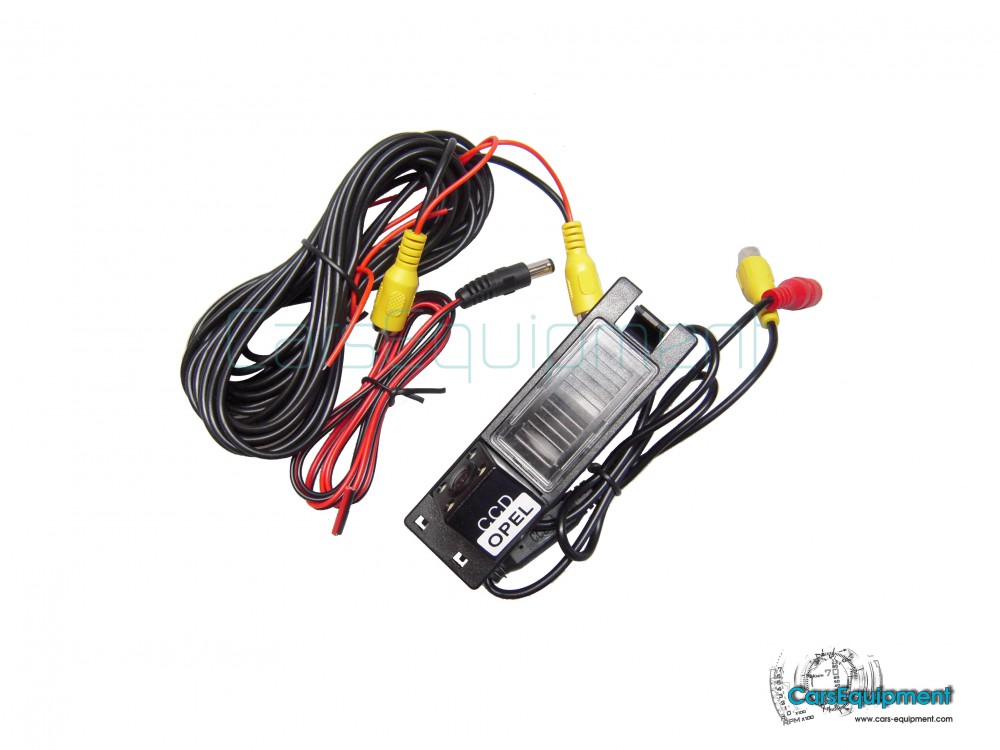

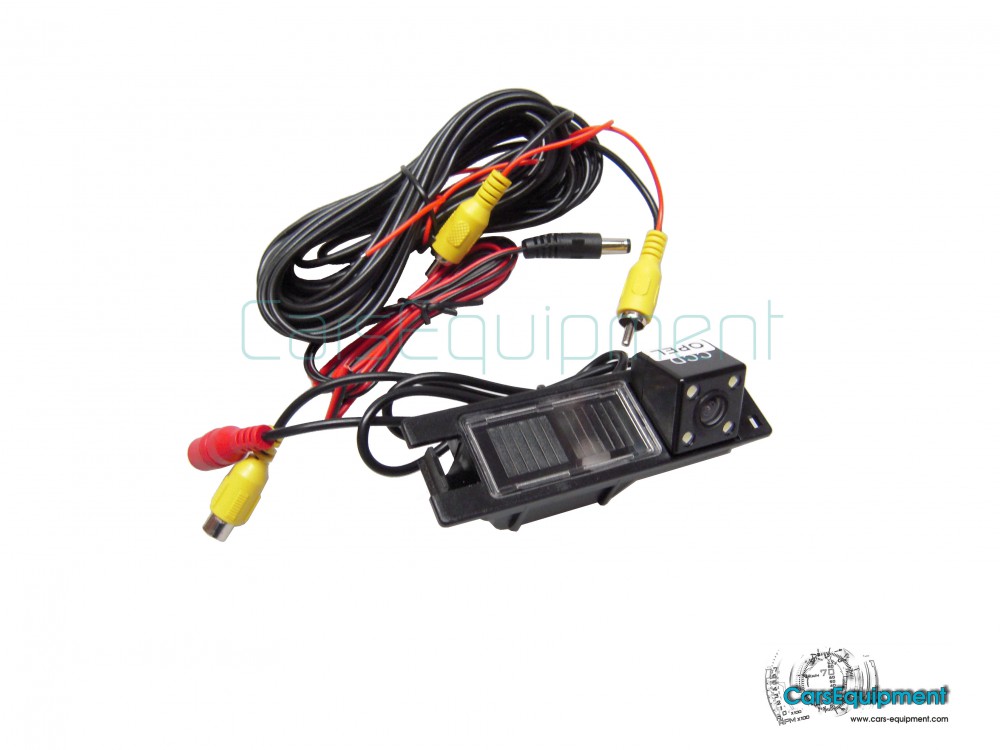

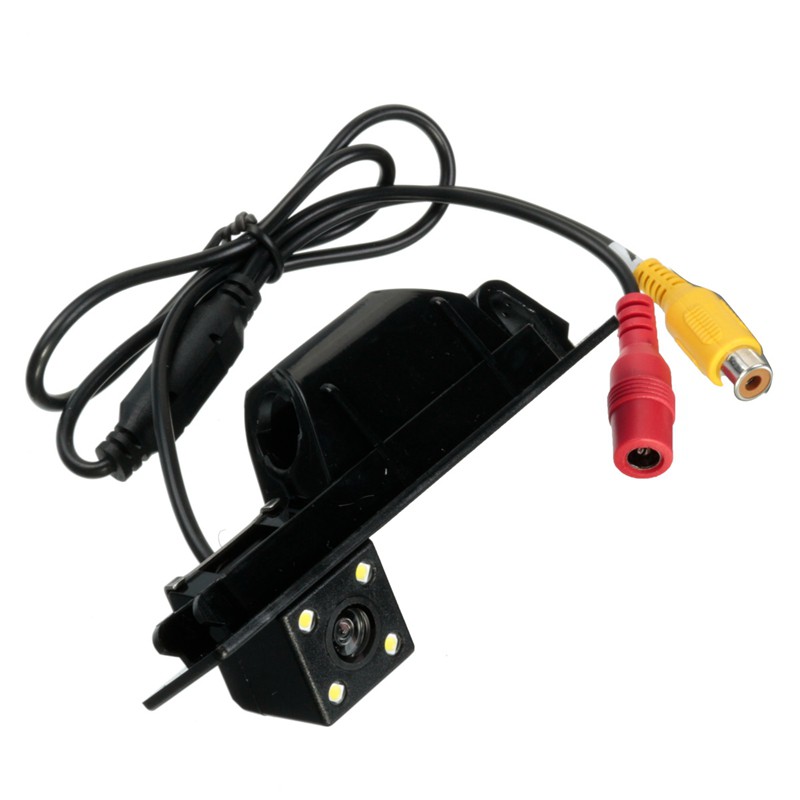

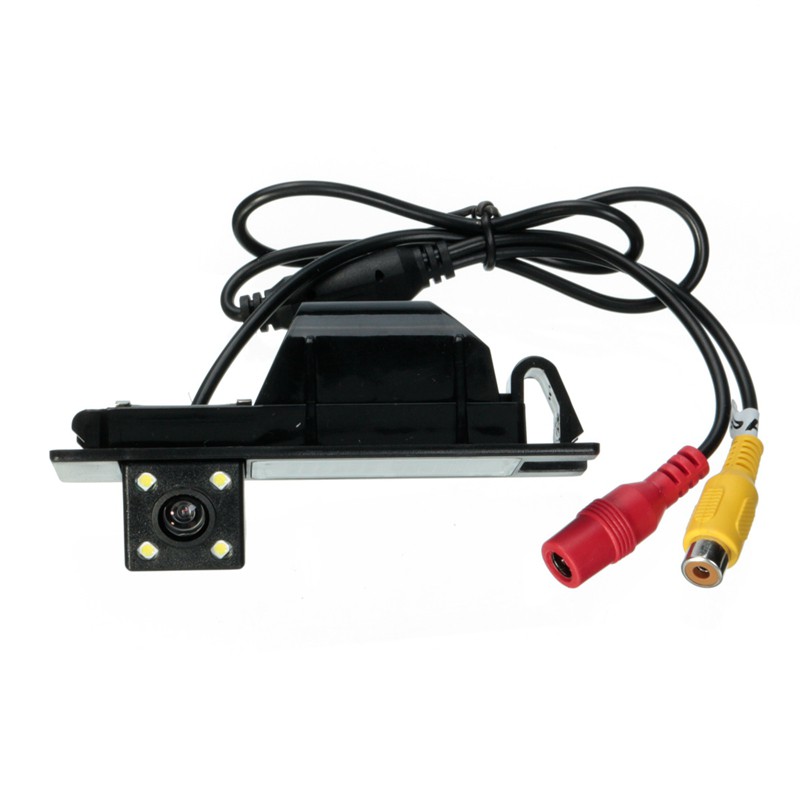

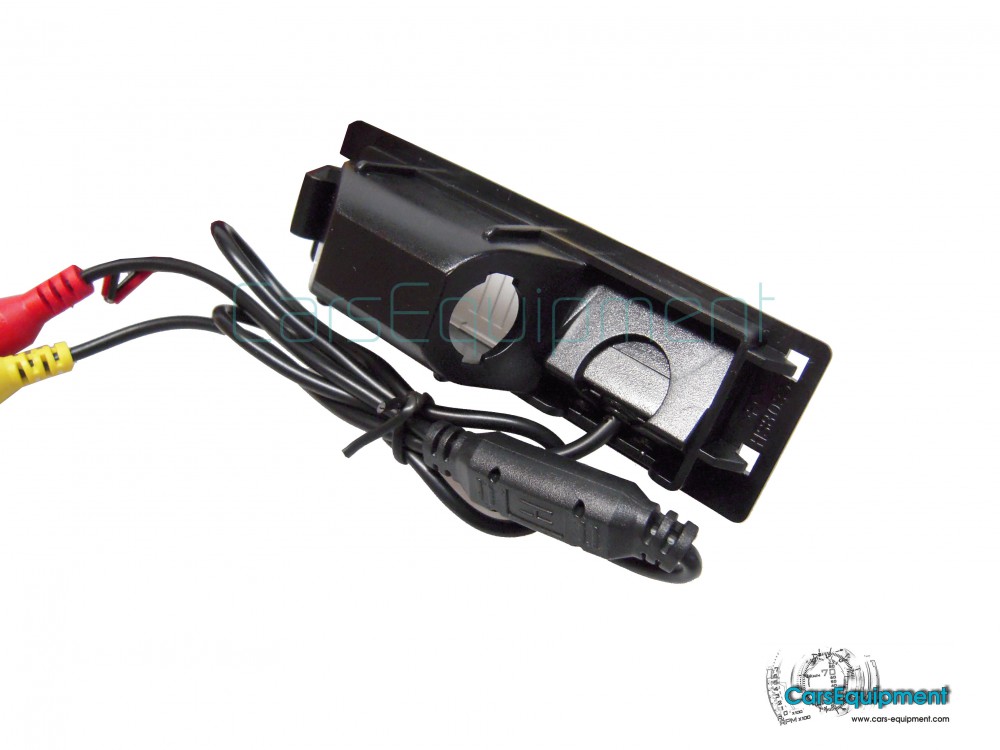

CCD Rear View Camera for Opel Astra H/ Corsa D/ Meriva A/ Vectra C/ Zafira B, FIAT Grande

Image sensor:

Color CCD

TV system:

NTSC/PAL

Effective pixels:

658 x 462 Pixels/628 x 586 Pixels

Horizontal resolution

480TVL

Shutter speed

1/60-20us

Minimum illumination:

0.2Lux/ F1.8=1.2 (0 Lux with Led)

Lens Angle:

170° (diagonal)

White balance

Auto

Color

black

Waterproof:

IP68

Video output:

1.0Vp-p, 75ohm

Current Consumption:

No More 80mA

Power supply:

DC 12V

Operating Temperature:

-20°C~ 60°C, RH95% Max.

Storage temperature:

-30°C ~ 60°C, RH95% Max.

Video cable length:

6m

Power supply cable length:

1.5m
