2 21 879 CCD Parking Camera MITSUBISHI Grandis (03->)

CCD Parking Camera MITSUBISHI Grandis (03->)

OE number: 2 21 879

Weight: 0.5 kg

Manufacturer: G-park

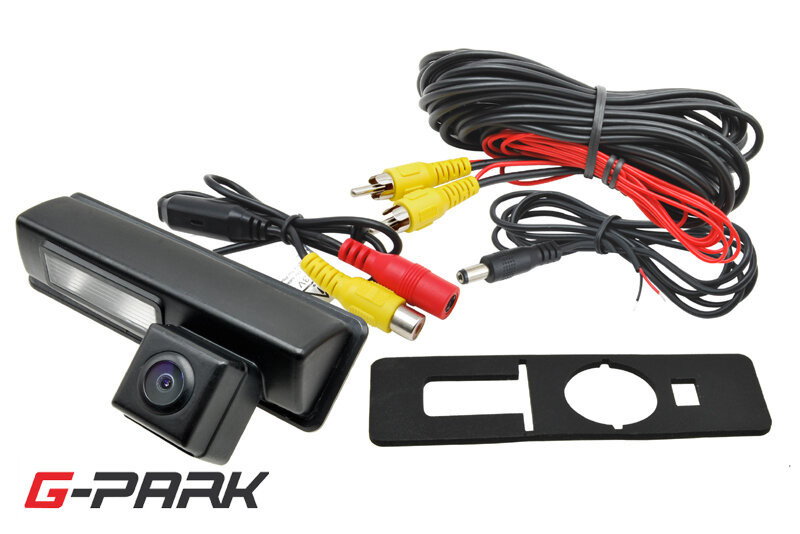

CCD parking camera for installation in place of the rear license plate light. The camera includes a place to place the socket with the bulb from the original license plate light.

Suitable for cars:
MITSUBISHI Grandis [NA] (3/2003-12/2011)

Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W

Function
NTSC TV standard
CCD sensor
RZ lighting with an original bulb
