OE number: 2 21 946 VT
Weight: 0.5 kg
Manufacturer: G-park

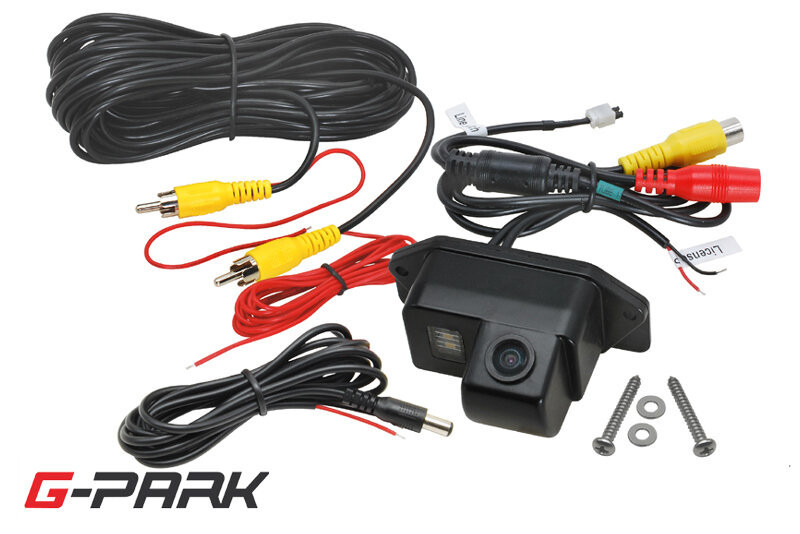

CCD parking camera for installation in place of the rear license plate light. The camera includes an LED light replacing the original lighting.
Suitable for cars:
MITSUBISHI Lancer (2007-2017) Sedan
Cannot be used for Sportback
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking - option to turn it off
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
Guiding trajectories (lines)
NTSC TV standard
CCD sensor
LED lighting RZ
