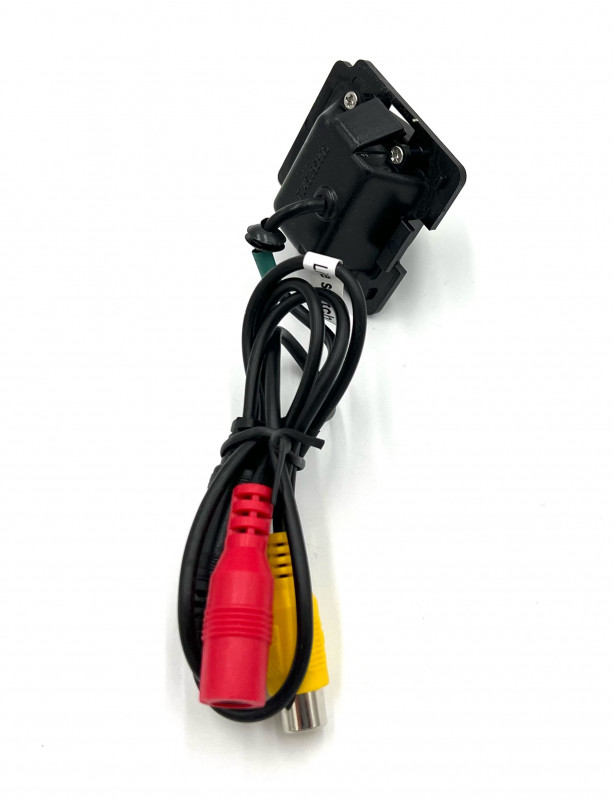

Mitsubishi Outlander / Peugeot 4007 / Citroen C-Crosser reversing camera
CCD parking camera for installation in a prepared hole in the space above the rear registration plate.
Suitable for cars:
MITSUBISHI Outlander II. (2007-2012)
MITSUBISHI Outlander III. (2012->)
PEUGEOT 4007 (2007->)
CITROEN C-Crosser (2007->)
The camera allows you to show or hide trajectories (guides). The function is activated when the jumper in the wiring harness at the camera is plugged in.
Technical properties:
- CCD 1/4 "sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation when parking - option to turn off
- electronic shutter: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170 °
- video output: 1.0V / 75Ohm
- white balance: automatic
- working temperature from -30 ° C to + 70 ° C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
