OE number: 2 21 875 VT
Weight: 0.5 kg
Manufacturer: G-Park

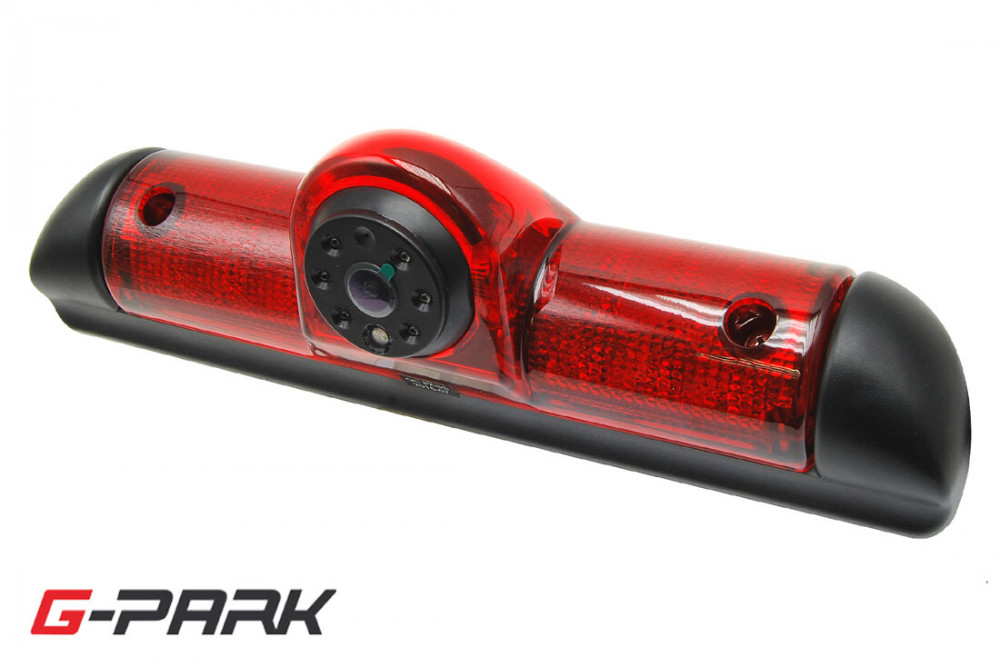

CCD parking camera integrated in the third brake light installed above the rear wing door.
Suitable for cars:
FIAT Ducato (2006-2014)
FIAT Ducato [X250][X290](2014-2021)
FIAT Ducato (Facelift 2021->)
PEUGEOT Boxer (2006-2014)
PEUGEOT Boxer (2015->)
CITROEN Jumper (2006-2014)
CITROEN Jumper (2015->)
The camera is attached by two nuts from the inside of the car (screws are firmly connected to the camera body)
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical properties:
- CCD Sharp 1/4" sensor chip
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking (optional function)
- lighting with IR LEDs (6 pcs.)
- lens diameter 14mm
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 420
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- power and signal cable for the camera: approx. 80 cm
- signal cable length 10 m terminated with CINCH connectors
- power cable length 1m
Function
Guiding trajectories (lines)
NTSC TV standard
CCD sensor
