OE number: 2 21 829
Weight: 0.5 kg
Manufacturer: G-Park

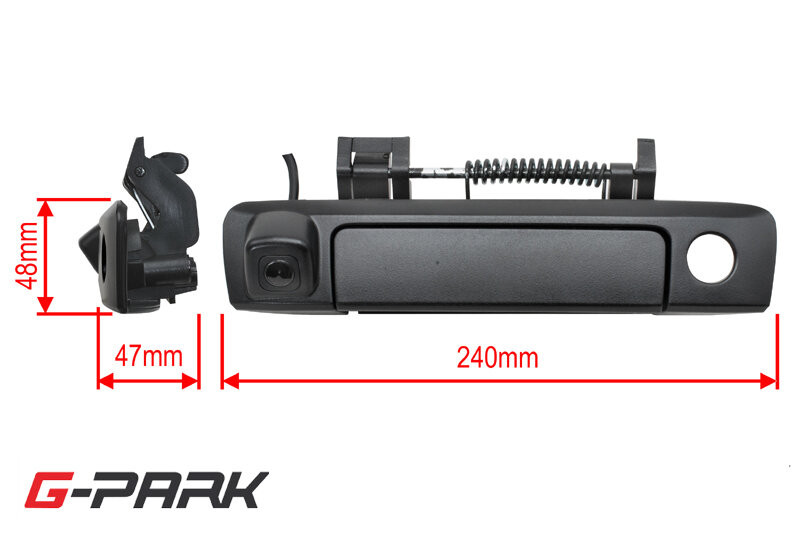

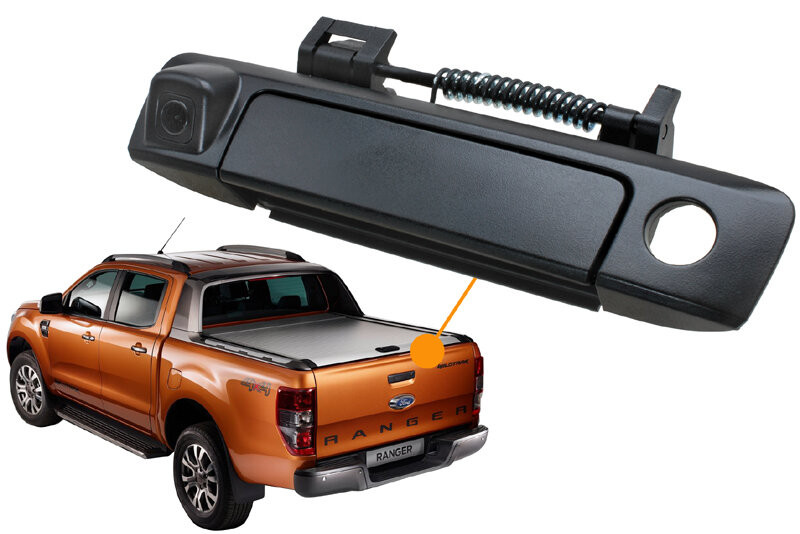

Parking camera installed in the opening handle of the 5th door.
Suitable for cars:
FORD Ranger (2011->)
FORD Ranger [2AB] (4/2015->)
MAZDA BT-50[UP][UR] - (2011-2020)
The camera allows you to display or hide trajectories (guide lines) and select the PAL / NTSC TV system
The functions are adjustable by jumpers in the cable harness at the camera.
Technical details:
- CCD 1/4" sensor chip
- displays auxiliary trajectories (guide lines) on the monitor for orientation when parking (this function can be turned off)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC / PAL (jumper selectable)
- resolution: 640 x 480
- weather protection: IP68
- scanning angle: 168° x 136° x 100°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 8m terminated with CINCH connectors
- power cable length 3m
- power supply: 12V DC
- consumption: <1W
Function
PAL TV standard
NTSC TV standard
CCD sensor
Adjustable guide lines (trajectories)
