CCD Parking Camera FORD Transit Connect (2013->) - hinged door

OE number: 2 21 846

Weight: 0.5 kg

Manufacturer: G-Park

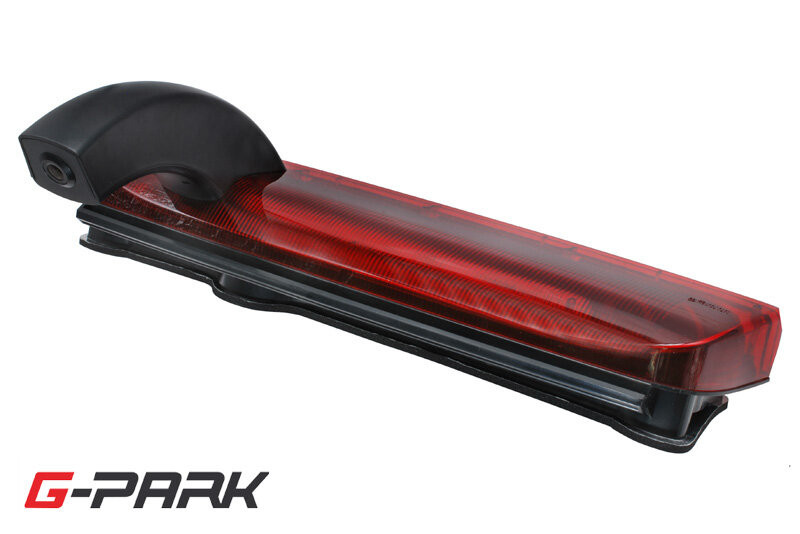

CCD parking camera integrated in the third brake light installed above the rear wing door.

Suitable for cars:
FORD Transit Connect (9/2013->)
FORD Tourneo Connect (11/2013->)
Only for cars with rear wing doors

Technical properties:
- CCD 1/3" sensor chip
- diameter of the built-in lens: f: 2.8mm
- TV system: NTSC
- video output: 1.0V /75Ohm
- scanning angle: 170°
- weather protection: IP69K
- resistance to withdrawals: 10G
- camera connector: 4 pin screw
- connector on the monitor side: CINCH (RCA)
- camera cable length: 2.5m
- cable length: 10m
- number of scanning pixels: 510x492
- horizontal resolution: 420 TV lines
- white balance: automatic
- minimum lighting: 0.1LUX
- signal/noise ratio: >48dB
- electronic aperture: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C

Installation in a car:

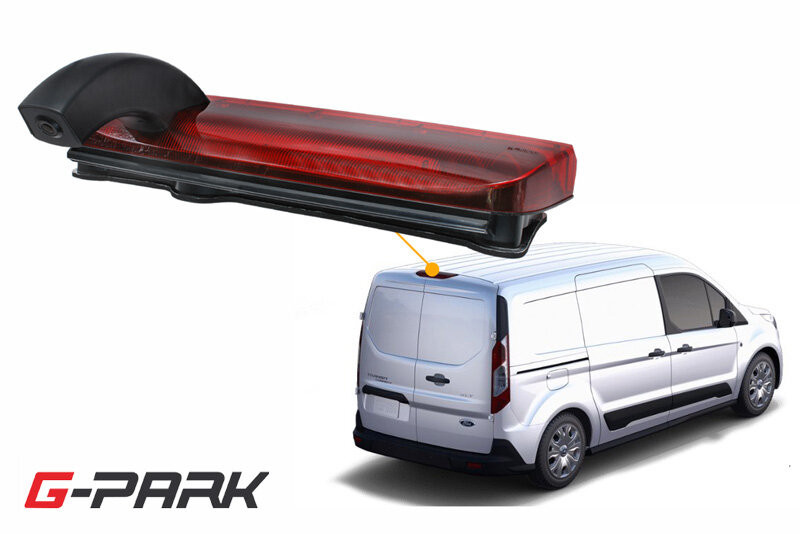

The camera is integrated in the third brake light located above the rear wing door, which replaces the original brake light. Light signaling is provided by a built-in LED light. The connector for powering the brake light corresponds to the original connector in the car. The angle and location of the camera ensures optimal sensing of the space behind the car when backing up.

Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs

Function
NTSC TV standard
CCD sensor
