OE number: 2 21 863 1
Weight: 0.5 kg
Manufacturer: G-Park

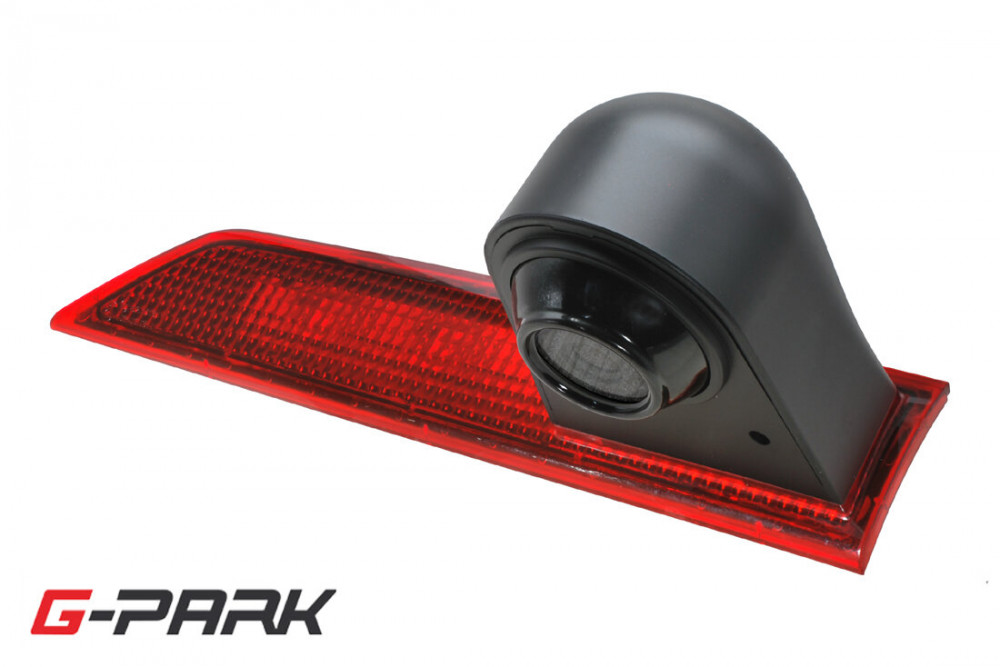

CMOS parking camera integrated in the third brake light installed above the rear wing door.
Suitable for cars:
FORD Transit Custom [V362] (2012-5/2016)
Only for cars with rear wing doors
Original brake light with bulbs
Installation in a car:
The camera is integrated in the third brake light located in the rear door, which replaces the original brake light. Light signaling is provided by a built-in LED light. The connector for powering the brake light corresponds to the original connector in the car. The inclination and angle of view of the camera can be regulated.
Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs
Function
NTSC TV standard
CMOS sensor
Technical parameters
- CMOS 1/4" sensor chip
- IR lighting with 9 LEDs (night vision)
- TV system: NTSC
- built-in lens: aperture 2.8mm
- scanning angles: 120°(D) / 95°(H) / 70°(V)
- mechanical camera tilt adjustment: +/-45°
- video output: 1.0V /75Ohm
- weather protection: IP69K
- vibration resistance: 10G
- number of scanning pixels: 510x492
- horizontal resolution: 420 TV lines
- white balance: automatic
- backlight compensation: automatic
- minimum lighting: 0LUX (illumination by infrared LEDs)
- signal/noise ratio: >48dB
- electronic aperture: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C
- camera connector: 4 pin screw
- connector on the monitor side: CINCH (RCA)
- cable length: 10m
