OE number: 2 21 876 2
Weight: 0.5 kg
Manufacturer: G-Park

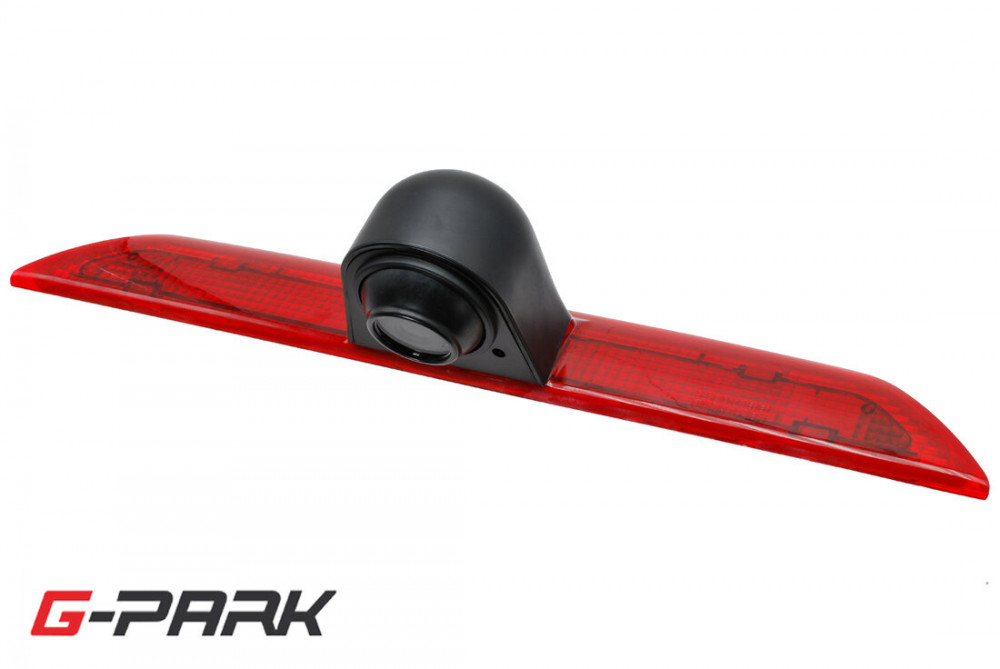

CCD parking camera integrated in the third brake light installed in the rear wing door.
Suitable for cars:
FORD Transit [V636] (2014->)
Installation in a car:
The camera is integrated in the third brake light located above the rear wing door, which replaces the original brake light cover. The original brake light under the red cover remains.
Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs
Function
NTSC TV standard
CMOS sensor
Technical parameters
- CMOS 1/4" sensor chip
- IR lighting with 9 LEDs (night vision)
- TV system: NTSC
- built-in lens: aperture f2.8mm
- scanning angles: 120°(D) / 95°(H) / 70°(V)
- mechanical camera tilt adjustment: +/-45°
- video output: 1.0V /75Ohm
- weather protection: IP69K
- vibration resistance: 10G
- number of scanning pixels: 510x492
- horizontal resolution: 420 TV lines
- white balance: automatic
- backlight compensation: automatic
- minimum lighting: 0LUX (illumination by infrared LEDs)
- signal/noise ratio: >48dB
- electronic aperture: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C
- camera connector: 4 pin screw
- connector on the monitor side: CINCH (RCA)
- cable length: 10m
