OE number: 2 21 901 2VT
Weight: 0.5 kg
Manufacturer: G-park

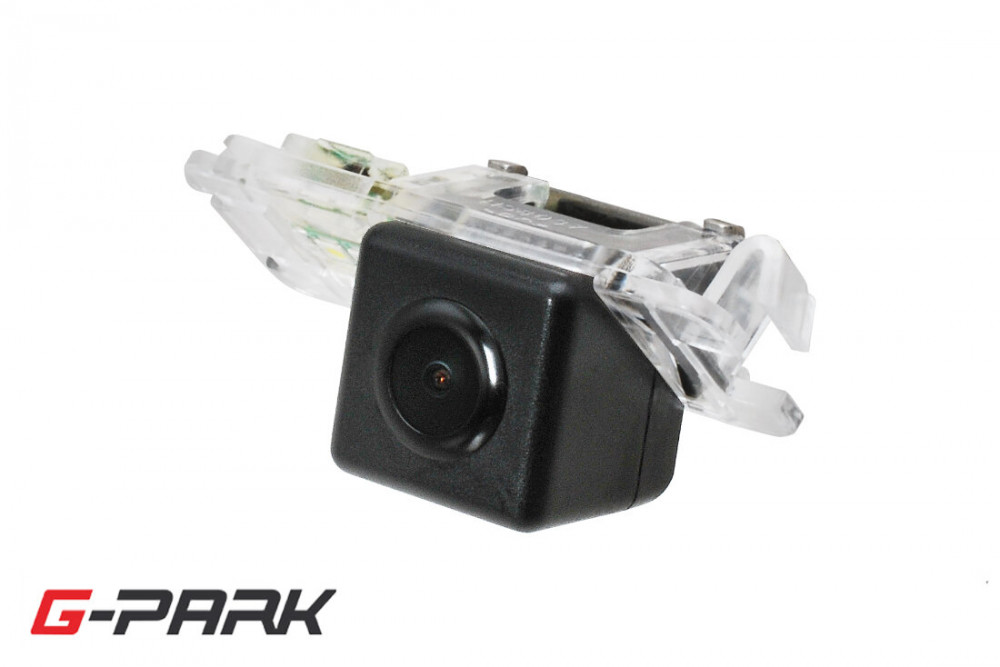

CCD parking camera for installation in the rear license plate lamp. The camera includes an LED light replacing the original lighting.
Suitable for cars:
FORD C-max [DX](12/2010-9/2019)
FORD Fiesta V [BE] (2002-2008)
FORD Focus II. Hatchback [C307] (2008-2011)
FORD Galaxy (2006->)
FORD Kuga I. (2/2008-2/2013)
FORD Kuga II. [DM2] (5/2012->)
FORD Mondeo [BA7] (2007->)
FORD Ranger (2012->) - only for cars with chrome bumper
FORD S-max (2006->)
FORD Transit [V363] (8/2013->)
FORD Transit Connect (9/2013->)
FORD Tourneo Connect (9/2013->)
FORD Transit Custom [FCC] (11/2012->)
FORD Tourneo Custom [FAC] (11/2012->) *
JAGUAR XJ
* during installation, it is necessary to adjust the hole for the camera

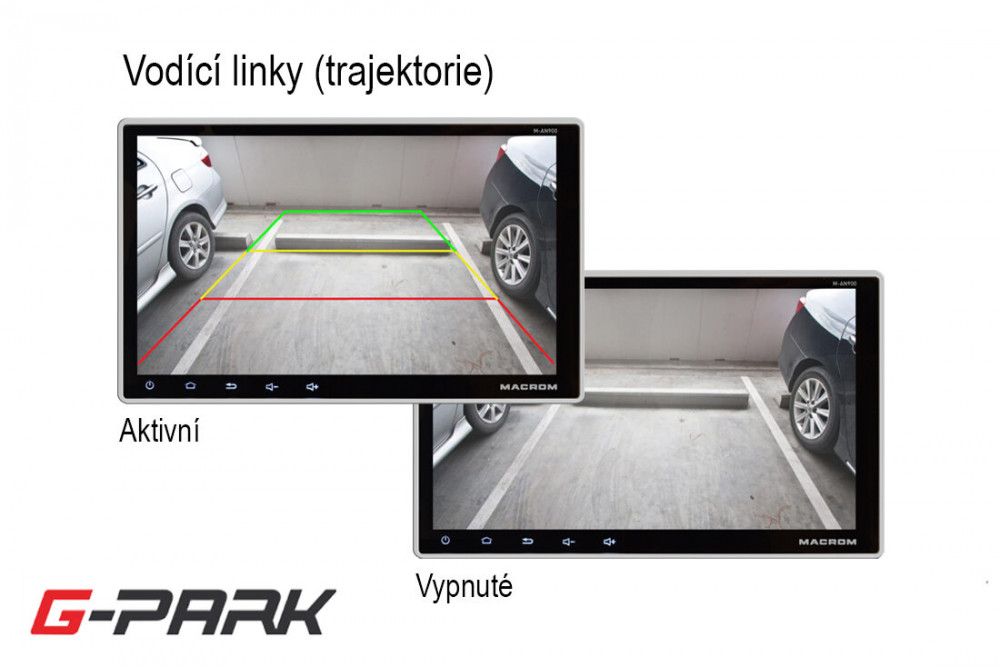

The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical properties:
- CCD 1/4" sensor chip

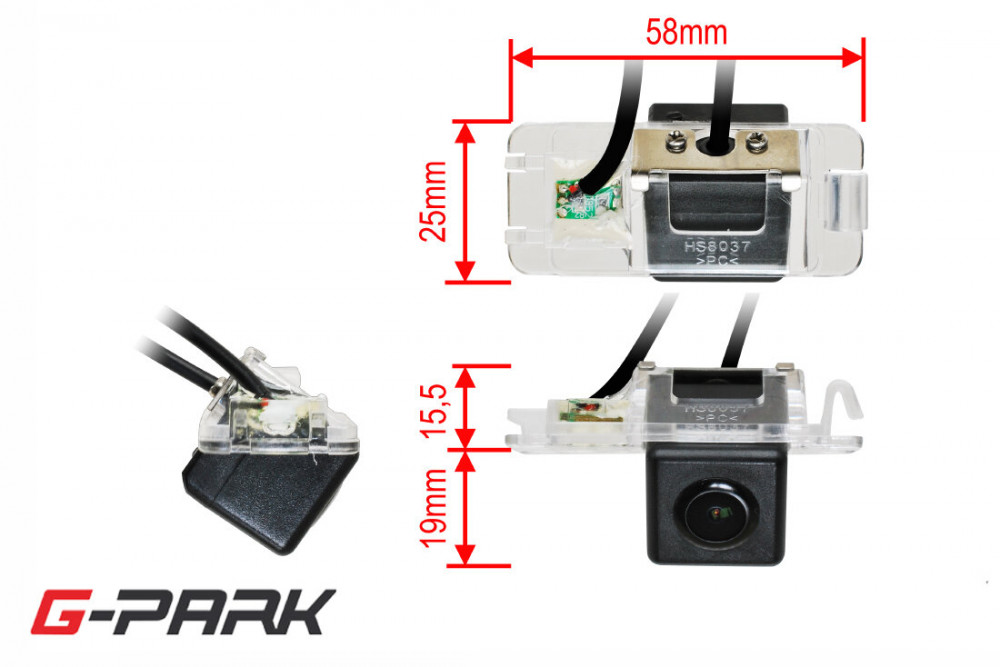

- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C

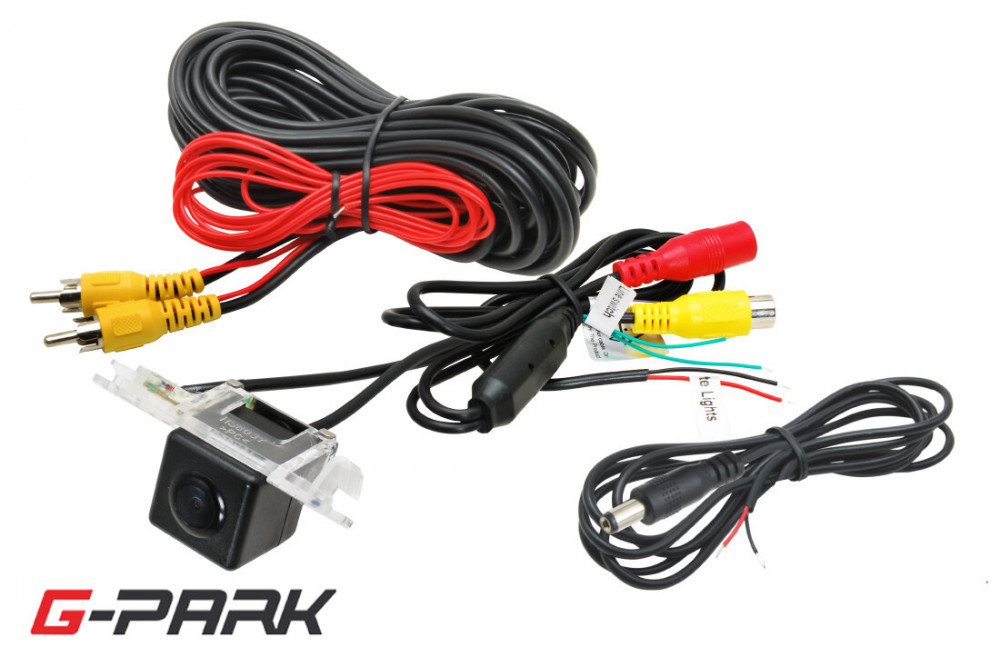

- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
Function
NTSC TV standard
CCD sensor
LED lighting RZ
