OE number: 2 21 916 VT
Weight: 0.5 kg
Manufacturer: G-Park

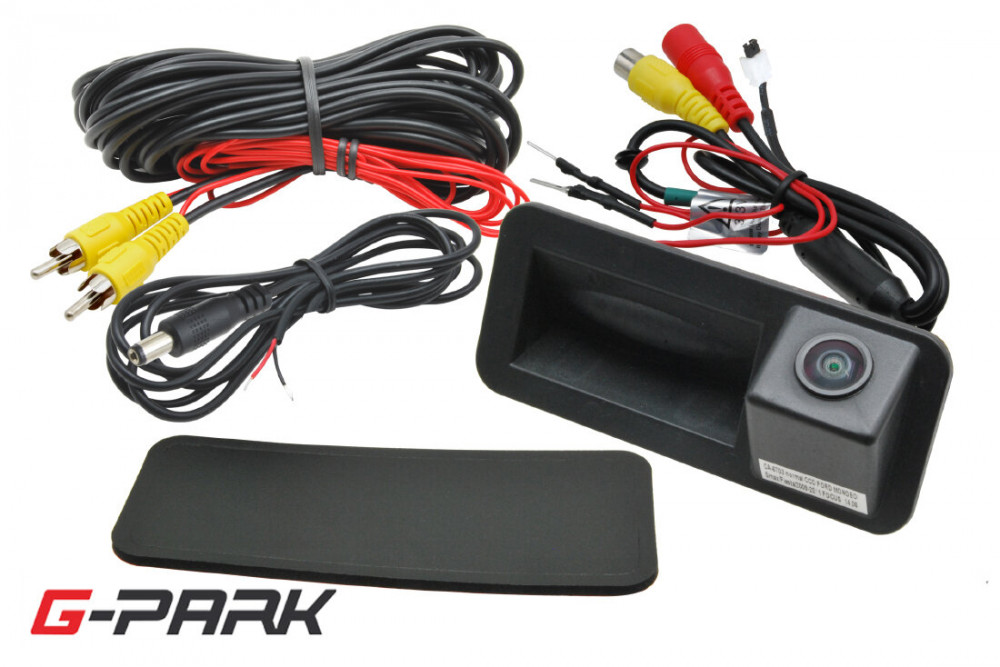

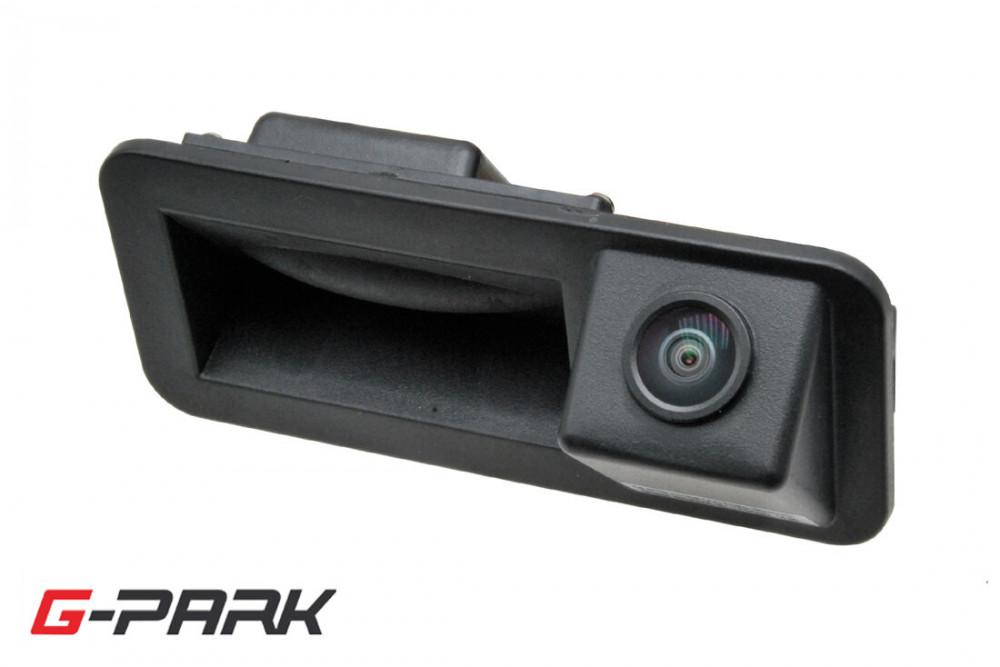

Parking camera installed in the opening handle of the 5th door.
Suitable for cars:
FORD Mondeo (2007->) sedan / hatchback / station wagon
FORD S-max (2006->)
FORD Fiesta (2008->)
FORD Kuga I. (2/2008-2/2013)
FORD Tourneo Custom [FAC] (11/2012->)

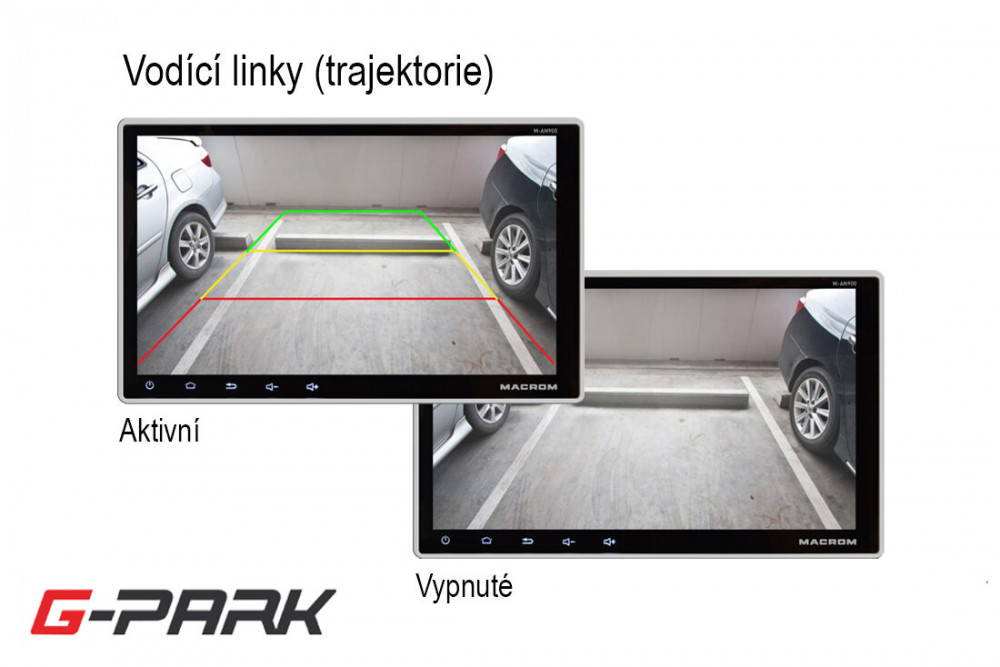

The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation when parking (this function can be turned off)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
