OE number: 2 21 847 VT
Weight: 0.5 kg
Manufacturer: G-Park

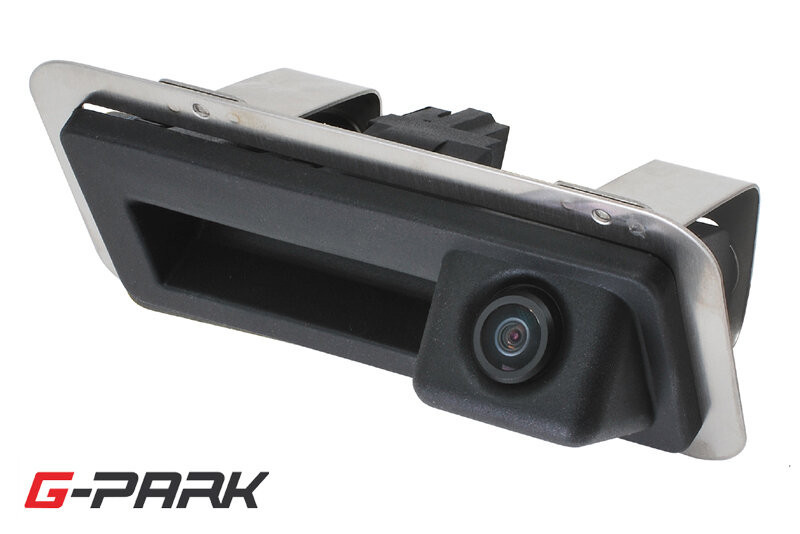

CCD parking camera installed in the opening handle of the 5th door.
Suitable for cars:
AUDI A4 [B9] (2015->)
ŠKODA Octavia III. (2016->)
ŠKODA Superb III. (2016->) Sedan
VW Tiguan II. [AD1] (2016->)
VW Touran III. [5T] (2015->)
VW Caddy V. (2015->) - hinged 5th door
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical details:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking with the possibility of exclusion
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
Adjustable guide lines (trajectories)
