2 21 849 2VT CCD Rear Parking Camera in the handle of 5 doors AUDI /SEAT / ŠKODA / VW

CCD Rear Parking Camera in the handle of 5 doors AUDI /SEAT / ŠKODA / VW

OE number: 2 21 849 2VT

Weight: 0.5 kg

Manufacturer: G-Park

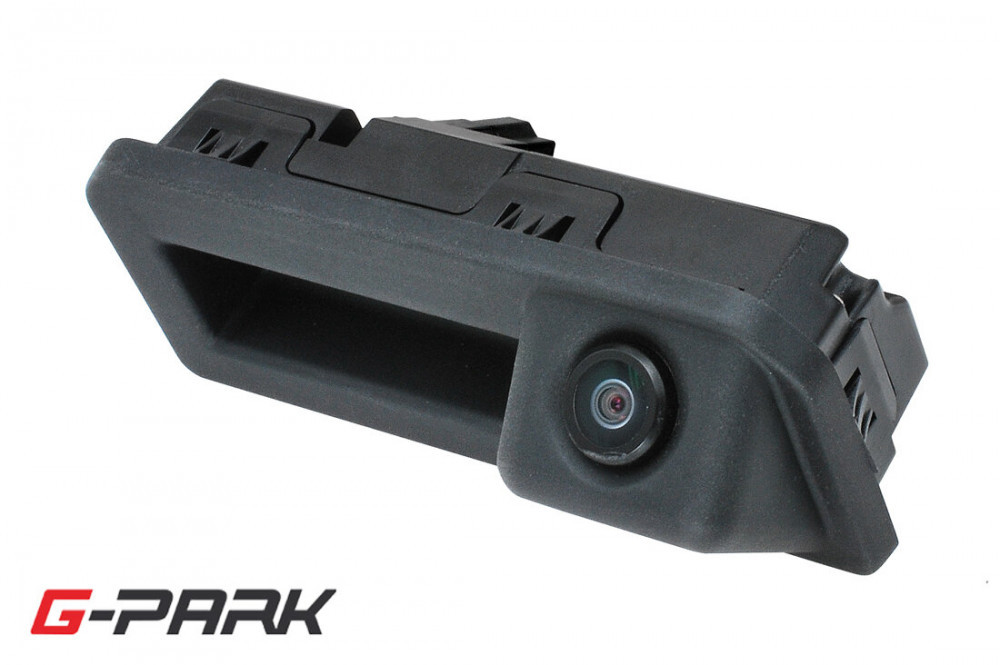

CCD parking camera installed in the opening handle of the 5th door.

Suitable for cars:
AUDI A1 [GB] (7/2018->)
AUDI A3 [8Y] (2020->)
AUDI A5 [F5] (2016->)
AUDI Q2 [GA] (2017->)
AUDI Q3 [F3] (6/2018->)
AUDI Q3 Sportback [F3] (6/2018->)
AUDI Q5 [FY] (5/2016->)
AUDI Q8 (2018->)
SEAT Arona (2018->)
SEAT Tarraco (2018->)
SEAT Ateca [KH] (2017->)
ŠKODA Superb III. (2016->) Estate
ŠKODA Karoq [NU7] (7/2017->)
ŠKODA Kamiq [NW] (7/2019->)
ŠKODA Kodiaq [NS7][NV7] (10/2016->)
VOLKSWAGEN T-Cross [C1] (7/2019->)

The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.

Technical details:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking - option to disable
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C

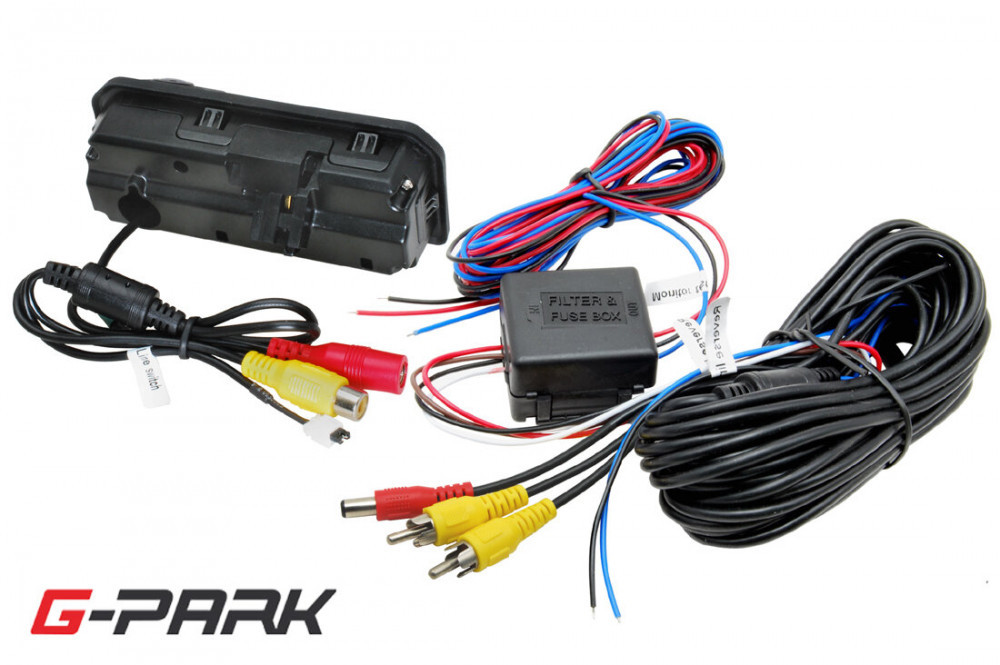

- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W

Function
NTSC TV standard
CCD sensor
Adjustable guide lines (trajectories)
