OE number: 2 21 882 VT
Weight: 0.5 kg
Manufacturer: G-Park

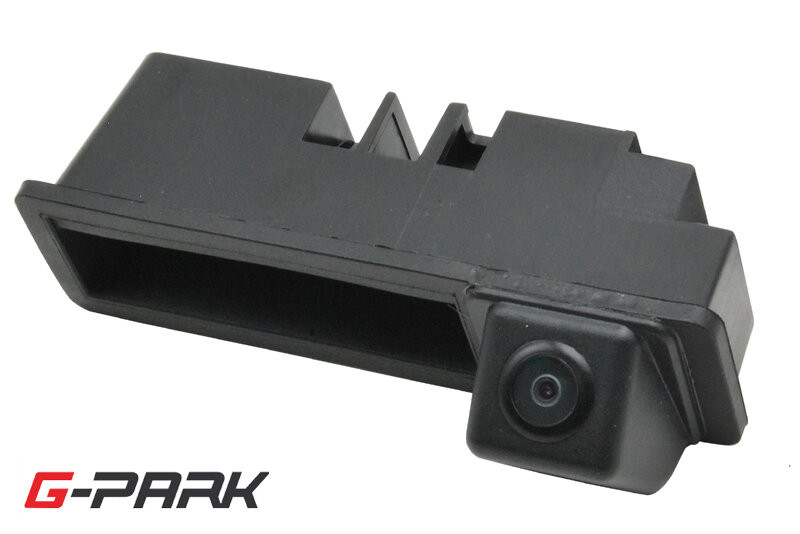

Parking camera installed in the opening handle of the 5th door
Suitable for cars:
AUDI A3 [8P] (5/2003-8/2012)
AUDI A4 [B7] (11/2004-6/2008)
AUDI A4 [B8] (2008->)
AUDI A5 (2012-2014)
AUDI A6 [4F] (2008-/2011)
AUDI Q7 [4L] (3/2006-1/2016)
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking (optional function)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C

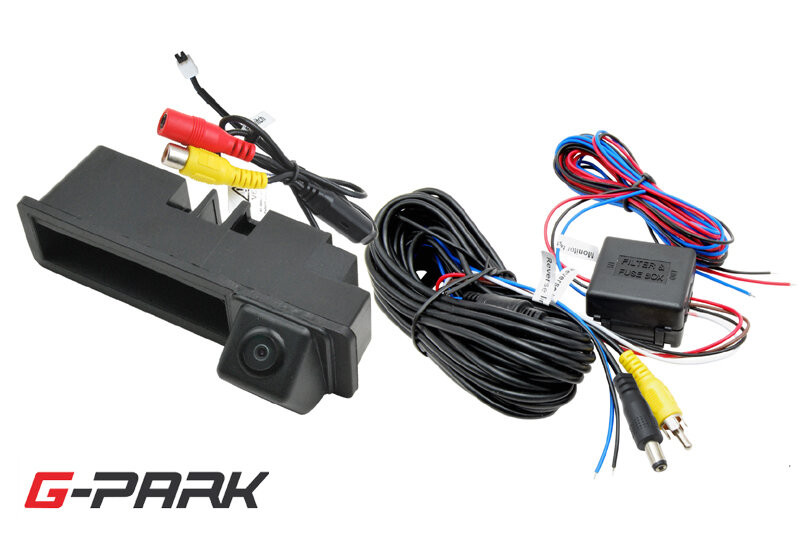

- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
Adjustable guide lines (trajectories)
