OE number: 2 21 988 2VT
Weight: 0.5 kg
Manufacturer: G-Park

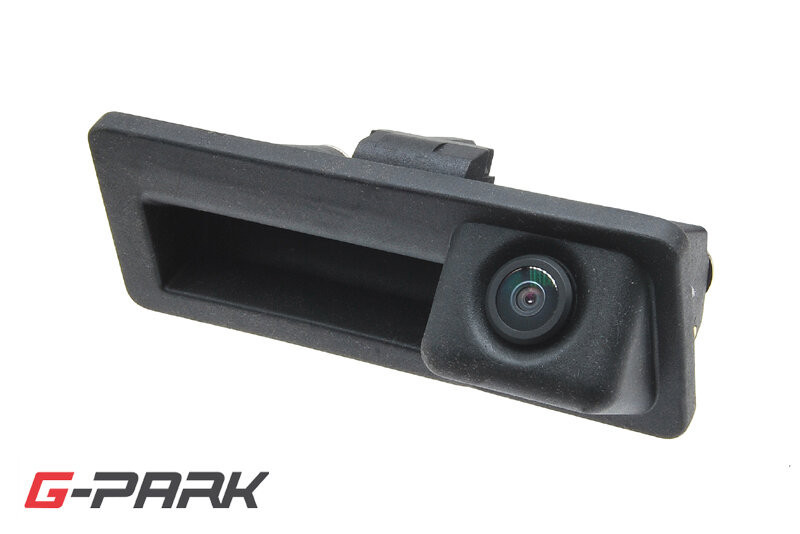

CCD parking camera installed in the opening handle of the 5th door.
Suitable for cars:
AUDI A3 [8V] (4/2012->)
AUDI A4 [B8] (2008->)
AUDI A5 Coupe [8T] (6/2007->)
AUDI A5 Sportback [8T] (9/2009->)
AUDI A6 (2012->)
AUDI A7 [4G] (2010-2015)
AUDI Q3 [U8] (6/2011->)
AUDI Q5 (2007->)
PORSCHE Cayenne II. (2010->)
ŠKODA Octavia III. (2013->)
VW Golf V. (10/2003->) Variant (combi)
VW Passat B7 [362] (8/2010->) - sedan
VW Passat B7 [365] (8/2010->) - Variant (combi)
VW Tiguan [5N_] (5/2007->)
VW Touran II. [1T3] (/2010->)
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical details:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking with the possibility of exclusion
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C

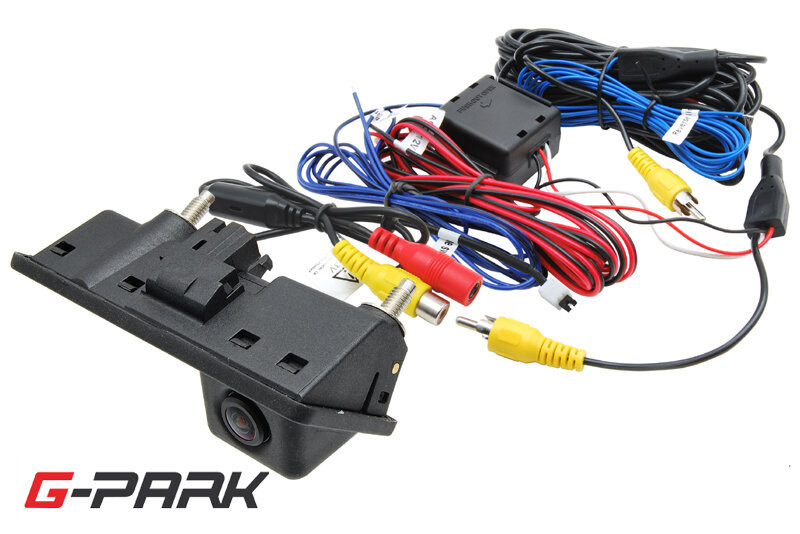

- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
Adjustable guide lines (trajectories)
