OE number: 2 21 883 VT
Weight: 0.5 kg
Manufacturer: G-Park

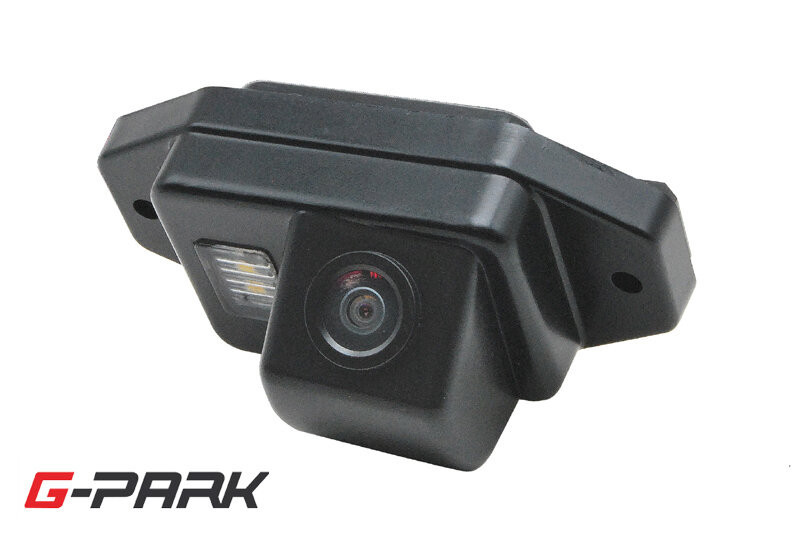

CCD parking camera for installation in place of the rear license plate light. The camera includes an LED light replacing the original lighting.
Suitable for cars:
TOYOTA Land Cruiser 100 [J10] (1/1998->)
TOYOTA Land Cruiser 120 [J12] (9/2002->)
TOYOTA Land Cruiser 200 [J20] (8/2007->)
for cars with a spare wheel located on the 5th door
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical details:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C

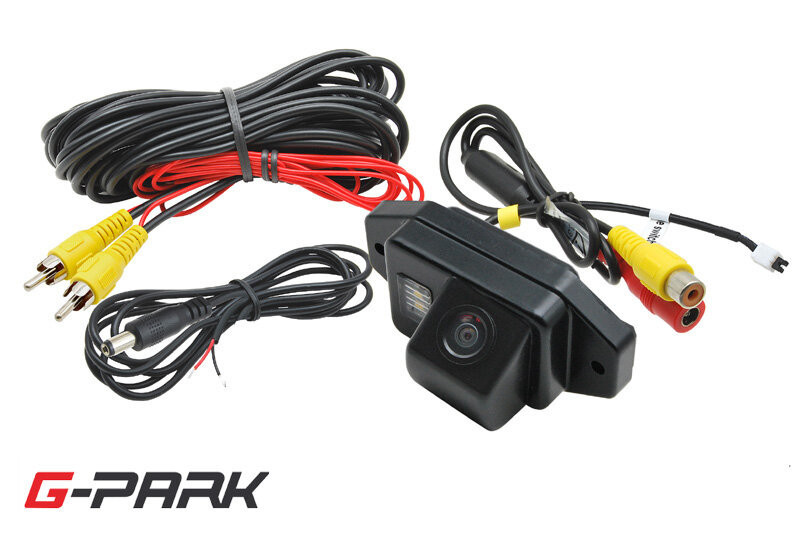

- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
LED lighting RZ
