OE number: 2 21 845
Weight: 0.5 kg
Manufacturer: G-Park

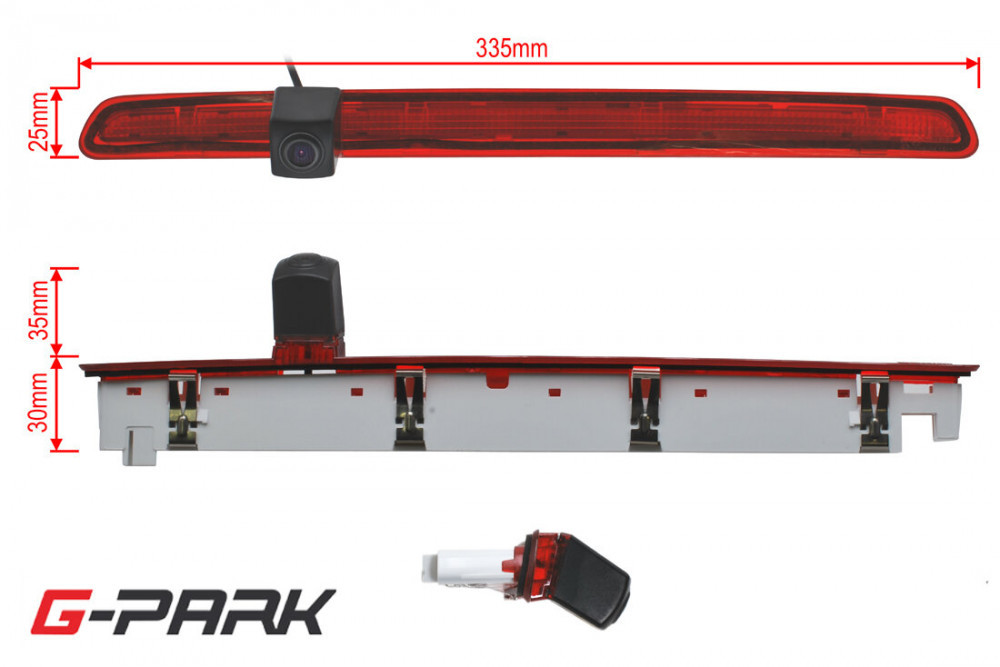

CCD parking camera integrated in the third brake light installed in the tailgate.
Suitable for cars:
VW Transporter T6 (2015->)
VW Caddy [2K] (Facelift 2015-2020) *1
only for cars with hinged doors
*1 - for cars with a rear window washer, it is necessary to drill a hole for the washer nozzle in the red cover of the light (the washer attachment is clipped inside the light)
Installation in a car:
The camera is integrated in the third brake light located at the top of the tailgate, which replaces the original brake light. The light signaling of the brake light is ensured by the original light. The connection connector is compatible with the original connector.
Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs
Function
NTSC TV standard
CCD sensor
NTSC TV standard CCD sensor
Technical parameters
- CCD 1/3" sensor chip
- diameter of the built-in lens: f: 2.8mm
- TV system: NTSC
- video output: 1.0V /75Ohm
- scanning angle: 170°
- weather protection: IP69K
- resistance to withdrawals: 10G

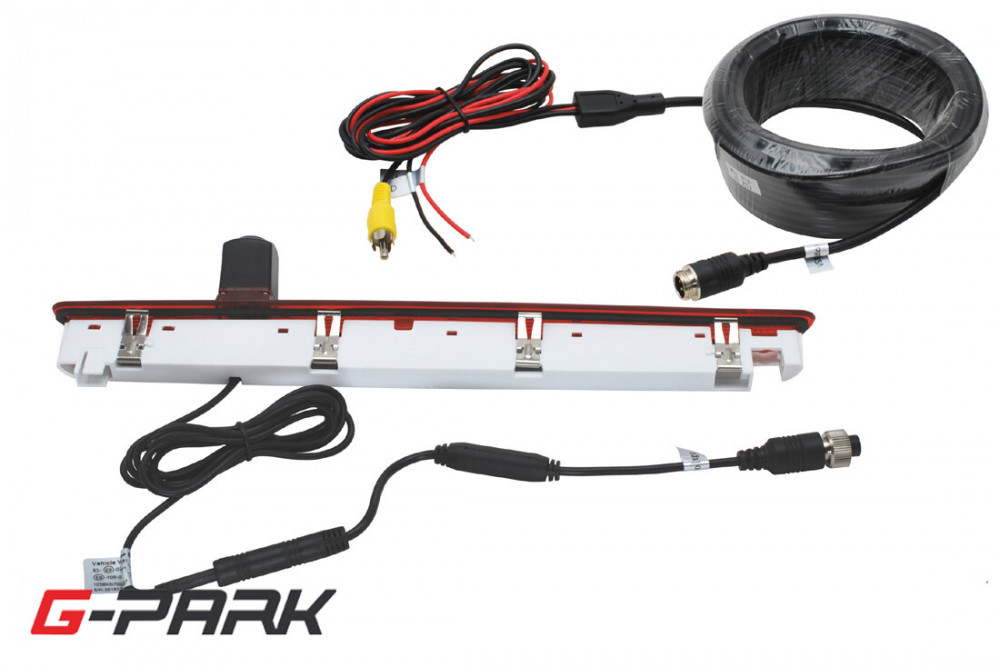

- camera connector: 4 pin screw
- connector on the monitor side: CINCH (RCA)
- cable length: 10m
- number of scanning pixels: 510x492
- horizontal resolution: 700 TV lines
- white balance: automatic
- minimum lighting: 0LUX (illumination by infrared LEDs)
- signal/noise ratio: >48dB
- electronic aperture: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C
