2 21 857 CCD Parking Camera VW Caddy III. (08-16) / IV. (16->)

CCD Parking Camera VW Caddy III. (08-16) / IV. (16->)

OE number: 2 21 857

Weight: 0.5 kg

Manufacturer: G-Park

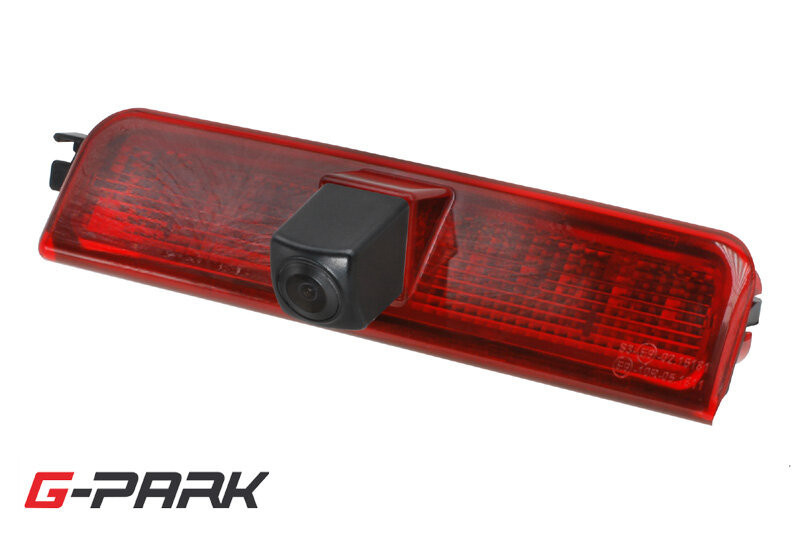

CCD parking camera integrated in the third brake light installed in the rear wing door.

Suitable for cars:
VW Caddy III. [2KA] (2008-4/2015)
for cars with hinged and hinged doors
VW Caddy IV. [2KA facelift] (5/2015->)
only for cars with swing doors

Technical properties:
- CCD 1/3" sensor chip
- diameter of the built-in lens: f: 2.8mm
- TV system: NTSC
- video output: 1.0V /75Ohm
- scanning angle: 170°
- weather protection: IP69K
- resistance to withdrawals: 10G
- camera connector: 4 pin screw
- connector on the monitor side: CINCH (RCA)
- cable length: 10m
- number of scanning pixels: 510x492
- horizontal resolution: 700 TV lines
- white balance: automatic
- minimum lighting: 0LUX (illumination by infrared LEDs)
- signal/noise ratio: >48dB
- electronic aperture: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C

Installation in a car:
The camera is integrated in the third brake light located in the left wing door, which replaces the original brake light. Light signaling is provided by integrated LEDs. The connection connector is compatible with the original connector.

Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs

Function
NTSC TV standard
CCD sensor
