OE number: 2 21 859
Weight: 0.5 kg
Manufacturer: G-Park

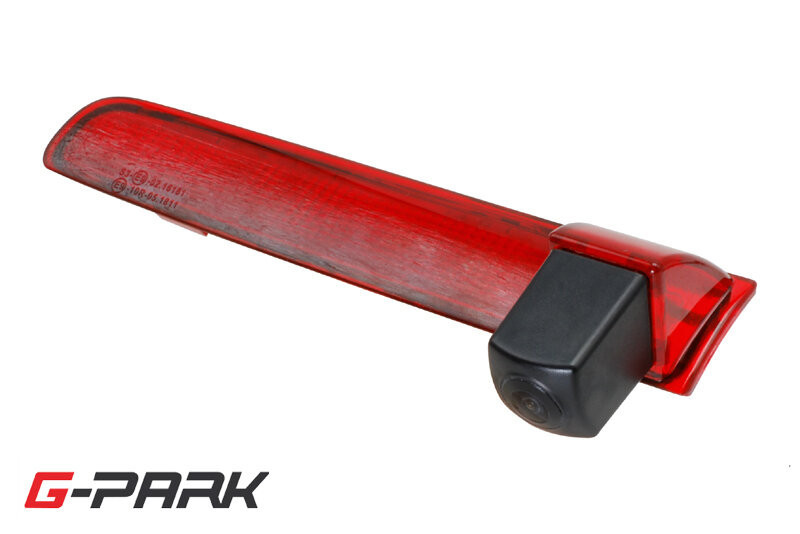

CCD parking camera integrated in the third brake light installed in the rear wing door.
Suitable for cars:
VW Transporter T5 [7H][7J] (facelift 2009->)
VW Transporter T6 (2015->)
for cars with wing doors
Technical properties:
- CCD 1/3" sensor chip
- diameter of the built-in lens: f: 2.8mm
- TV system: NTSC
- video output: 1.0V /75Ohm
- scanning angle: 170°
- weather protection: IP69K
- resistance to withdrawals: 10G
- camera connector: 4 pin screw
- connector on the monitor side: CINCH (RCA)
- cable length: 10m
- number of scanning pixels: 510x492
- horizontal resolution: 700 TV lines
- white balance: automatic
- minimum lighting: 0LUX (illumination by infrared LEDs)
- signal/noise ratio: >48dB
- electronic aperture: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C
Installation in a car:

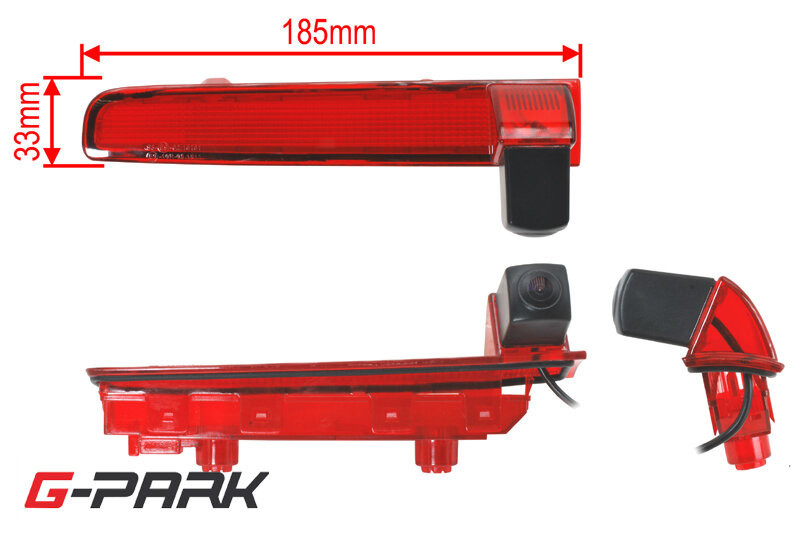

The camera is integrated in the third brake light located in the left wing door, which replaces the original brake light. The light signaling of the brake light is ensured by the original light. The connection connector is compatible with the original connector.
Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs
Function
NTSC TV standard
CCD sensor
