OE number: 2 21 860
Weight: 0.5 kg
Manufacturer: G-Park

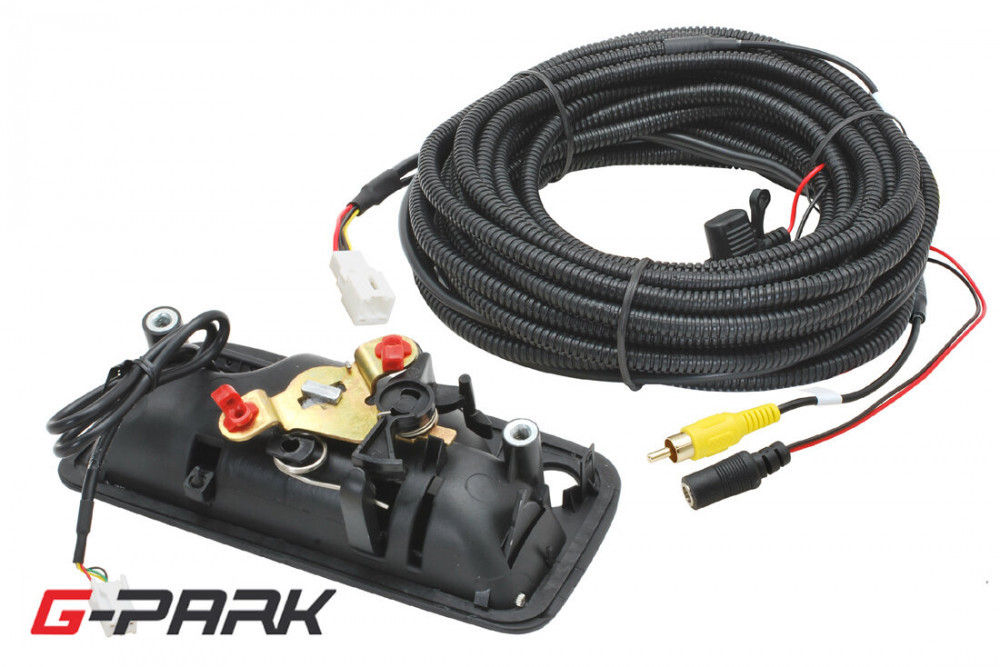

CCD rear parking camera in the luggage compartment opening handle.
Suitable for cars:
VW Amarok (2013->)
Function
NTSC TV standard
CCD sensor
NTSC TV standard CCD sensor
Technical parameters
- CCD 1/4" sensor chip
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- resolution: 640 x 480
- weather protection: IP68
- scanning angle: 168° x 136° x 100°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 8m terminated with CINCH connectors
- power cable length 3m
- power supply: 12V DC
- consumption: <1W
