OE number: 2 21 981 1VT
Weight: 0.5 kg
Manufacturer: G-Park

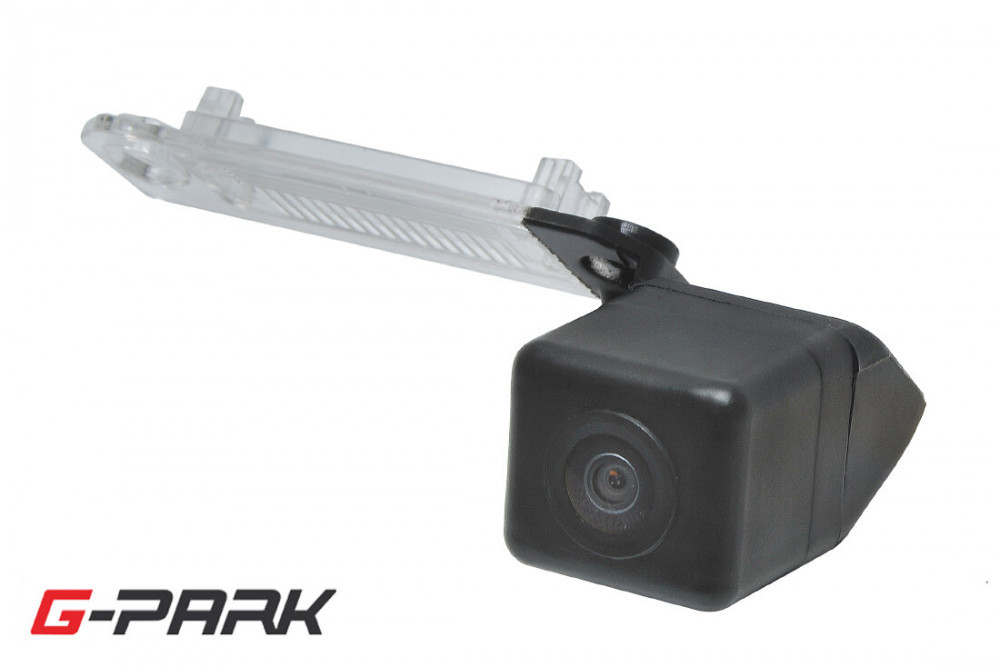

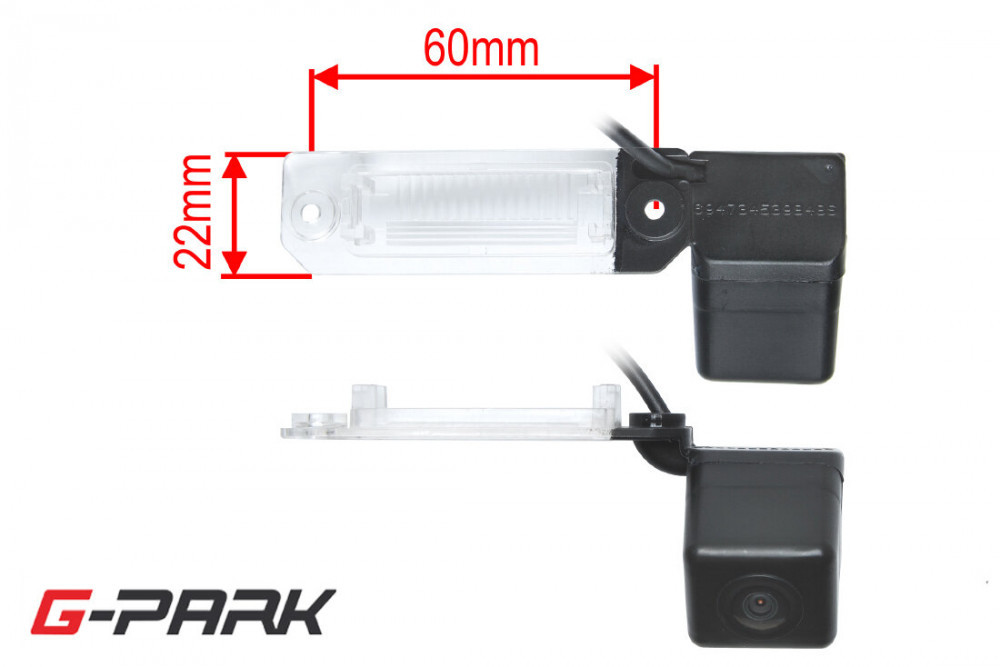

CCD parking camera for installation in the rear license plate lamp.
Suitable for cars:
ŠKODA Superb II. sedan (2008->)
VW Golf IV. (1997-2003) - cannot be used for combi
VW Golf V. [1K] (2003-2009) - cannot be used for combi
VW Polo IV. [9N2] (2001-2008)
VW Eos [1F] (5/2006-2011)
VW Passat [B6] sedan (2006-2011)
VW Passat CC (5/2008-2012)
VW Touran
VW Bora
VW Polo (1999-2006)
VW Beetle I. [9C1] (Facelift 2006-3/2011)

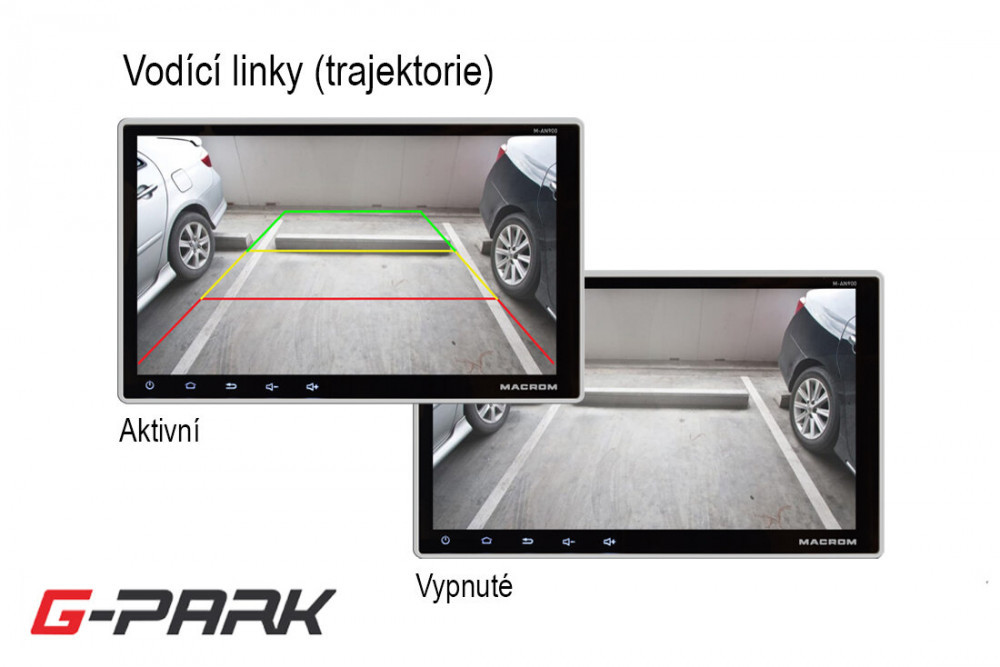

The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical details:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
RZ lighting with an original bulb
