2 21 982 2VT CCD Parking Camera VW Golf V. / Touareg / Tiguan, ŠKODA Yeti

CCD Parking Camera VW Golf V. / Touareg / Tiguan, ŠKODA Yeti

OE number: 2 21 982 2VT

Weight: 0.5 kg

Manufacturer: G-Park

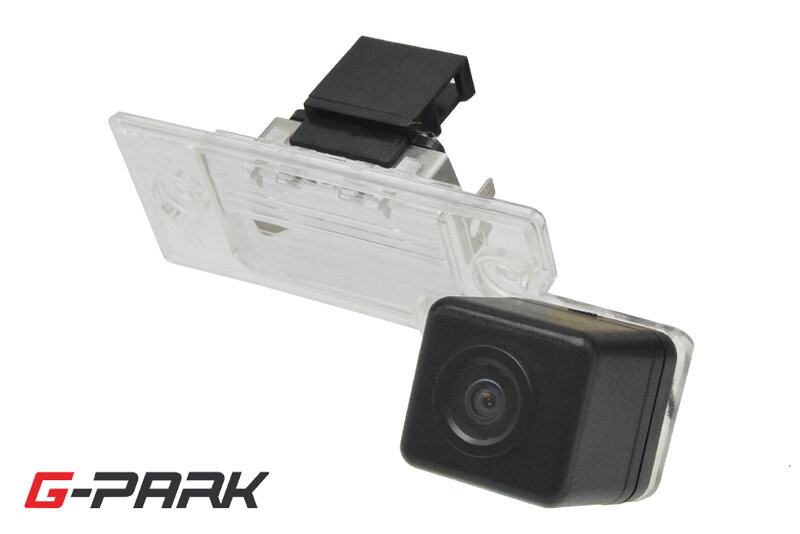

CCD parking camera for installation in the rear license plate lamp.

Suitable for cars:
VW Golf V Variant (2007-2009)
VW Touareg (2007-2010)
VW Tiguan [5N] (2007-2009)
ŠKODA Yeti (2008-2012)

The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.

- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking (optional function)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W

Installation in a car:
After removing the original license plate light, it is necessary to remove the bulb from this light and insert it into the camera holder. The camera is installed in the position of the original lighting with the original screws.

Function
NTSC TV standard
CCD sensor
RZ lighting with an original bulb
