OE number: 2 21 987 VT
Weight: 0.5 kg
Manufacturer: G-Park

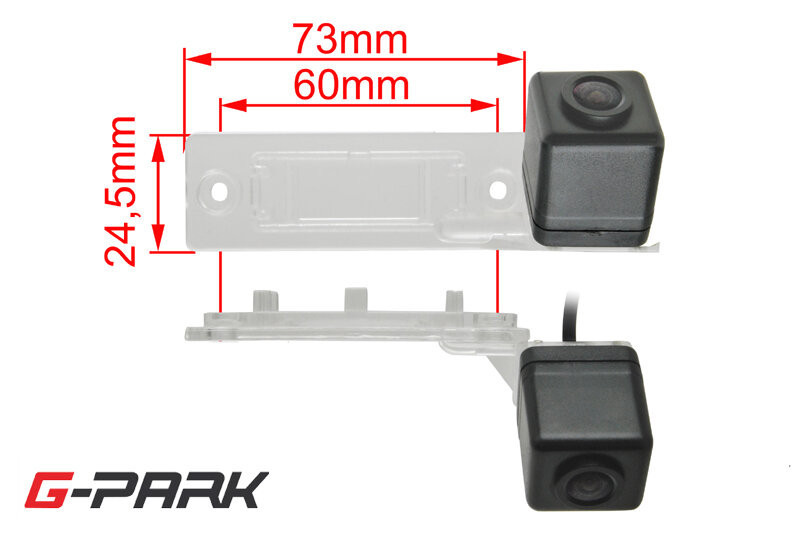

CCD parking camera for installation in the rear license plate lamp. The camera includes a place to place the contacts for the bulb from the original license plate light.
Suitable for cars:
VW Golf Plus (2005-2009)
VW Jetta V. (2006-2010)
VW Passat B5 Sedan (2001-2005)
VW Passat B6 Estate (2006-2009)
VW Touran (2003-2009)
VW Caddy (2004-2010)
VW Caddy (2010->)
VW Transporter T5 (2003->) hinged and wing doors
VW Multivan T5 (2003->)
VW Transporter T6 (2015->) hinged and wing doors
VW Multivan T6 (2015->)
ŠKODA Superb I. (12/2001-3/2008)
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical details:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking (optional function)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C

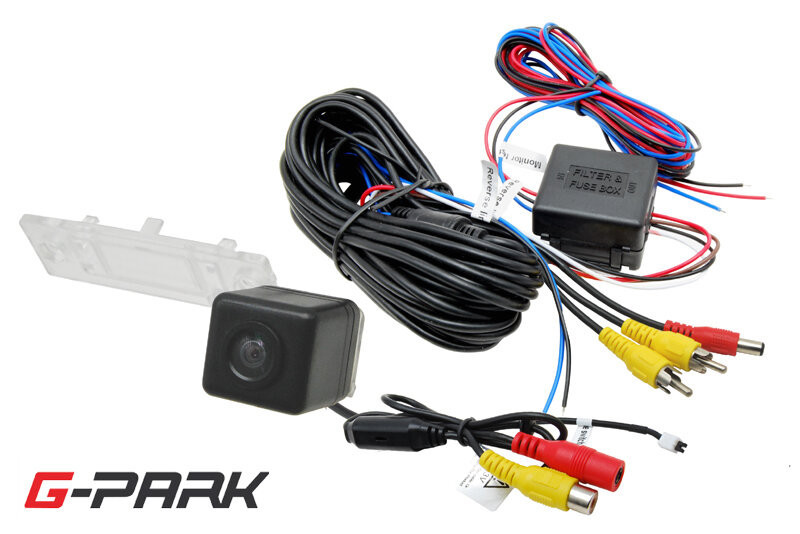

- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Installation in a car:
After removing the original license plate light, it is necessary to remove the bulb and contacts for fixing the bulb from this light and insert them into the camera holder. The camera is installed in the position of the original lighting with the original screws.
Function
NTSC TV standard
CCD sensor
RZ lighting with an original bulb
Adjustable guide lines (trajectories)
