OE number: 2 21 990 2VT
Weight: 0.5 kg
Manufacturer: G-Park

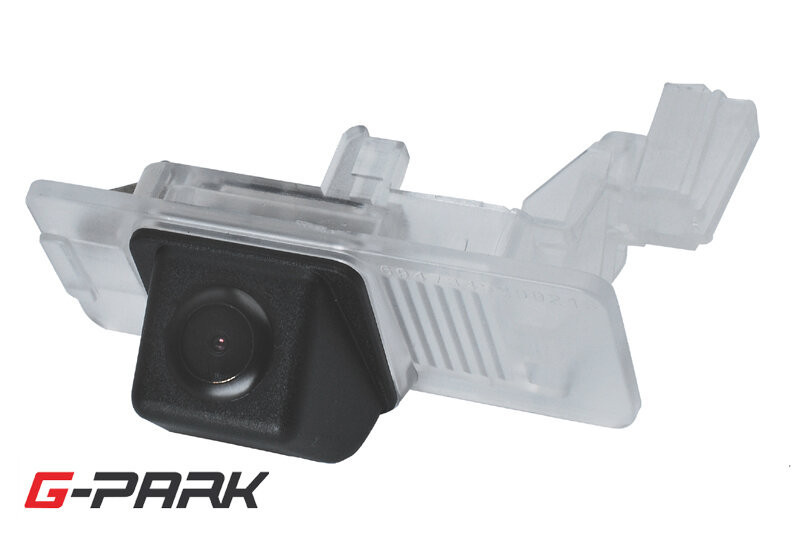

CCD parking camera for installation in place of the rear license plate light. The camera does not include a socket holder for placing the bulb. Use the holder from the original license plate light.
Suitable for cars:
ŠKODA Superb II. Estate (3/2008->)
ŠKODA Rapid [NH] (10/2012->)
ŠKODA Octavia III. (2013->)
ŠKODA Yeti (2012->)
ŠKODA Citigo (10/2011->)
VW Polo IV. (2005-2009)
VW Jetta
VW Golf V. (10/2003->)
VW Phaeton
VW Beetle II. [5C1] (4/2011->)
VW Passat (2011->)
VW Passat B6 (2005->)
VW Sharan II. (2010->)
SEAT Leon [1P] (2005->)
SEAT Altea XL
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- the possibility of displaying auxiliary trajectories (guide lines) on the monitor for orientation during parking
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C

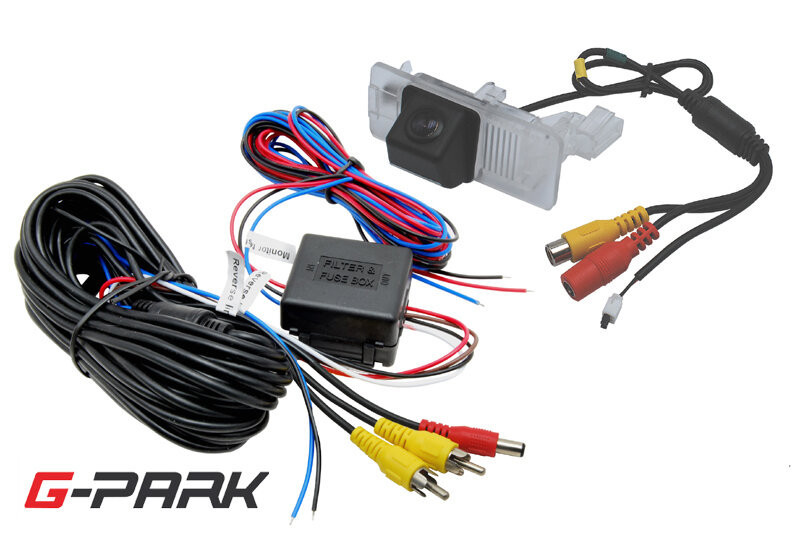

- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
RZ lighting with an original bulb
