HD Car Auto Reverse Backup Rear View Camera For VW Caddy Passat 3B Touran Jetta

HD Car Auto Reverse Backup Rear View Camera For VW Caddy Passat 3B Touran Jetta

• Model : 702612
• Product name : wide angle reversing camera
• Material : plastic & metal
• Color : black
• Voltage : 12V DC
• Current consumption : 130mA
• Waterproof rating : IP67
• Effective Pixels:NTSC:628(H) *535(V)
• Resolution : 480 TV lines
• Minimum illumination : 3Lux/F1.2(OLux when infrared LED on)
• Lens angle : 170°
• S/N rstio : more than 48db
• Electronic shutter : 1/50/1/60-1/15,000 seconds
• Video output : RCA connector, 1.0vp-p,75ohm
• Operating temperature : -30 to 60 degree RH95% Max
• Storage temperature : -35 to 70 degree RH95% Max
• Other items : automatiewhite balance, AGC and BLC

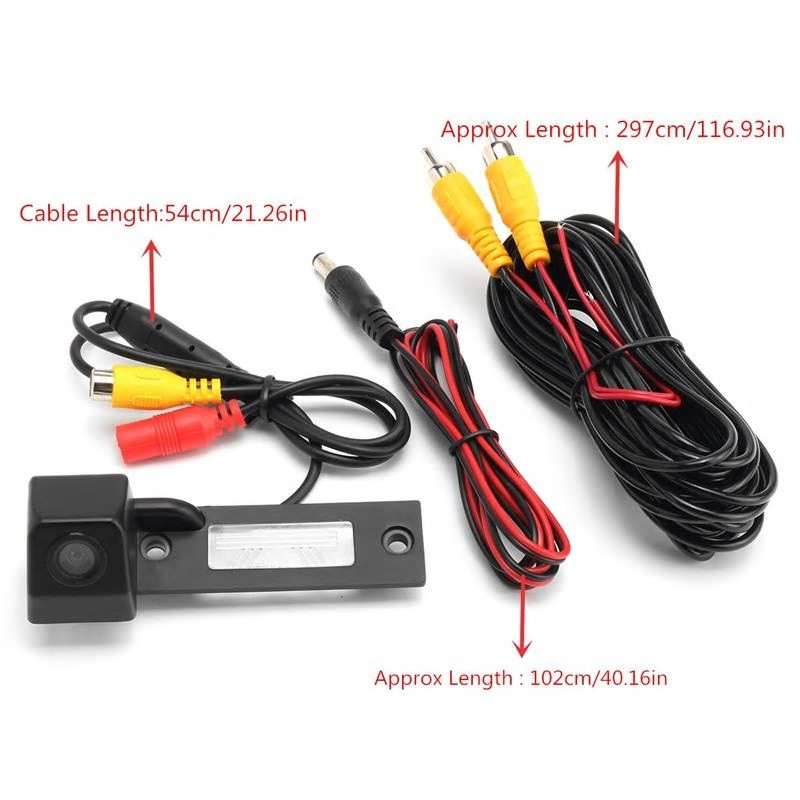

• Cable Length of Camera:Approx.54cm/21.26in
• Power Supply Cable Length:Approx.102cm/40.16in
• Video Cable Length:Approx. 297cm/116.93in
• Placement on vehicle : rear
• Quantity : 1pc

• 1.Shockproof, IP67, anti-interference and resistance to high/low temperature.
• 2.Super low-light, high quality image capabilities,high resolution, high sensitivity and high signal to noise ratio.
• 3.DSP digital chip, image clarity without distortion.
• 4.High-definition and 170 degree wide viewing angle.
• 5.Embedded mounting in rear bumper.

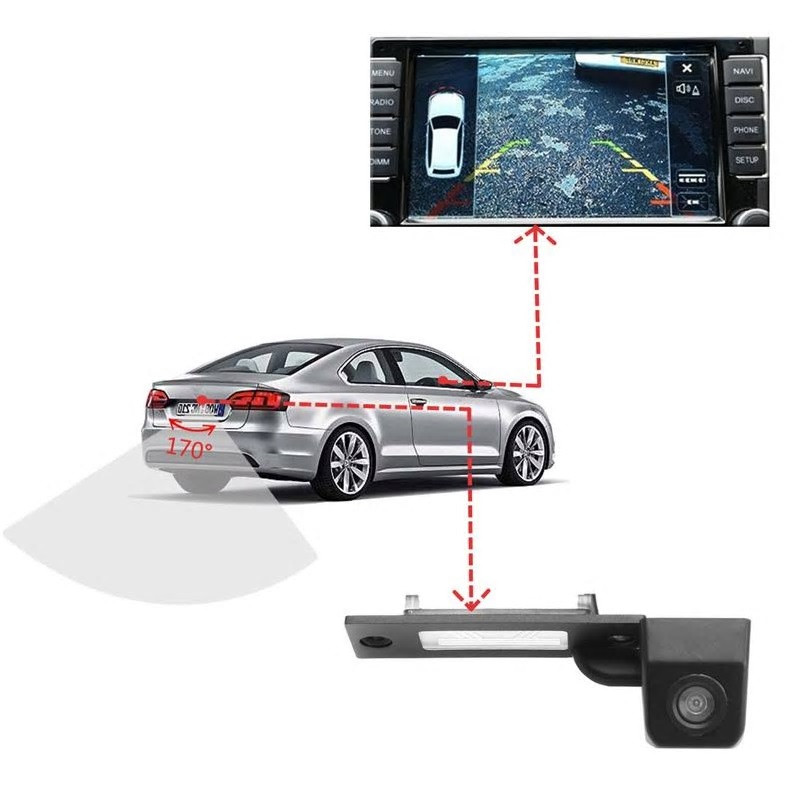

• 6.This camera can give you a full sight of the back of your car when you are driving.
• 7.To protect your car from collision with invisible obstacle, choose a high definition and good quality camera as ours.

• For VW CADDY   2004-2015
• For VW JETTA   2003-2014
• For VW GOLF PLUS   2005-2007
• For VW PASSAT 3C 3B   2001-2005
• For VW TOURAN   2003-2015
• For VW T5, T5.1 TRANSPORTER  2003-2015
• For Skoda's  SUPERB   2002-2008
• (The compatibility just for reference,Please make sure the item fit for your vehicle.)

• 1.Mount the camera inside the keyhole of your vehicle.
• 2.Adjust the lens of the camera to its best position.
• 3.Connect power cord to connect to your vehicle DC 12V power system.
• 4.Connect the video output(yellow) of the camera to the display in your vehicle.

• 1.We provide clear pictures ,measurement where possible.Please check as much as possible to make sure the item the one that you need.
• 2.The actual item maybe has slight color distinct with listing image due to different computer screens ,thanks for your understanding.
• 3.The size of item is manual measurement,please allow 0.5-1inch difference.(1inch=2.54cm)
• 4.Installation manual is not included.Professional Installation Is Highly Recommended！

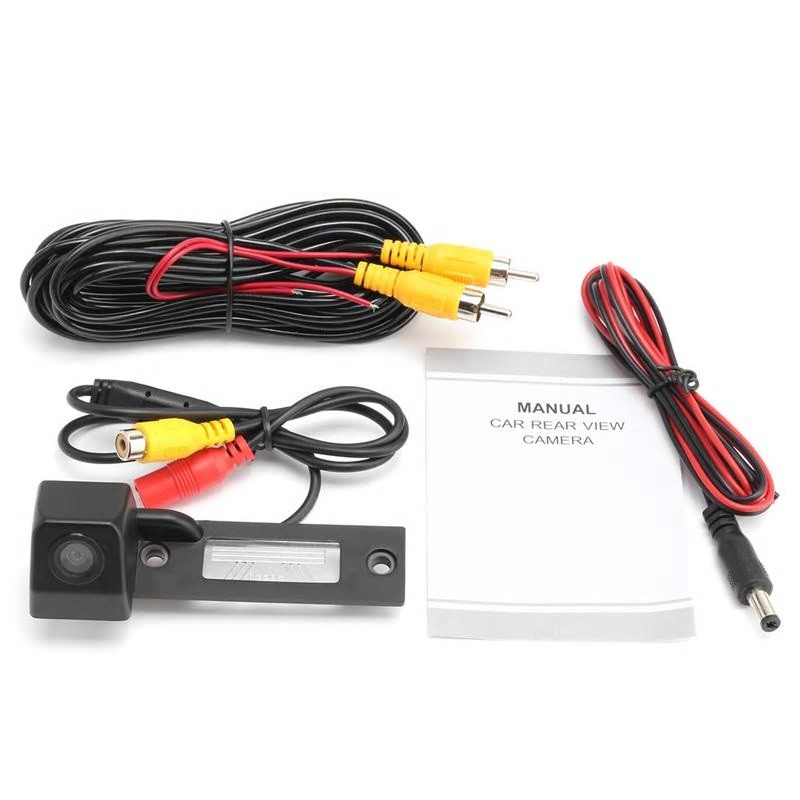

• 1 x car rear view camera
• 1 x video cable
• 1 x power cable
• 1 x manual
