OE number: 2 21 831
Weight: 0.5 kg
Manufacturer: G-park

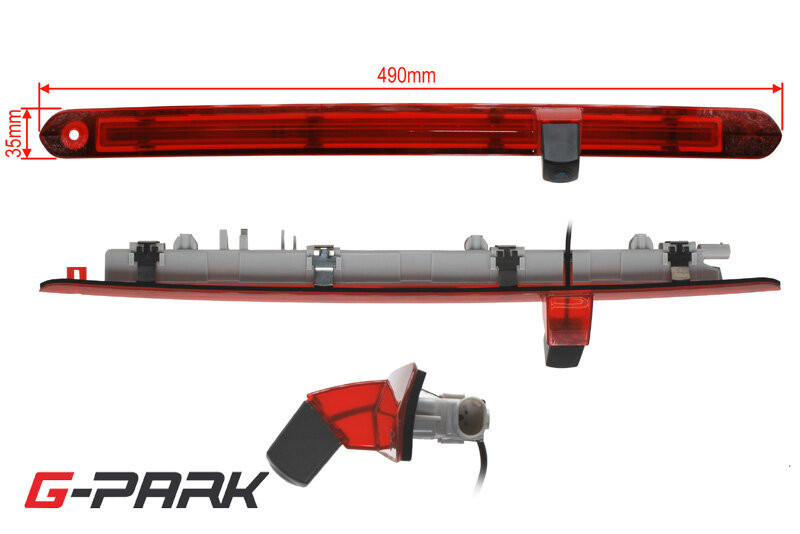

CCD parking camera integrated in the third brake light installed in the tailgate
Suitable for cars:
MERCEDES Vito III. [W447] (2015->)
MERCEDES V-Class [W447] (3/2014->)
for cars with hinged doors without opening glass.
Technical properties:
- CCD 1/3" sensor chip
- diameter of the built-in lens: f: 2.8mm
- TV system: NTSC
- video output: 1.0V /75Ohm
- scanning angle: 170°
- weather protection: IP69K
- resistance to withdrawals: 10G
- camera connector: 4 pin screw
- connector on the monitor side: CINCH (RCA)
- cable length: 10m
- number of scanning pixels: 510x492
- horizontal resolution: 700 TV lines
- white balance: automatic
- minimum lighting: 0.1LUX
- signal/noise ratio: >48dB
- electronic aperture: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C
Installation in a car:
The camera is integrated in the third brake light located at the top of the tailgate, which replaces the original brake light. The light signaling of the brake light is ensured by the original light. The connection connector is compatible with the original connector.
Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs
E9 10R-05.1811 (S3-E9-02.16181)
Function
NTSC TV standard
CCD sensor
RZ lighting with an original bulb
