OE number: 2 21 843
Weight: 0.5 kg
Manufacturer: G-park

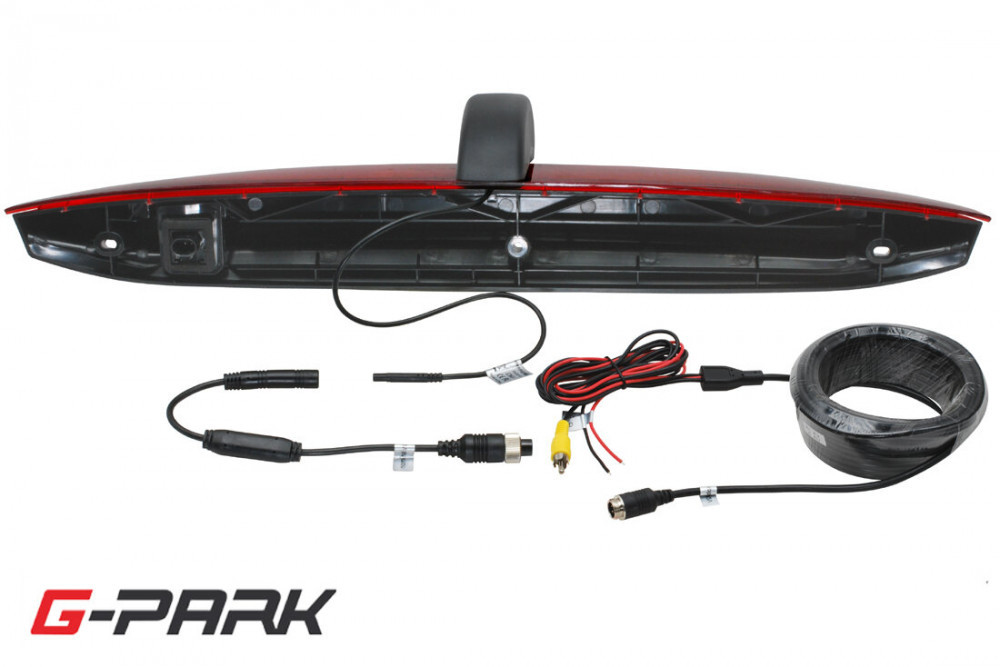

CCD parking camera integrated in the third brake light installed above the rear wing door.
Suitable for cars:
MERCEDES Vito III. [W447] (2015->)
for cars with wing doors
Installation in a car:

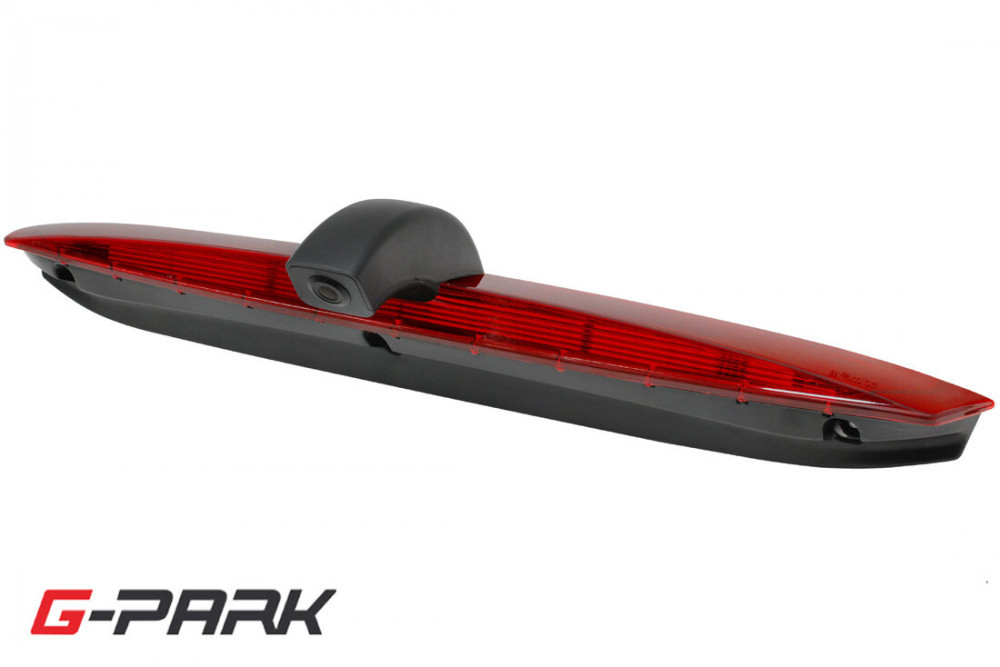

The camera is integrated in the third brake light located above the rear wing door, which replaces the original brake light. The light signaling of the brake light is provided by integrated LEDs. The connection connector is compatible with the original connector.
Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs
E9 10R-05.1811 (S3-E9-02.16181)
Function
NTSC TV standard
CCD sensor
Technical parameters
- CCD 1/3" sensor chip
- diameter of the built-in lens: f: 2.8mm
- TV system: NTSC
- video output: 1.0V /75Ohm
- scanning angle: 170°
- weather protection: IP69K
- resistance to withdrawals: 10G
- camera connector: 4 pin screw
- connector on the monitor side: CINCH (RCA)
- cable length: 10m
- number of scanning pixels: 510x492
- horizontal resolution: 700 TV lines
- white balance: automatic
- minimum lighting: 0.1LUX
- signal/noise ratio: >48dB
- electronic aperture: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C
