OE number: 2 21 872 1VT
Weight: 0.5 kg
Manufacturer: G-Park

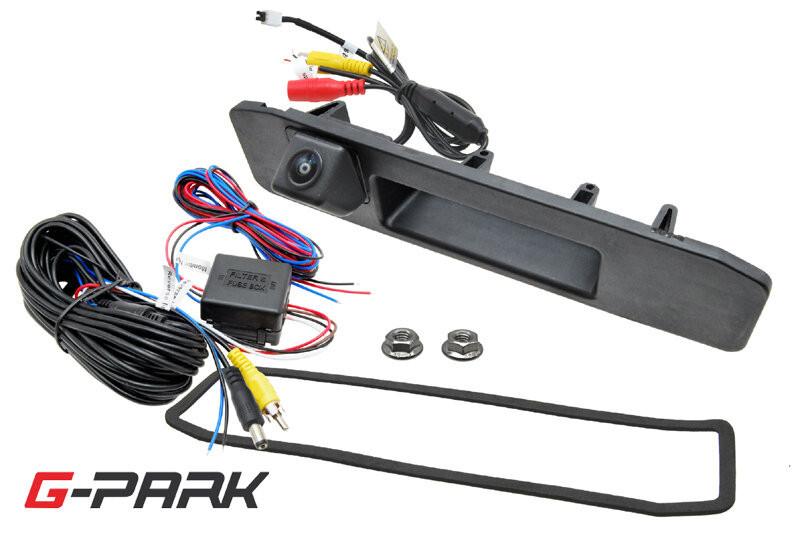

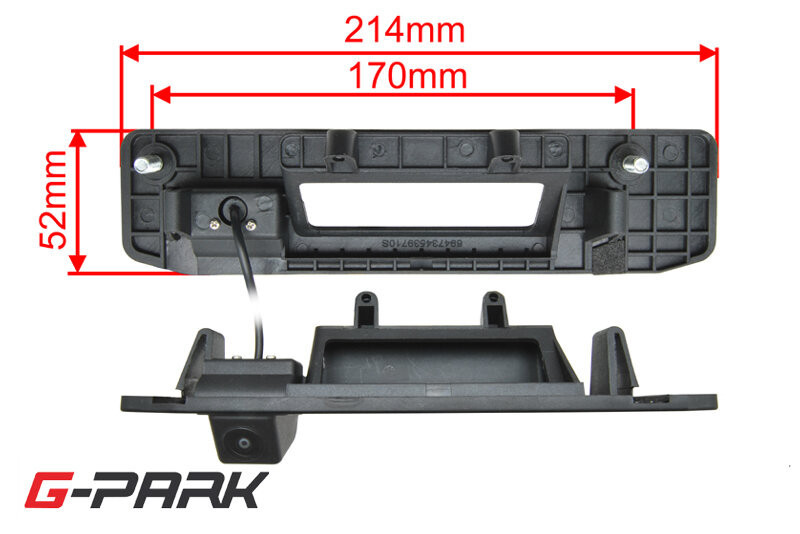

Parking camera installed in the opening handle of the 5th door.
Suitable for cars:
MERCEDES A-class [W176] (6/2012->)
MERCEDES C-class [C205] (2/2014->) - station wagon
MERCEDES GLA [X156] (2014->)
MERCEDES GLC [X253] (2015->)
MERCEDES GL-class [X166] (2015->)
MERCEDES M-class [W166] (2013-2015)
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for parking orientation (optional)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
Guiding trajectories (lines)
NTSC TV standard
CCD sensor
