2 21 940 VT CCD Parking Camera MERCEDES C [W204] / E [W212]

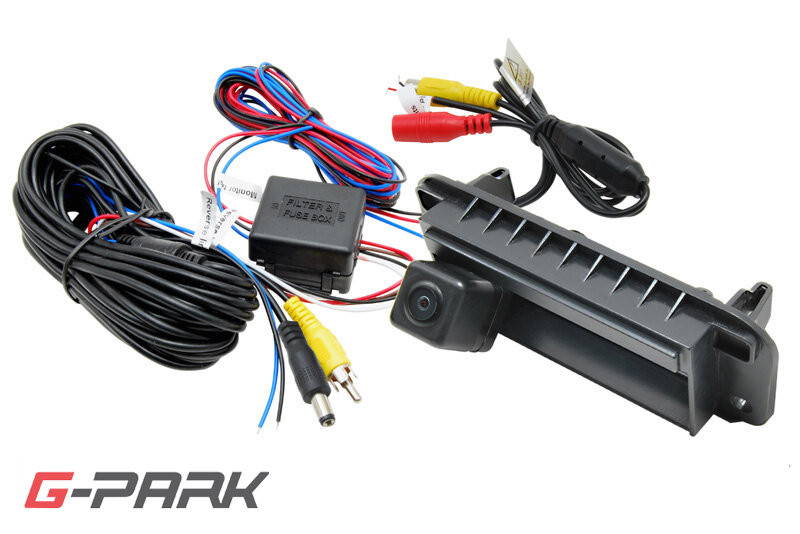

CCD Parking Camera MERCEDES C [W204] / E [W212]

OE number: 2 21 940 VT

Weight: 0.5 kg

Manufacturer: G-Park

Parking camera installed in the opening handle of the 5th door.

Suitable for cars:
MERCEDES C-class [W204] (2007-2009)
MERCEDES E-class [W212] (2009->)

The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.

Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W

Function
Guiding trajectories (lines)
NTSC TV standard
CCD sensor
