OE number: 2 21 944
Weight: 0.5 kg
Manufacturer: G-Park

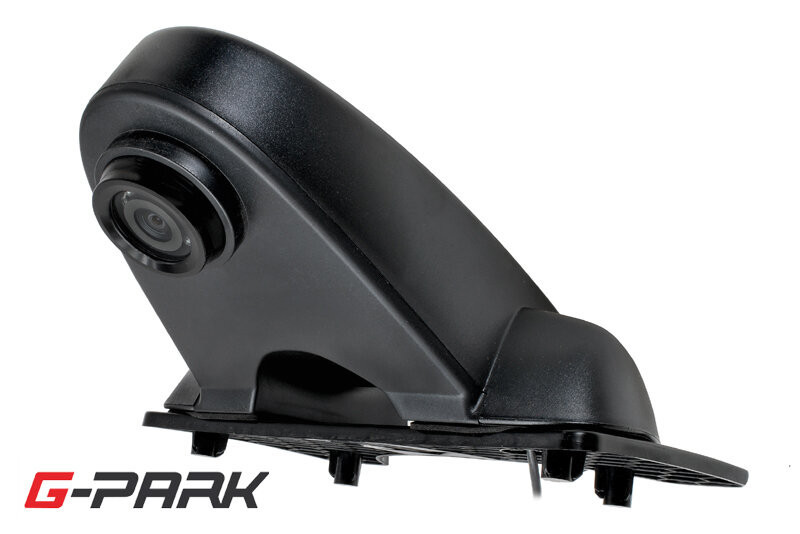

CCD parking camera for installation above the rear door.
Suitable for cars:
MERCEDES Sprinter [W906] (2006->)
VW Crafter I. (4/2006-2017)
FIAT Ducato (6/2006-9/2011)
CITROEN Jumper (2006->)
PEUGEOT Boxer (2006->)

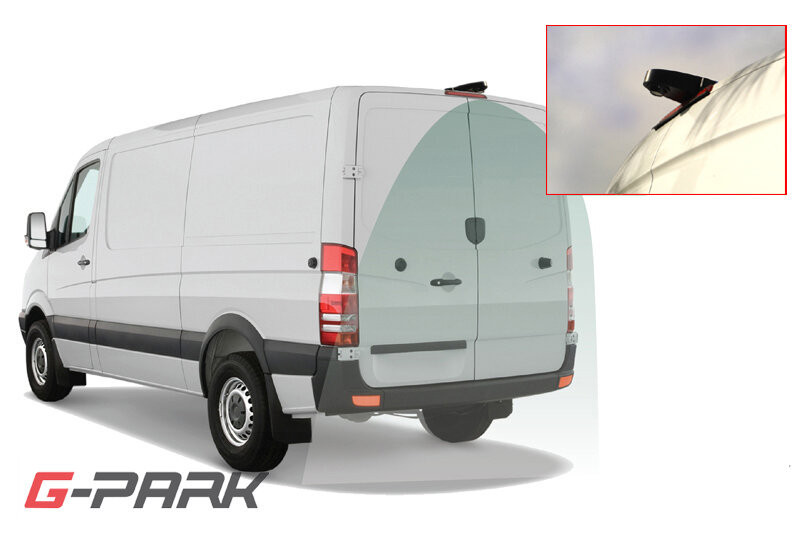

Universal use on the rear edge of the roof
- same location as OEM camera

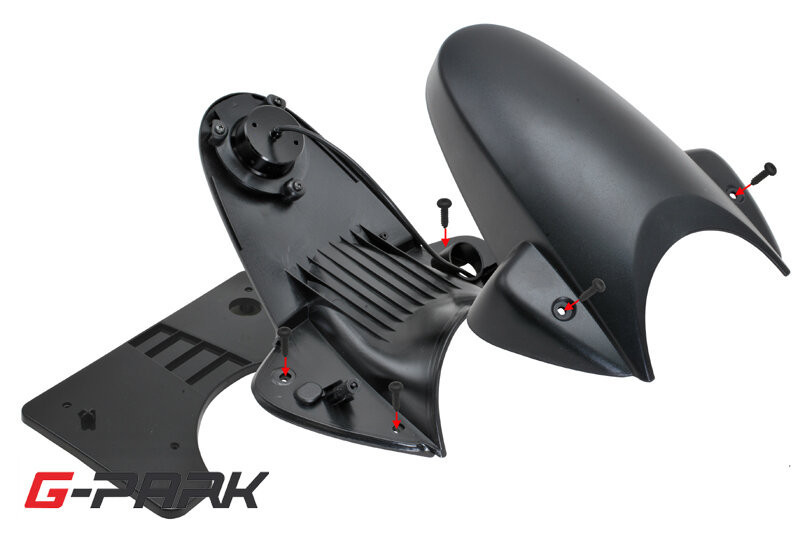

- attachment to the original openings in the bodywork
- CCD 1/4" sensor chip
- lens diameter 19mm
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
