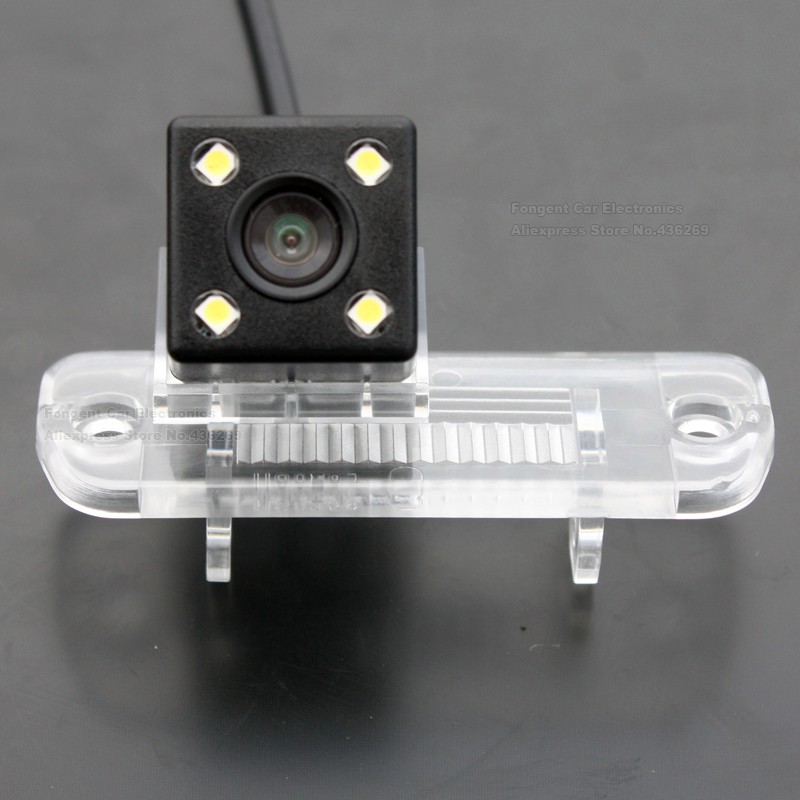

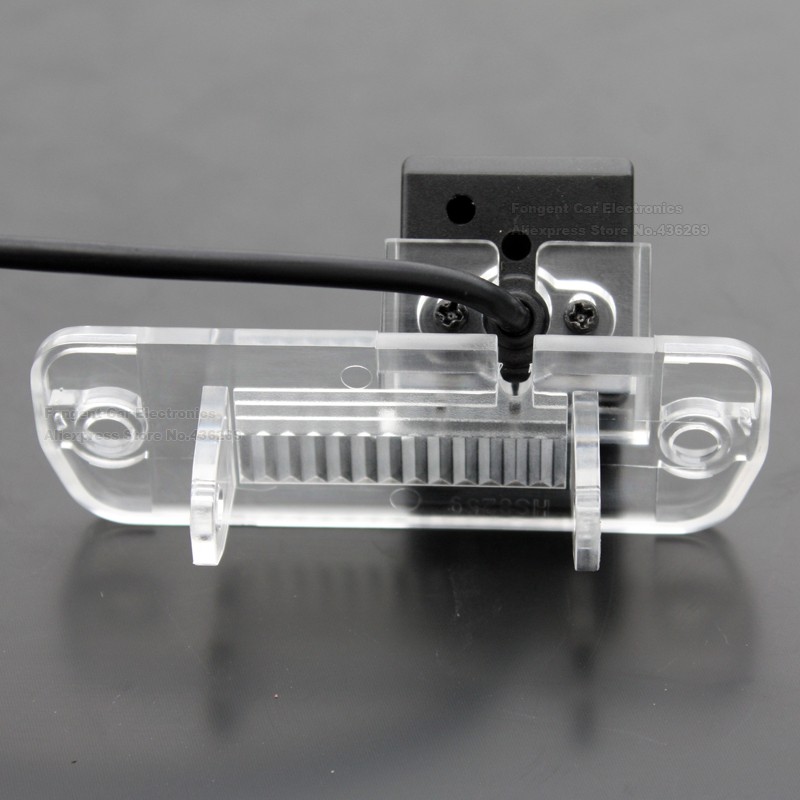

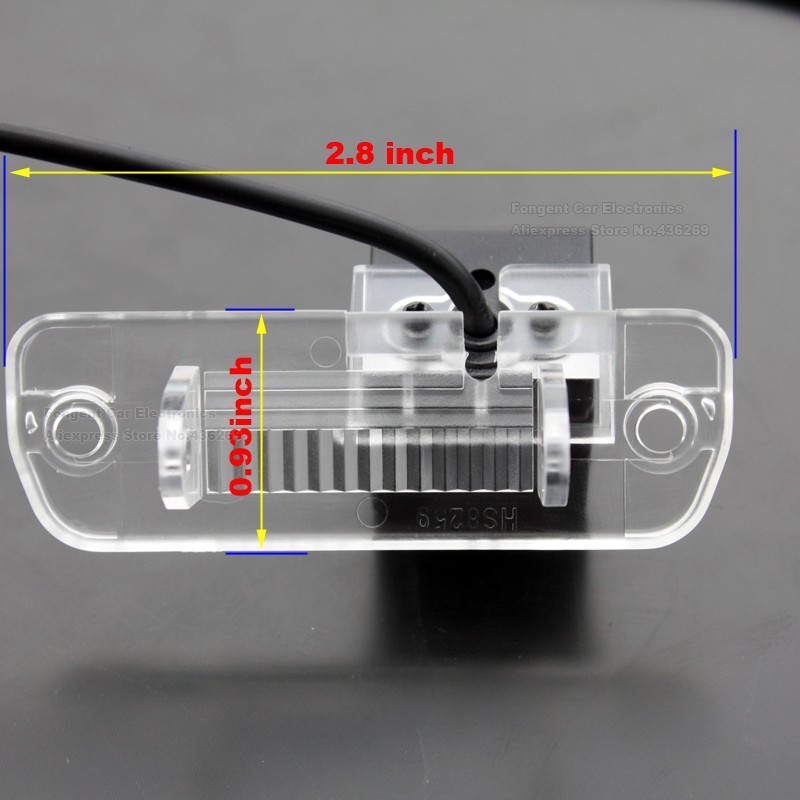

Rear View Camera for Mercedes Benz ML350 W220 R CLS W203 W211 W209 W219 GLS 300 W164 ML450 ML350 ML300 ML250

Signal System: PAL/NTSC

Resolution: 480 TV lines (Enhanced) 648*488 Pixels

Lens Angle: 170 degrees

Sensing Area:3.6mm x 2.7mm

Video Output: RCA/4 Pin Din, 1.0 Vpp composite video at 75ohms

Current Consumption:Max. 150 mA

Working Voltage: 12V DC

Electronic Shutter:1/50(PAL)/1/60(NTSC)~1/100,000 Seconds

Minimum Illumination: 0.3Lux (day), 0Lux (with IR)

S/N Ratio: Better than 48 DB

Work Environment: -40 °C~ +80 °C, Rh 95% Max

Anti-vibration:10 g

Power Consumption: 100mA

Active Power: ≥1W

Min. Illumination: 0.1 Lux

Waterproof Grade: IP68 (Protected against ingress of dust and effect of immersion less than 1 meter depth.)

Special Function: Auto White Blance, AGC, Backlight Compensation.

For models:

 Mercedes-Benz ML350

 Mercedes-Benz R500 2006 2007 2008

 Mercedes-Benz R63 AMG 2007

 Mercedes-Benz R350 2006 2007 2008 2009 2012 2013 2014 2015

 Mercedes-Benz R320 2007 2008 2009

 Mercedes Benz W220 1998~2005

 Mercedes Benz S280 S320 S400 / CDI 1998~2005

 Mercedes Benz S430 S500 S600 1998~2005

 Mercedes Benz S55 S63 S65 2000~2005

 Mercedes R CLS W203 W211 W209 A160 W219 GLS 300

 Mercedes Benz M ML W164 ML450 ML350 ML300 ML250
