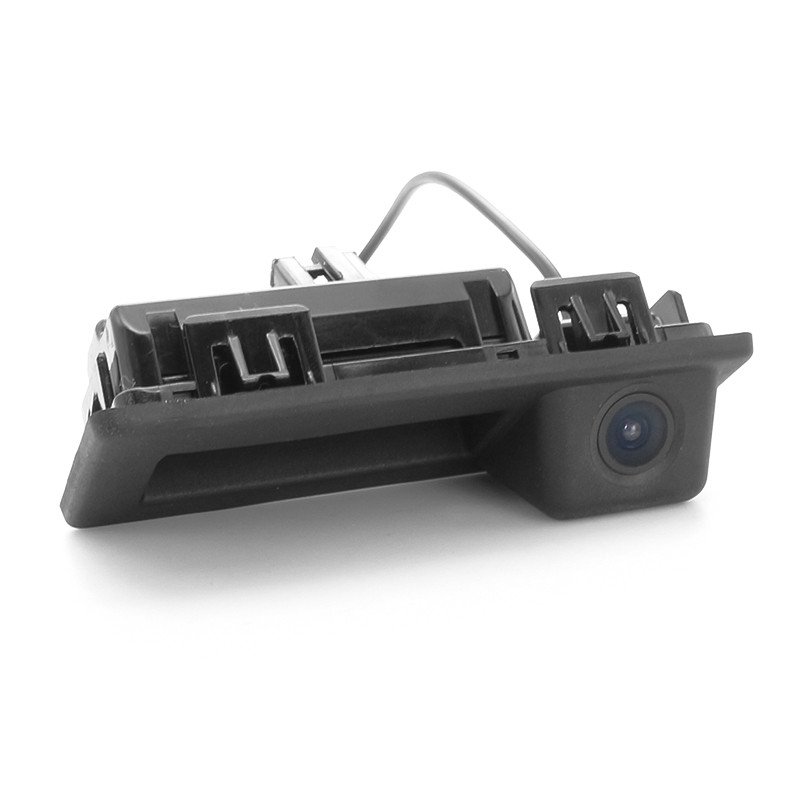

Rearview Camera for Audi, Porsche, Škoda, VW, BC VW-03
Color parking camera installed in the handrail opening the 5th door.
Fit for:
AUDI A3 (8V) (4/2012 and up)
AUDI A4 (B8) (2008 and up)
AUDI A5 Coupe (8T) (6/2007 and up)
AUDI A5 Sportback (8T) (9/2009 and up)
AUDI A6 (2012 and up)
AUDI Q3 (U8) (9/2011 and up)
AUDI Q5 (2007 and up)
PORSCHE Cayenne II. (2010 and up)
ŠKODA Octavia III. combi (2013 and up)
VW Golf V. (10/2003 and up) Variant (combi)
VW Passat B7 (362) (8/2010 and up) sedan
VW Passat B7 (365) (8/2010 and up) Variant (combi)
VW Tiguan (5N) (5/2007 and up)
VW Touran II. (1T3) (2010 and up)
Variants:
1) built-in trajectory
2) without trajectory

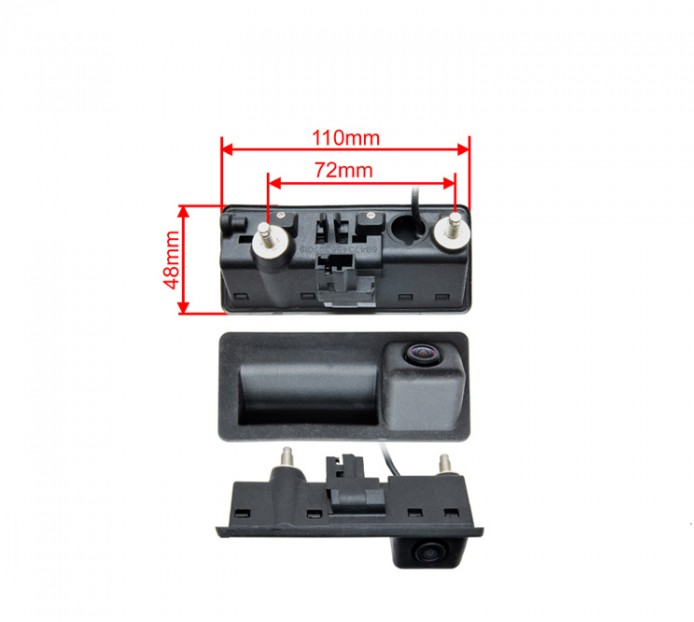

Dimensions:
48 mm x 110 mm
pitch between bolts 72 mm
Technical parameters:
Sensor Sensor: PC3089 1/3 "
enable / disable display of auxiliary trajectories (guides)
Electronic Aperture: 1/60 1/10000 sec.
minimum illumination: 0.1 lux
signal-to-noise ratio:> 48dB
TV system: NTSC
number of TV rows: 600
effective pixels: 668 x 576 pixels
protection against weathering: IP67
sensing angle: 170 °
body of the camera: durable plastics "private housing"
image display: mirror image
white balance: automatically
operating temperature: from -30 ° C to + 70 ° C
AGC, BLC, white balance: automatically
Signal cable: 6.2 m long with CINCH / RCA connector
video output: 1.0V / 75 Ohm
power cable length: 1m
power supply: 12V DC
consumption: <1W
