Complete set to retrofit an original rear view camera for VW Tiguan AD1, AX1
Suitable for vehicles with:
Navigationssystem MIB2 (PR-No.: 7UF, 7UG, 7UT)
Optionsinfotainment MIB3 (PR-No.: 8AR)
Composition Media (PR-No.: I8E or I8F) in conjunction with PR-No.: 9WT or 9S8 or QV3
Integrated camera into the rear grab handle
Showing the rear area on the screen of the navigation
Automatic display switch by rear gear
Much easier orientation due to the guiding lines and fields which are integrated into the video picture and change depending on the steering wheel angle
Two modes are available:
parkingmode 1 (Transverse parking): Useful for parking into a slot which is transverse to the driving direction on for reverse driving into a longer entry
parkingmode 2 (Longitudinal parking): Useful for parking into a slot along the driving direction on a curb
Selectable options:
Version 1
Version 2 (with additional possibility of retrofitting Trailer Assist*)

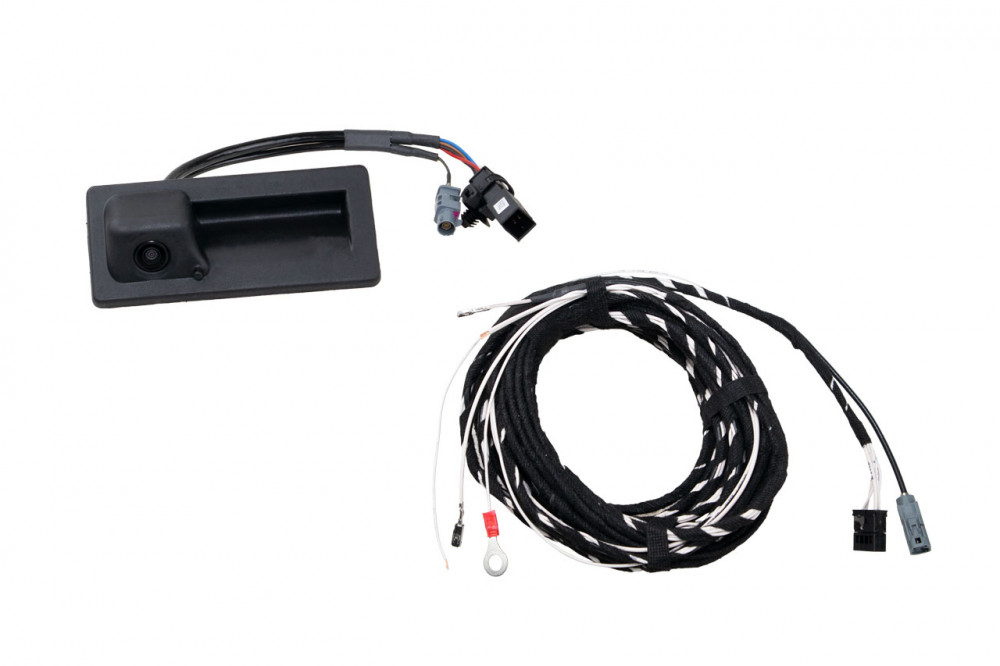

Scope of delivery:
Wiring
Grasp border with integrated camera

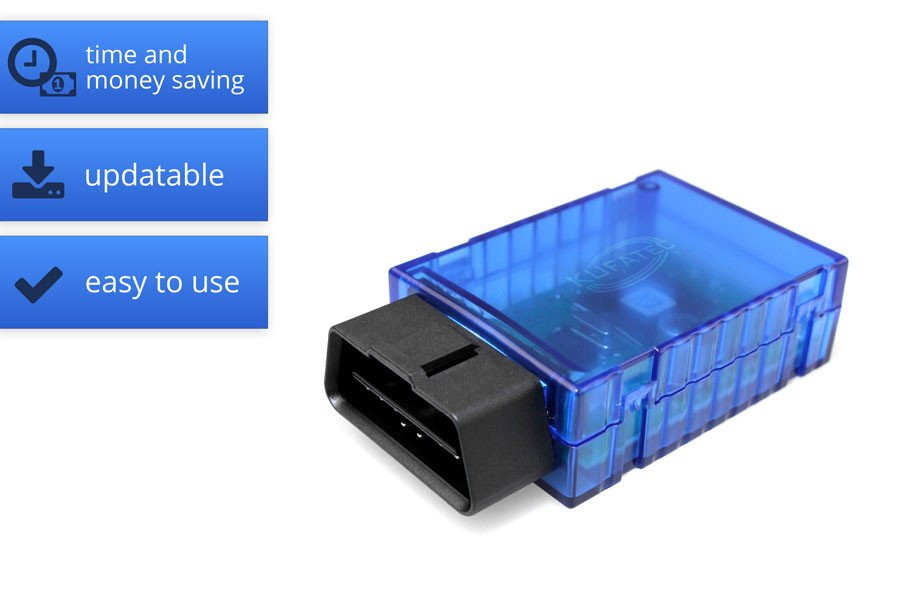

coding dongle
Note:
without navigation, mainunit with part number 3Q0035819X and 3Q0035820X not compatible
the camera has a connection to the cleaning system, if required, also order article 45757
*only in comination with Park Assist, PR No.: 7X5
after installation vehicle coding is required - please use the coding dongle which is included in the scope of delivery
