Complete set to retrofit an original rear view camera for VW Tiguan Allspace BW2/BJ2
Suitable for vehicles with:
Navigation system MIB2 (PR-No.: 7UF, 7UG)
Optionsinfotainment MIB3 (PR-No.: 8AR)
Composition Media (PR-No.: I8F) in conjunction with PR-No.: 9WT or 9S8 or QV3
Integrated camera into the rear grab handle
Showing the rear area on the screen of the navigation
Automatic display switch by rear gear
Much easier orientation due to the guiding lines and fields which are integrated into the video picture and change depending on the steering wheel angle
Two modes are available:
parkingmode 1 (Transverse parking): Useful for parking into a slot which is transverse to the driving direction on for reverse driving into a longer entry
parkingmode 2 (Longitudinal parking): Useful for parking into a slot along the driving direction on a curb
Selectable options:
Version 1
Version 2 (with additional possibility of retrofitting Trailer Assist*)

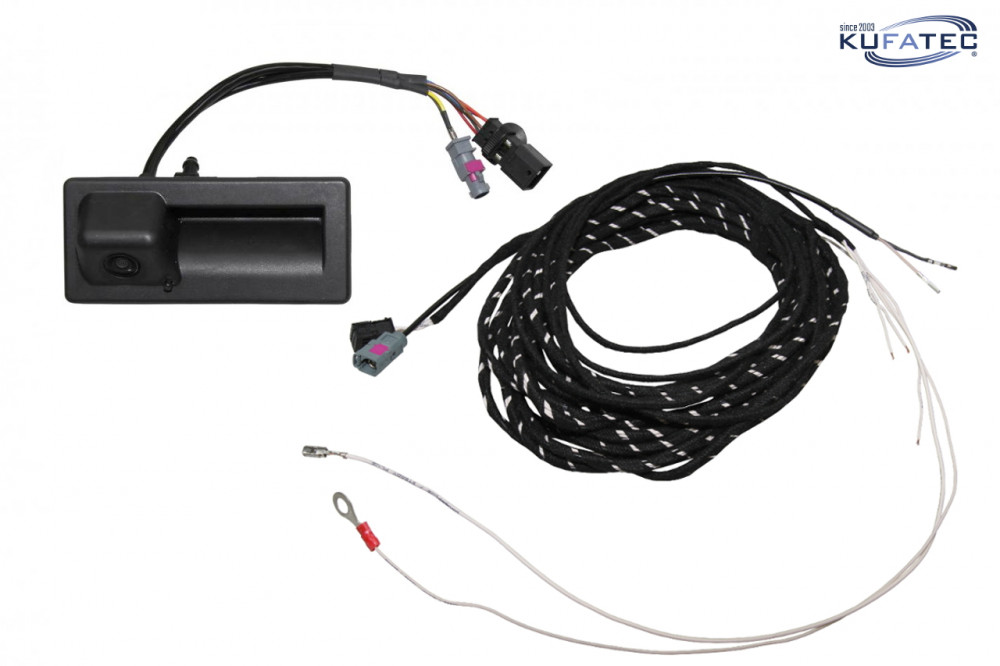

Scope of delivery:
Wiring
Grasp border with integrated camera

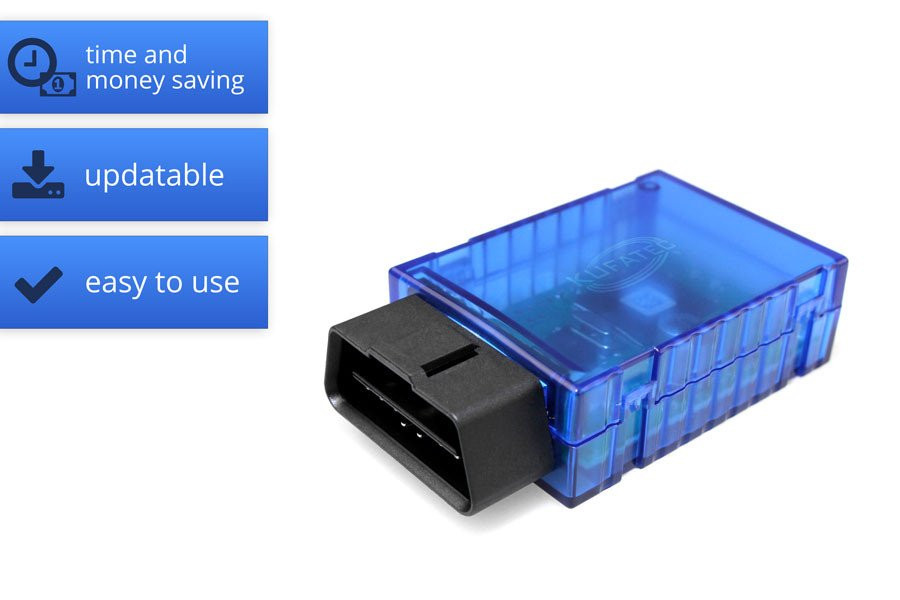

Diagnostic dongle
Note:
The camera has a connection to the cleaning system, if required, also order article 45757
*only in comination with Park Assist, PR No.: 7X5
Additional notices:
If you are unable to complete the commissioning yourself, or if it is an SFD2 vehicle (More information can be found here) for which commissioning is mandatory, we offer an optional one-time remote commissioning service, which can be added via the shopping cart button. This is a one-time service; if coding is lost, for example, due to a software update or other interventions, the commissioning fees will be due again. If no remote diagnostic interface or coding dongle is listed in the scope of delivery of the item, any KUFATEC dongle or our KURDIS KUFATEC remote diagnostic interface article number 70000 is required for commissioning
