Weight: 2kg
Model: DL-06A
High quality metal surface
* day running light, corner light, half brightness function, flash warning light, direction warning function.
Product Festure:
1. Smart computing automatic control program, synchronized with original car system;
2. Build-in decoder, no error indicates;
3. 1w each HP LED, outlay controller, constant current output;
4. IP67 waterproof, can be drawed into water, no worries about torrential rain and high pressure car washing;
5. Aluminium alloy housing with nice heat dissipation, energy saving LED light source, low lumens depreciation.
Function Instruction:
1. Auto turn on/off: CPU detect automaticly, start the engine, DRLs on, turn off the engine, DRLs off delay 20sec.;
2. Synchronized signal turning: when turn on the signal turning lights, DRLs will flicker synchronously;
3. Auto dimming system: when driver turns on headlights, DRLs dims to be about 30% of normal state (with remote control ones without dimming function);
4. High brightness flash: put on the horn button, DRLs strobe;
5. Delay off: engine turned off, DRLs will delay 20sec. off;
6. Lock prompt: open/lock the door, DRLs prompt.
Technical Parameters:
1. Working voltage: 9-32v
2. Power output: 2x6/9w
3. Lumens output: 800/1000lm
4. Color temperature range: 6000K±1000K
5. Water-proof grade: IP67
Packing List:
1. LED lights: 2 pcs
2. Brackets: 2 pcs
3. Wiring harness: 1 set
4. Screws: 4 pcs
5. Cable ties: 4 pcs
6. Quick connectors: 3 pcs

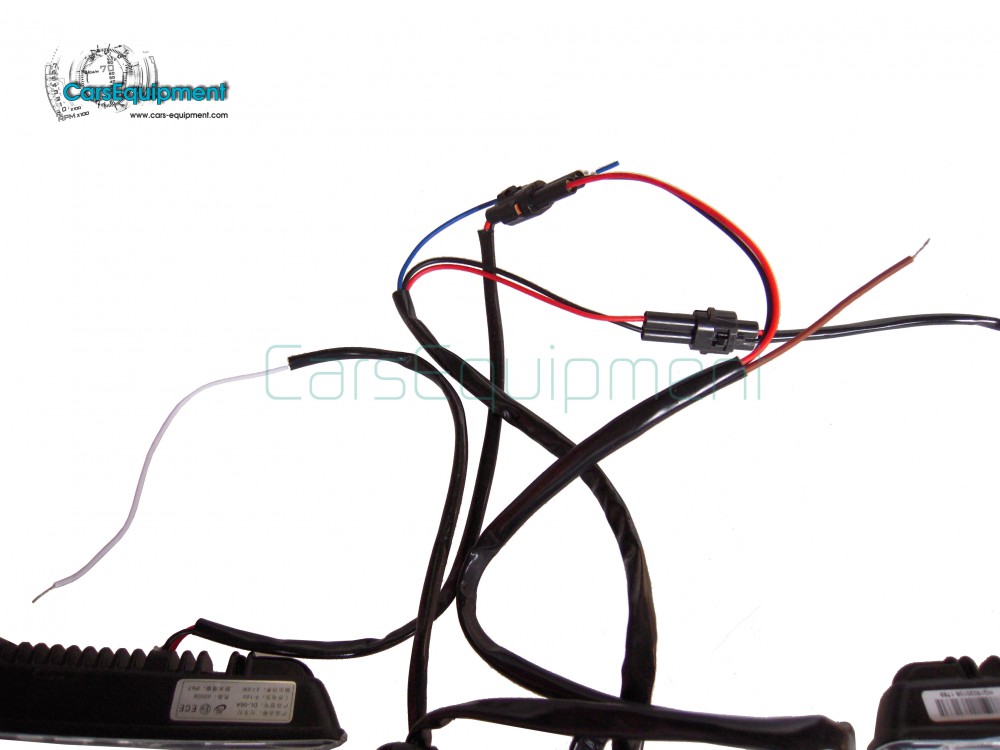

Wire Connection:
Red: battery "+"
Black: battery "-"
Yellow: optional wire (to ACC or switch added)
Orange: horn "+" (if horn triggered by "-", disabled)
White: width lamp "+" (dimming wire, remote contro type without white wire)
Brown: signal turning lamp "+"
Blue: signal turning lamp "+"
