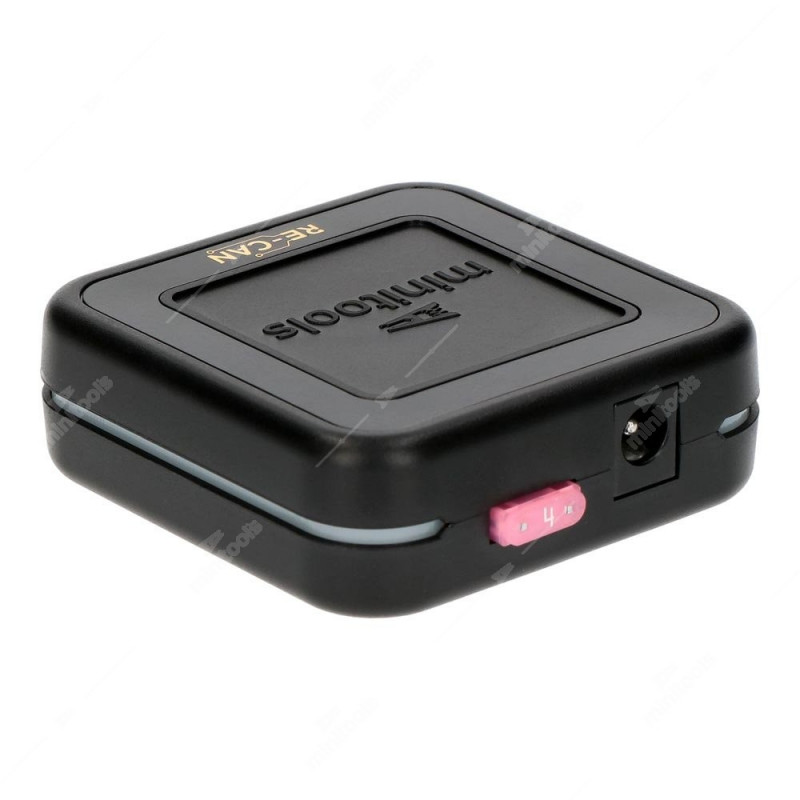

SEP-RE-CAN001I CAN-BUS signals generator for Ford instrument clusters

CAN-BUS signals generator for Ford instrument clusters

OE number: SEP-RE-CAN001I

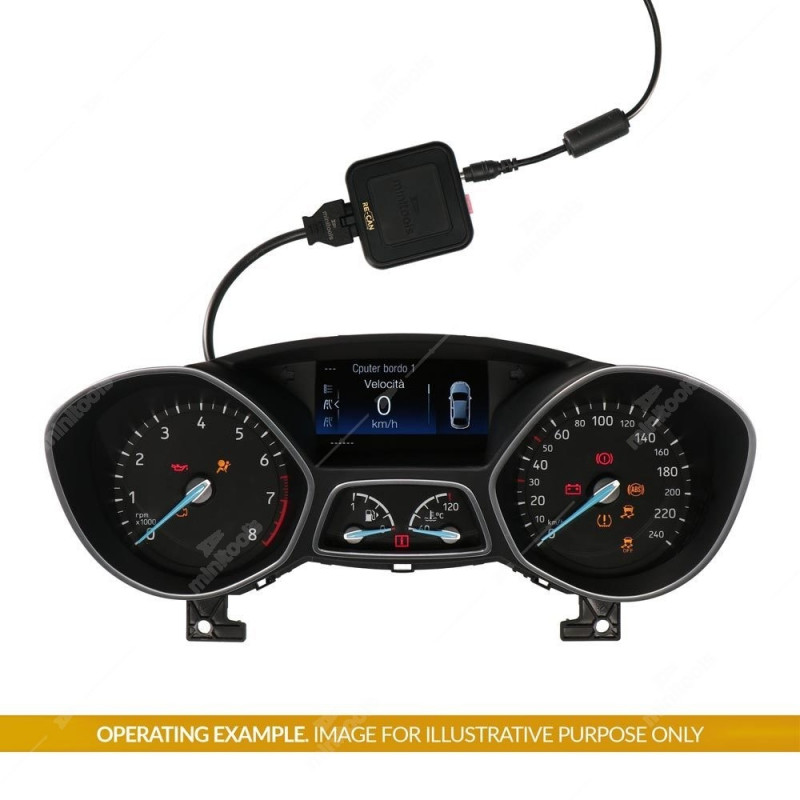

CAN-BUS signals emulator usefeul to swith on directly on the test bench several Ford dashboards, including:

• Ford C-Max Mk2 (models from 2010 to 2019);
• Ford Focus Mk3 (models from 2011 to 2018);
• Ford Grand C-Max Mk2 (models from 2010 to 2019);
• Ford Kuga Mk2 (models from 2012 to 2019)
• Ford Tourneo Mk8 (models from 2013 to 2016);
• Ford Tourneo Connect Mk2 (models from 2013 to 2018);
• Ford Tourneo Custom (models from 2012 to 2016);
• Ford Transit Mk8 (models from 2014 to 2016);
• Ford Transit Connect Mk2 (models from 2013 to 2018);
• Ford Transit Custom (models from 2012 to 2016).

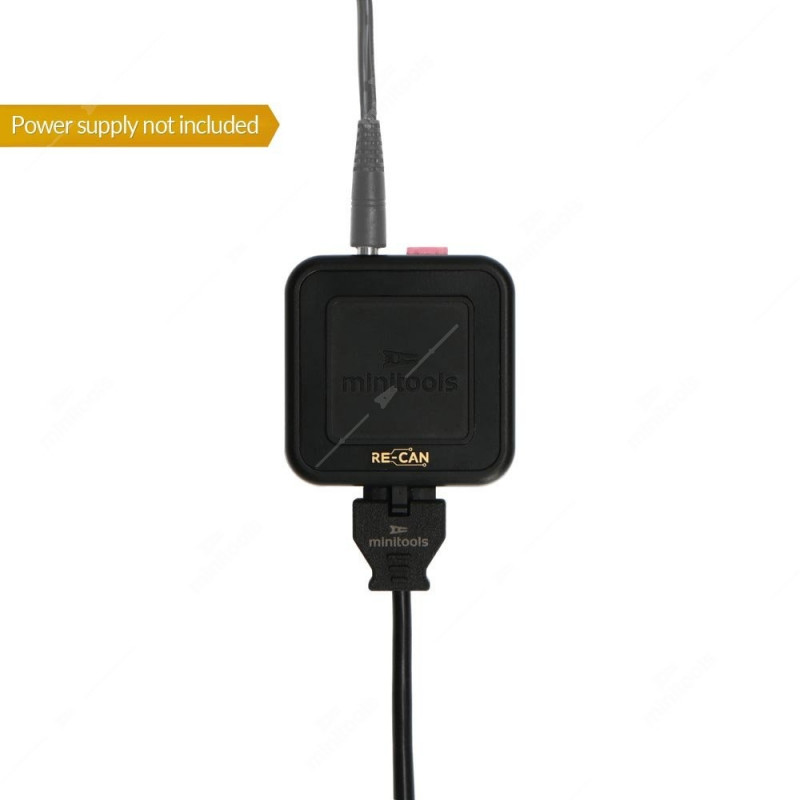

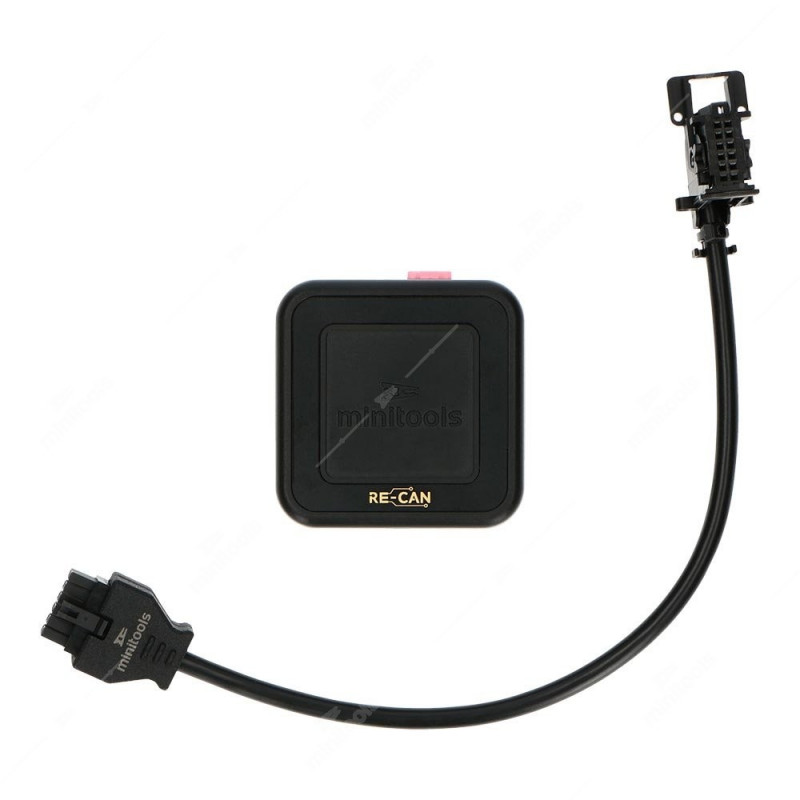

The kit includes: CAN generator and instrument cluster connection cable.

TECHNICAL FEATURES

Power supply voltage: 12VDC ( SEI-12V5A-21  12V 5A power supply unit available separately)

Fuse: 4A

CAN generator dimensions: 60x60x19,5mm

Connection cable length: 280mm

Weight: 64 g
