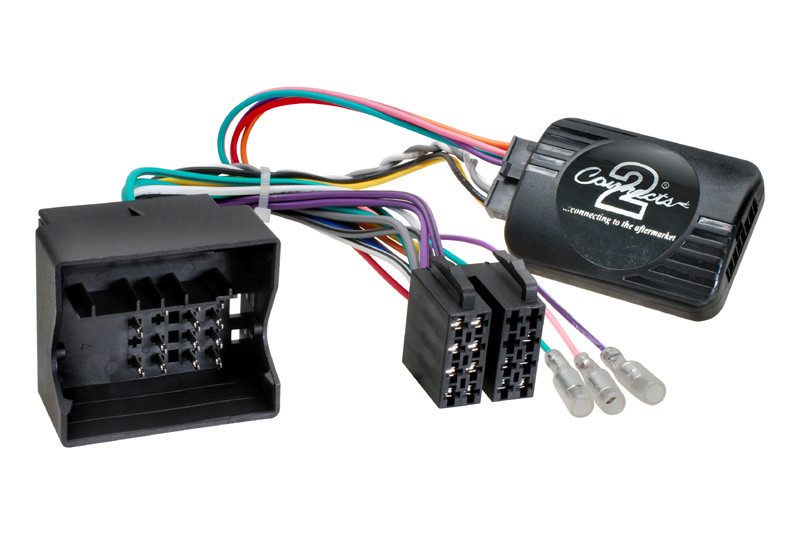

Adapter for control from steering wheel and connect car radios with ISO connector
Suitable for cars:
ŠKODA Fabia II. (2007->)
ŠKODA Rapid [NH] (7 / 2012->)
ŠKODA Roomster (2007->)
ŠKODA Octavia II. (2009->)
ŠKODA Yeti (2009-2014)
Can not be used for ŠKODA Superb II.

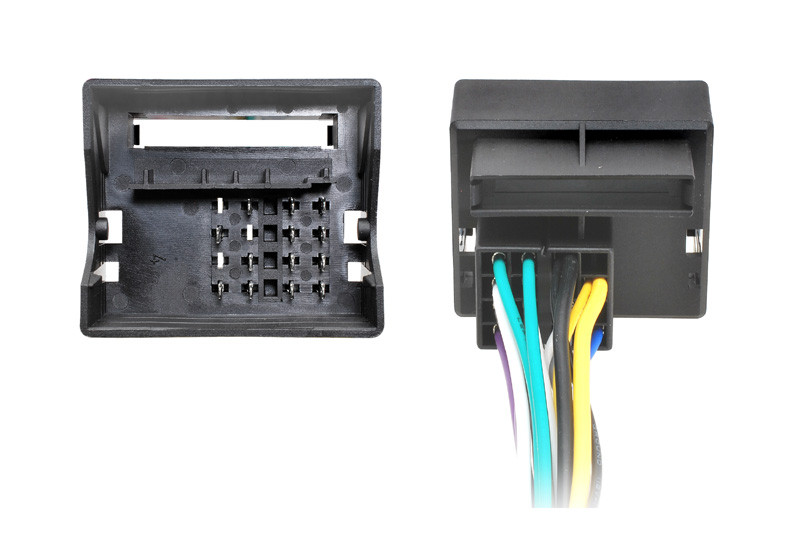

- CAN Bus steering wheel controls + FAKRA connector
- Supports the function buttons on the steering wheel to control Hands free kits built-in navigation system (if supported by the installed car radio or navigation)
- For aftermarket car stereo Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zeneca Becker, Nakamichi, Philips
Must be ordered together with the adapter for the type of car stereo!
Part of adapter cables with analog signals:
- + 12V after turning the ignition key (sv.15) - encased in an ISO connector
- + 12V after switching on the vehicle lighting - encased in an ISO connector
- Speed impulses - free wire
- + 12V after reverse gear - free wire
- Skeleton (- pole) in the handbrake - free wire
this information can be used for the installation of aftermarket car stereos, navigation or surveillance systems.
